FSH FEM4300DM 280kg Double Electromagnetic Lock – Fully Monitored
The FSH FEM4300DM is a fully monitored double electromagnetic lock designed for commercial access control applications where door and lock status feedback is required. Each magnet provides up to 280 kg of holding force, making the FEM4300DM suitable for high-traffic internal and perimeter doors on commercial buildings.
Key Features
- Double electromagnetic lock for paired door leaves.
- Up to 280 kg holding force per magnetic lock.
- Fully monitored with Door Status Sensor (DSS) and Lock Status Sensor (LSS).
- Dual voltage 12 VDC or 24 VDC, field selectable.
- Built-in MOV surge protection for electrical stability.
- No residual magnetism when power is removed.
- Hi-visibility red/green bi-colour LED on monitored versions.
Fire Rated
- Tested on fire door assemblies up to 2 hours in accordance with AS 1905.1:2015.
- Final approval must be confirmed with the fire door manufacturer.

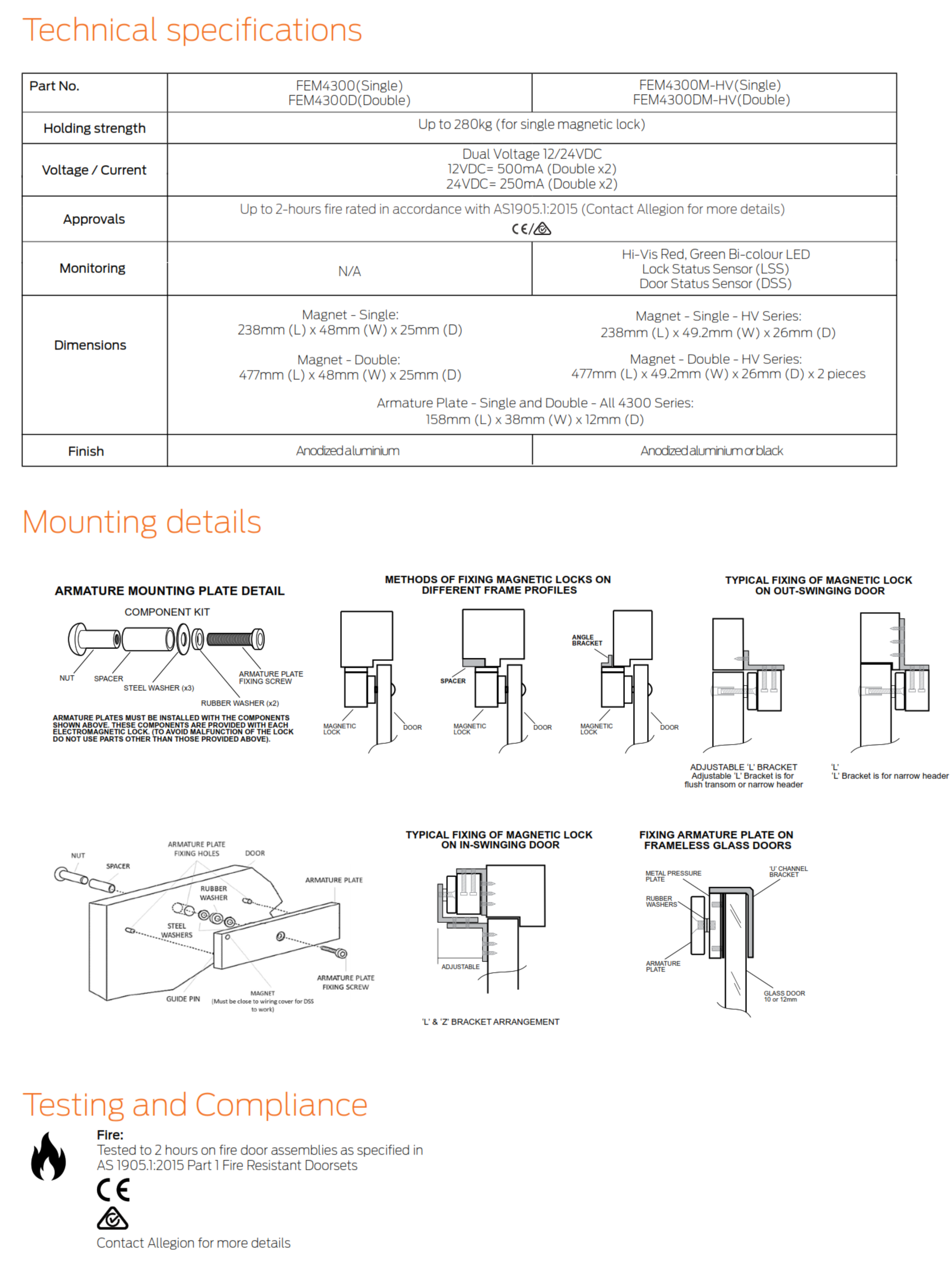

Specifications
Available Colour Variants
-
Black
-
Satin Chrome
Warranty
Covered by the FSH 5 Year Mechanical and Electronic Warranty when installed and used in accordance with FSH and Allegion guidelines.
FSH FEM4300 Series Catalogue
FSH Electric Strikes Overview
FSH 5 Year Warranty
Frequently Asked Questions
Does this maglock suit double doors?
Yes. The FEM4300DM is designed specifically for double door installations.
What does “fully monitored” mean?
The lock provides both door status and lock status feedback to the access control system.
Is there residual magnetism when power is removed?
No. The FEM4300 series is designed with no residual magnetism.
Additional Information
- Correct mounting brackets and armature components must be used to achieve full holding force.
- Monitoring outputs should be tested after installation and commissioning.
- Always confirm fire door approvals with the door manufacturer.
