Dahua Wizmind Series 4mp Bullet Network Camera with 2.8mm Fixed Dual Lens - Full Color Technology - IP67 - White
Key Features
- Dual AI image sensors using multi spectral imaging for enhanced full color performance in low light environments.
- Maximum 4 megapixel resolution up to 2688 x 1520 at 25 or 30 frames per second.
- Built in warm light and infrared illumination with up to 50 metres lighting distance.
- Advanced analytics including perimeter protection, people counting, and face detection.
- Integrated microphone and speaker supporting two way audio communication.
- IP67 rated housing for reliable outdoor installation.
Specifications
- Item Code: DHIPCHFW5449T1ASED2
- Series: Wizmind
- Camera Type: Bullet network camera
- Resolution: 4 megapixels
- Lens: 2.8mm fixed dual lens
- Video Compression: H.264, H.265, Smart H.264+, Smart H.265+
- Audio: Built in microphone and speaker
- Alarm I/O: 1 input, 1 output
- Storage: Micro SD card support up to 256 GB
- Power Supply: 12 V DC or Power over Ethernet
- Ingress Protection: IP67
- Colour: White
What's In The Box
- Dahua Wizmind 4mp dual lens bullet network camera
- Mounting hardware
- Quick start guide
Suitable Uses
- Commercial and industrial perimeter surveillance.
- Retail analytics including people counting and queue management.
- Outdoor areas requiring full color night time imaging.
Dimensions
| Measurement | Size (mm) | Reference (inch) |
|---|---|---|
| Overall length | 204.0 | 8.03" |
| Overall width | 78.0 | 3.07" |
| Overall height | 62.0 | 2.44" |
| Mounting hole spacing (centre to centre) | 65.0 | 2.56" |
| Mounting hole vertical spacing | 42.0 | 1.65" |
| Mounting hole diameter | 4.5 | 0.18" |
Item Code Family
| Item Code | Camera Style | Description |
|---|---|---|
| DHIPCHFW5449T1ASED2 | Bullet | 4mp dual lens bullet network camera with full color technology |
| DHIPCHDW5449HPASED2 | Eyeball | 4mp dual lens eyeball network camera with full color technology |
Download PDF Resources
- Dahua IPC-HFW5449T1-AS-LED Datasheet
- Dahua Bullet Network Camera Quick Start Guide (V1.0.2)
- Dahua Network Camera Web 5.0 Operation Manual (V1.0.4)
Frequently Asked Questions
- Is this camera suitable for outdoor installation?
Yes. The IP67 rating makes it suitable for outdoor environments when installed correctly. - Does this camera support people counting and face detection?
Yes. The camera supports people counting, face detection, and perimeter protection analytics. - Can this camera record audio?
Yes. A built in microphone and speaker support two way audio communication.
Additional Information
- Commonly specified in Australian commercial environments where full color night imaging is required.
- Correct camera positioning and analytics configuration is critical for accurate people counting results.
- On camera Micro SD storage should be treated as redundancy rather than primary recording.

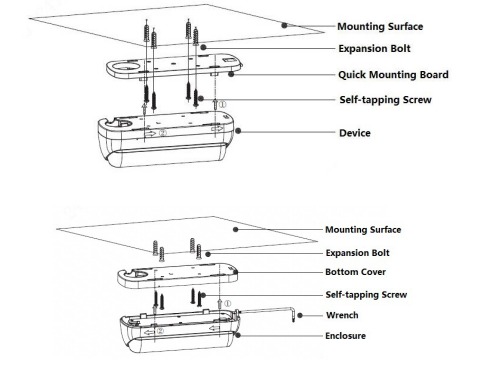

Technical Drawing
.
