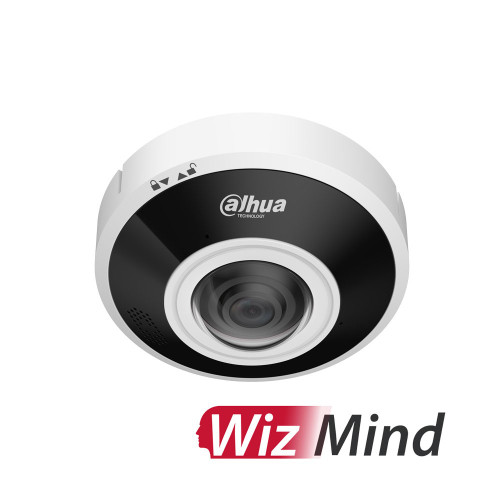

Dahua WizMind Series 12MP 360-Degree Fisheye Network Camera with 1.85mm Fixed Lens – IP67 & IK10 – White
The Dahua WizMind Series 12 megapixel fisheye network camera delivers full 360-degree coverage from a single mounting point. It is designed for environments requiring people counting, heat mapping, and intelligent analytics without blind spots, both indoors and outdoors.
Key Features
- 12 megapixel fisheye camera providing full 360-degree field of view
- Fixed 1.85 mm lens optimised for wide area monitoring
- Built-in infrared illumination with up to 10 m night coverage
- Advanced WizMind analytics including people counting and heat map analysis
- Perimeter protection and intelligent event detection
- Smart H.264+ and Smart H.265+ compression support
- IP67 weather protection and IK10 vandal resistance
- Power over Ethernet Plus for simplified installation
Specifications
- Item Code: EBW81242PASS2
- Camera Resolution: 12 megapixels
- Lens Type: Fixed focal
- Lens: 1.85 mm
- Maximum Frame Rate: 25 frames per second at 12 megapixels
- Video Compression: H.264, H.265, Smart H.264+, Smart H.265+
- Infrared Illumination: Up to 10 m
- Ingress Protection: IP67
- Impact Rating: IK10
- Audio: Built-in microphone and speaker
- Storage: Supports Micro Secure Digital card up to 256 GB
- Power Supply: 12 volt direct current or Power over Ethernet Plus (IEEE 802.3at)
- Finish: White
What’s In The Box
- 12MP fisheye network camera
- Mounting hardware
- Installation template
- Quick start guide
Suitable Uses
- Retail stores and shopping centres
- Transport hubs and public spaces
- Office lobbies and reception areas
- Warehouses and logistics facilities
Dimensions
| Diameter | 149.8 mm |
| Height | 59.8 mm |
PDF Resources
Technical Drawing
