Dahua Wall Mount Bracket DHPFB211W
The Dahua DHPFB211W is an aluminium alloy wall mount bracket designed for selected Dahua CCTV cameras, providing a clean installation and reliable load support.
Key Features
- Aluminium alloy construction.
- Matched with selected Dahua cameras.
- Clean and integrated wall mount design.
Specifications
- Item Code: DHPFB211W
- Model: DH-PFB211W
- Material: Aluminium alloy
- Finish: White
- Load Bearing: 3.0 kg
- Operating Temperature: -40 °C to 60 °C
- Humidity: 0 to 90 percent relative humidity
Suitable Uses
- Wall mounting compatible Dahua CCTV cameras.
- Residential and commercial surveillance installations.
- Applications requiring a medium load capacity bracket.
What's In The Box
- Wall mount bracket
Dimensions
| Width | 235.4 mm |
| Height | 180.3 mm |
| Depth | 84.2 mm |
| Weight | 0.97 kg |
Wall Mount Brackets – Item Code Family
| Item Code | Finish | Description |
|---|---|---|
| DHPFB211W | White | Aluminium wall mount bracket, 3 kg load rating. |
| DHPFB206W | White | Heavy duty wall mount bracket. |
| DHPFB205W | White | Standard wall mount bracket. |
| PFB205WEB | Black | Wall mount bracket. |

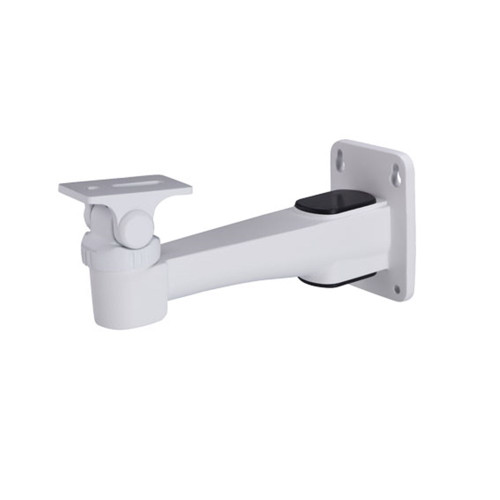

| DHPFB121W | White | Compact wall mount bracket. |
| DHPFB305W | White | Wall mount with safety hook. |

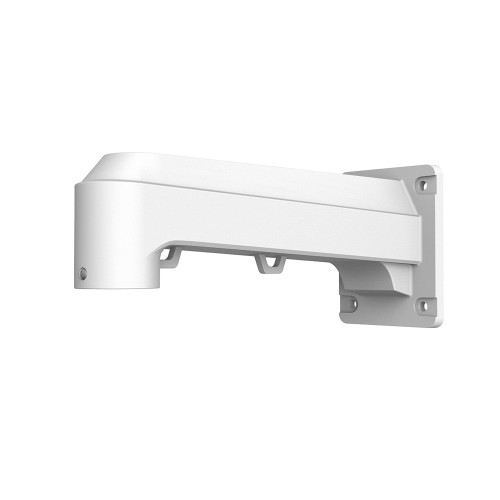

| DHPFB710WSG | Stainless Steel | Stainless steel wall mount. |
| DHPFB731W | White | Corrosion resistant wall mount. |
PDF Resources
Dahua Camera Accessories Selection Chart
Frequently Asked Questions
- Is this bracket suitable for outdoor use?
Yes, when installed within the specified temperature and humidity limits. - Does this suit all Dahua cameras?
No, compatibility must be confirmed using the accessory selection chart.
Additional Information
- Bracket selection should consider camera weight and wall structure.
- Professional installation is recommended for optimal performance.
