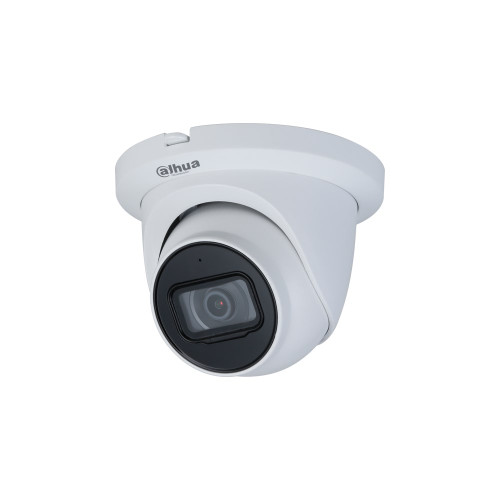

Dahua Lite Series 5MP Eyeball Network Camera with 2.8mm Fixed Lens - IP67 - White
The DHIPCHDW2541EMPASANZ is a 5 megapixel IP eyeball network camera from the Dahua Lite Series, built for everyday commercial and residential surveillance. It uses modern compression, integrated infrared for night viewing, and an IP67 rated housing for exposed outdoor mounting when installed correctly.
Key Features
- 5 megapixel 1/2.7 inch Complementary Metal Oxide Semiconductor image sensor for high definition video.
- Outputs up to 5 megapixel (2960 x 1668) at 20 frames per second.
- H.265 compression for reduced bandwidth and storage requirements.
- Built in infrared illumination with up to 30m night viewing range.
- Region of Interest and Smart H.264 Plus and Smart H.265 Plus for efficient encoding options.
- Rotation mode, Wide Dynamic Range, three dimensional noise reduction, Highlight Compensation and Backlight Compensation for challenging lighting.
- Intelligent monitoring including intrusion and tripwire with human and vehicle classification.
- Event and status alerts including motion detection, video tampering, audio detection, Secure Digital card events, network disconnection, Internet Protocol conflict, illegal access and voltage detection.
- Supports up to 256 gigabyte Micro Secure Digital card storage.
- Built in microphone for audio capture on compatible recording systems.
- 12 volt Direct Current or Power Over Ethernet supply options.
- IP67 rated housing for outdoor installations.
- Smart Motion Detection Plus support.
Specifications
- Item Code: DHIPCHDW2541EMPASANZ
- Series: Lite
- Camera Type: IP Eyeball
- Camera Resolution: 5 Megapixel
- Lens Type: Fixed focal
- Lens: 2.8mm
- Compression: H.265
- Infrared Range: Up to 30m
- Onboard Storage: Up to 256GB Micro Secure Digital card
- Audio: Built in microphone
- Power: 12V Direct Current or Power Over Ethernet
- Ingress Protection: IP67
- Finish: White
Dimensions
| Overall Diameter | Mounting Diameter | Overall Height |
| 121.9 mm | 84.0 mm | 99.1 mm |
Item Code Family
What's In The Box
- 1 x Dahua 5MP IP eyeball network camera (2.8mm fixed lens)
Download PDF Resources
Frequently Asked Questions
- Does this camera record without an NVR?
It can record to a Micro Secure Digital card (up to 256GB) when configured, but many sites use a Network Video Recorder for central recording and management. - Can this be powered by a network switch?
Yes, if your switch supports Power Over Ethernet. Otherwise it can be powered by 12V Direct Current. - Is this suitable for outdoor installation?
Yes. The IP67 rating supports outdoor use, but the cable entry and seals must be installed correctly to maintain weather protection.
Additional Information
- For cleaner installs, many installers use a junction box to protect terminations and improve long term cable reliability.
- Wide Dynamic Range helps when scenes contain both bright sunlight and shaded areas, but correct positioning is still important.
- When using Micro Secure Digital recording, choose a suitable endurance card and confirm overwrite settings are enabled.
Technical Drawing
