Dahua Junction Box Suits Hdwxxem - Hdbwxxf Series

Dahua Junction Box Suits Hdwxxem - Hdbwxxf Series

Dahua

$32.12
(No reviews yet) Write a Review
SKU:
STK DHPFA139
UPC:
6939554903557
Availability:
Usually same day dispatch (if ordered before 11am)
Adding to cart… The item has been added
Dahua logo

Dahua Junction Box Suits HDWXXEM and HDBWXXF Series

The Dahua DHPFA139 is a compact aluminium junction box designed for surface-mounted Dahua cameras. It provides a neat enclosure for cable terminations and conduit entry, supporting clean and serviceable CCTV installations.

Key features icon Key Features

  • Compact aluminium junction box for surface-mounted cameras.
  • Provides protected internal space for cable connections.
  • M20 conduit entry for standard electrical fittings.
  • Low-profile design to minimise visual impact.
  • Designed to suit selected Dahua HDWXXEM and HDBWXXF series cameras.

Specifications icon Specifications

  • Item Code: DHPFA139
  • Manufacturer Model: PFA139
  • Material: Aluminium
  • Colour: White
  • Dimensions: 108.0 mm x 28.5 mm (diameter x height)
  • Thread Type: M20 (G1/2 inch)
  • Operating Temperature: -40 degrees Celsius to 60 degrees Celsius
  • Humidity: 0 to 90 percent relative humidity
  • Maximum Load Bearing: 1.0 kg
  • Net Weight: 0.16 kg

Contents icon What’s In The Box

  • 1 x Aluminium junction box body (PFA139)
  • 1 x Junction box cover plate
  • Mounting screws for junction box assembly

Suitable uses icon Suitable Uses

  • Commercial CCTV installations.
  • Surface-mounted dome or turret cameras.
  • Installations requiring compact junction boxes with M20 conduit entry.

Item code list icon Dahua Junction Box Item Code Family

Item Code Mechanical Difference Notes
DHPFA139 108 mm diameter, M20 thread This product
DHPFA137 122 mm diameter, M20 thread Larger base diameter
DHPFA136 111.5 mm diameter, M20 thread Alternate base size

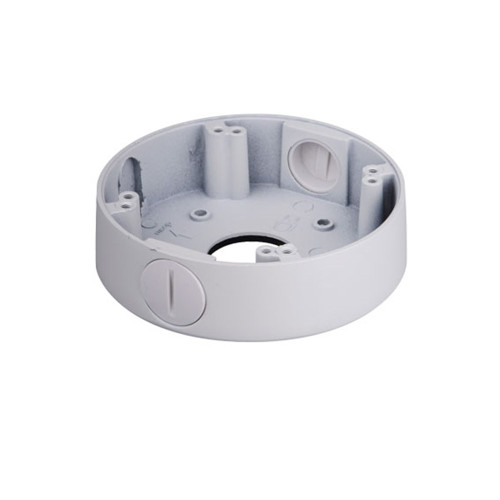

DHPFA13B 122.2 mm diameter, G3/4 inch thread Different conduit thread
DHPFA138 161 mm diameter, G3/4 inch thread Higher load-bearing option
DHPFA122 Square format, IP66 rated Sealed enclosure option
DHPFA130E 124 mm diameter, IP66 rated Weather-resistant model
DHPFA130EB 124 mm diameter, IP66 rated Black finish variant of PFA130E
DHPFA135 90 mm diameter, M20 thread Compact option for smaller cameras
DHPFA139BLK 108 mm diameter, M20 thread Black finish variant of PFA139

PDF icon Download PDF Resources

FAQ icon Frequently Asked Questions

  • Is this junction box weatherproof?
    The manufacturer does not specify an ingress protection rating for the DHPFA139. Environmental protection depends on the installed camera and sealing method.
  • Does this include camera mounting hardware?
    The junction box body and its fixings are supplied. Camera mounting screws are typically supplied with the camera.
  • How do I confirm camera compatibility?
    Compatibility should be confirmed using the Dahua Camera Accessories Selection Chart.

Additional information icon Additional Information

  • Commonly specified in Australian commercial CCTV installations where space behind the camera is limited.
  • The compact diameter makes this junction box suitable for smaller dome and turret camera bases.
  • Installers should verify camera base diameter and conduit thread requirements prior to installation.
!
