Dahua Junction Box Suits HDBWXXR-Vf Series

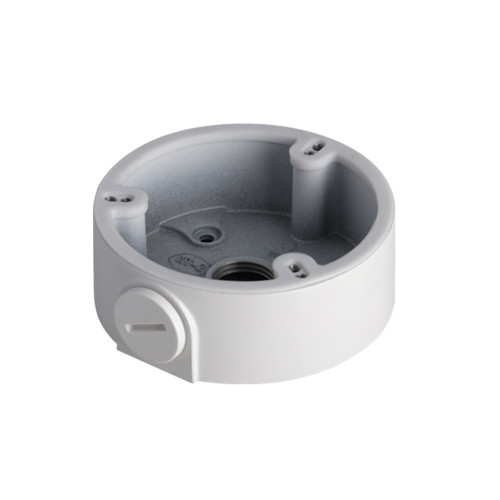

The Dahua DHPFA13B is a compact aluminium junction box designed to provide a neat cable termination and mounting interface for compatible Dahua cameras. It is commonly used where conduit entry and clean surface mounting are required.
Key Features
- Integrated aluminium junction box for surface-mounted camera installations.
- Provides protected space for cable connections.
- Designed to suit selected Dahua HDBWXXR-Vf series cameras.
- G3/4 inch threaded conduit entry.
- Compact form factor for low-visual-impact installations.
Specifications
- Item Code: DHPFA13B
- Manufacturer Model: PFA13B
- Material: Aluminium
- Colour: White
- Dimensions: 122.2 mm x 33.5 mm (diameter x height)
- Thread Type: G3/4 inch
- Operating Temperature: -40 degrees Celsius to 60 degrees Celsius
- Humidity: 0 to 90 percent relative humidity
- Maximum Load Bearing: 1.0 kg
- Net Weight: 0.23 kg
Suitable Uses
- Commercial and industrial CCTV installations.
- Situations requiring surface-mounted cameras with concealed cabling.
- Indoor or sheltered outdoor installations when used with compatible cameras.
Dahua Junction Box Item Code Family
Download PDF Resources
Frequently Asked Questions
- Is this junction box weatherproof?
The manufacturer does not publish an ingress protection rating for the DHPFA13B. Weather resistance depends on the installed camera and sealing method. - Does this junction box include mounting hardware?
The junction box body is supplied. Camera-specific fixings are typically provided with the camera. - How do I confirm camera compatibility?
Refer to the Dahua Camera Accessories Selection Chart to confirm supported camera models.
Additional Information
- Commonly specified in Australian commercial CCTV installations for dome cameras requiring surface conduit entry.
- Installers often pair this junction box with flexible conduit to simplify future servicing.
- Care should be taken to confirm thread size and camera base diameter before ordering.
