Dahua IP Video Apartment Intercom Door Station with 4.3inch LCD Screen and 2MP Camera – IP65 – Silver
The Dahua VTO6521F is a networked apartment intercom door station featuring a 4.3inch IPS display, a 2MP wide dynamic range camera, multiple unlock methods, and flexible power options. It is designed for residential and commercial access systems requiring clear audio and visual visitor interaction.
Key Features
- 4.3inch IPS colour display with 800×480 resolution
- 2MP CMOS camera with true wide dynamic range
- Supports IC card and password unlock modes
- Full duplex audio with noise reduction and echo suppression
- Integrated SIP and network protocols for system integration
- Power over Ethernet (PoE) or 12V DC supplied
- IP65 weather protection and IK07 impact resistance
Specifications
- Item Code: VTO6521F
- Camera: 1/2.7″ 2MP CMOS
- Lens: 2.8 mm
- Screen: 4.3″ IPS LCD; 800×480 resolution
- Network: 1×RJ45 10/100 Mbps
- Audio: Full duplex; G.711u compression
- Card Type: Mifare IC
- Card Capacity: Up to 10,000
- User Capacity: Up to 20,000
- Interfaces: RS-485; Wiegand input/output; alarm input/output
- Power Supply: PoE or 12V DC 2A
- Ingress Protection: IP65
- Impact Rating: IK07
- Operating Temp: −30°C to 60°C
- Operating Humidity: 10%RH–90%RH (non-condensing)
What's In The Box
- Dahua VTO6521F door station
- Mounting hardware
- Installation guide
Suitable Uses
- Apartment buildings and residential complexes
- Commercial properties with SIP intercom systems
- Properties requiring card and password access methods
Dimensions
| Height | Width | Depth |
|---|---|---|
| 389 mm | 145 mm | 41.9 mm |
Dahua Apartment Door Station – Item Code Family
| Item Code | Screen Size | Key Access Method |
|---|---|---|
| VTO6521F | 4.3 inch | Password & Card |
| VTO6221EP | — | Password & Card |

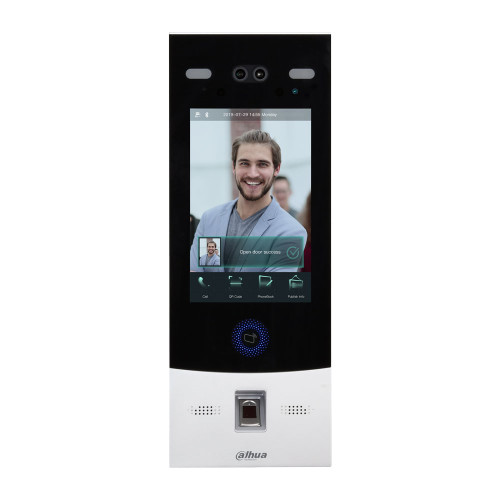

| DHIVTO7541G | 8 inch | Facial, Fingerprint & Card |
Frequently Asked Questions
- Can this unit be powered via PoE?
Yes. Power over Ethernet is supported via the RJ45 connection. - Does this model support SIP?
Yes. SIP server integration and management platform support are included. - Is this suitable for outdoor use?
Yes, when installed with correct sealing as per datasheet guidance.
Additional Information
- This model is commonly specified in SIP-compatible intercom installations for residential properties.
- Correct IP65 sealing during installation ensures weather protection longevity.
- Integration with Dahua management platforms enables remote call and configuration features.
Technical Drawing
