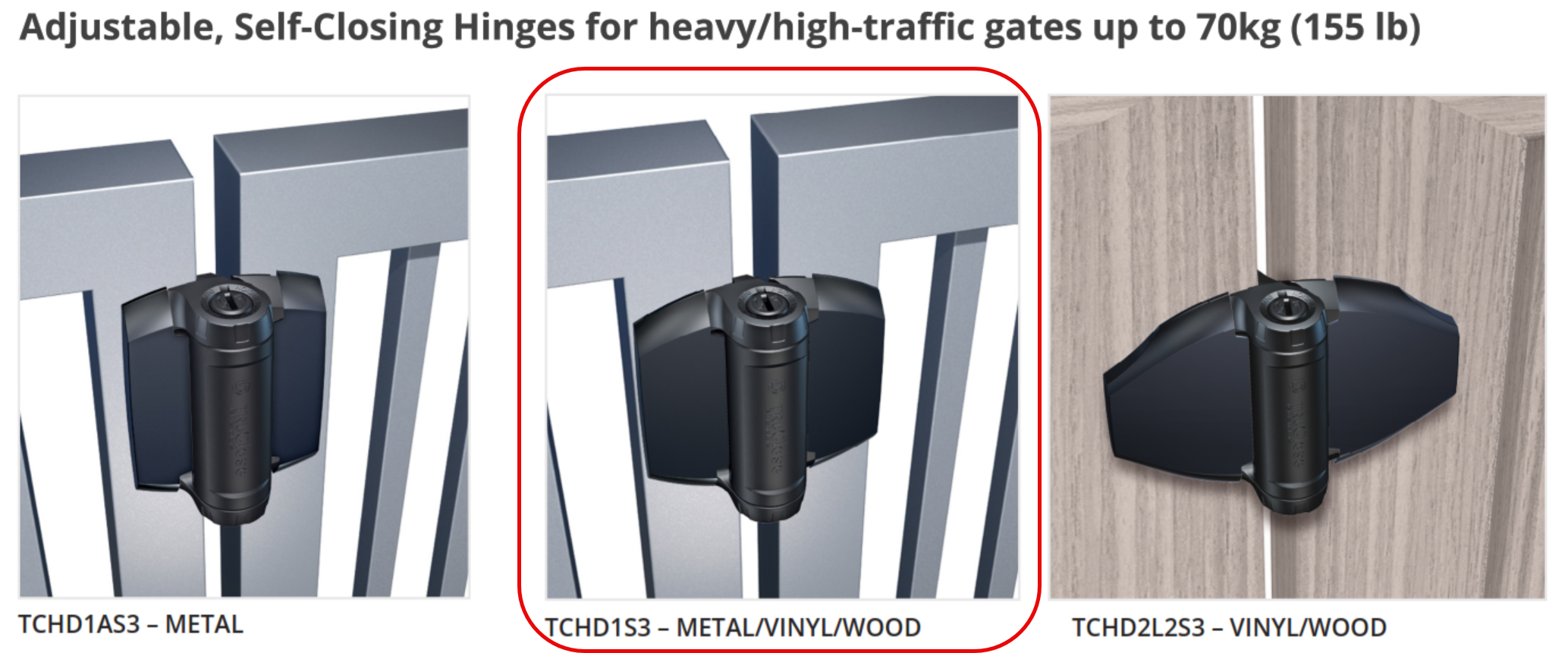

D&D TruClose Heavy Duty Gate Hinge Closer – Pair
The D&D TruClose Heavy Duty Gate Hinge Closer is a self-closing, tension-adjustable hinge system designed for high-traffic metal gates. Supplied as a matched pair, it provides controlled closing for gates weighing up to 70 kg without binding, sagging, or staining.
Key Features
- Heavy duty self-closing hinge system for metal gates.
- Tension adjustable closing force.
- Designed for gates up to 70 kg.
- Stainless steel torsion spring.
- Concealed fixing design for clean installation.
- Supplied as a matched pair.
Specifications
.
Suitable Uses
- High-traffic residential metal gates.
- Garden and perimeter gates requiring strong self-closing action.
- Applications where adjustable closing force is required.

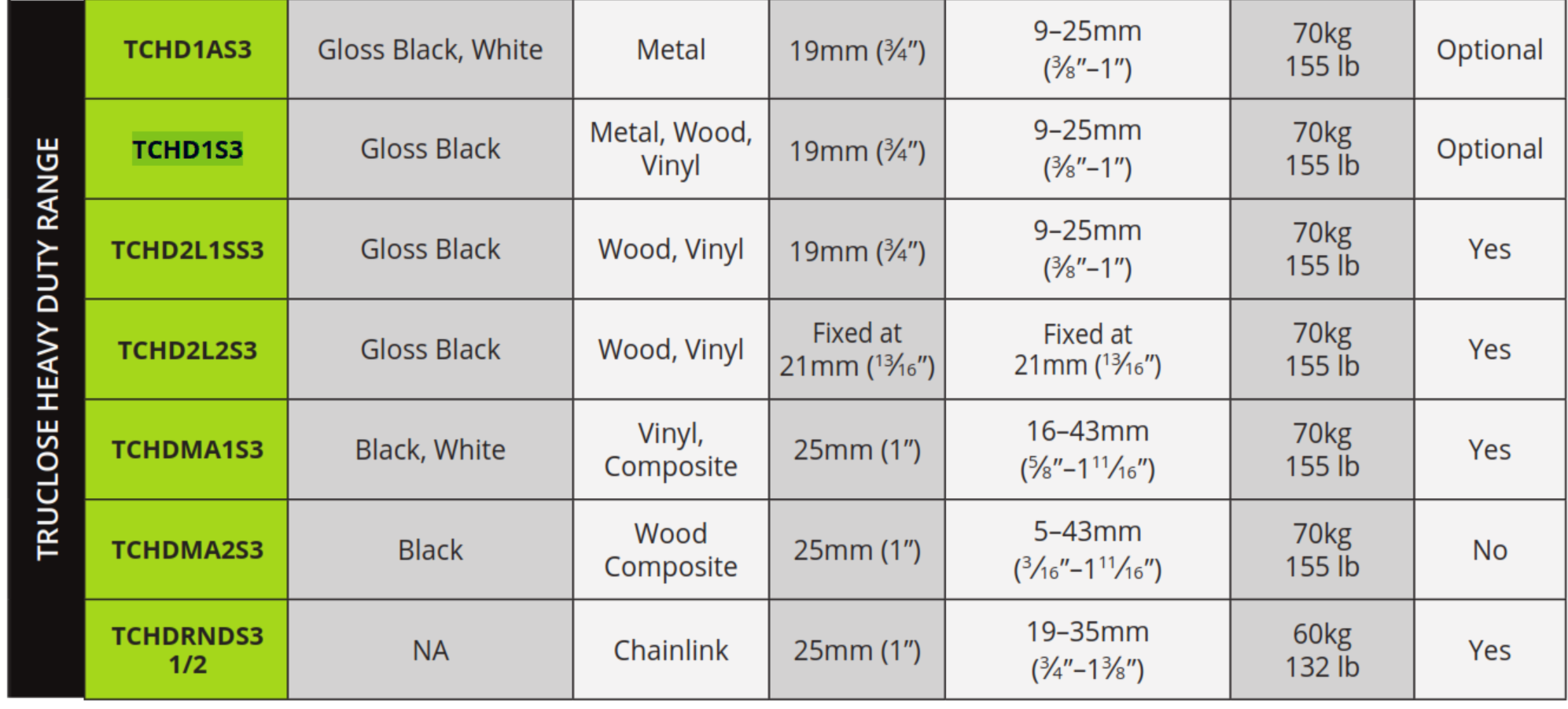

Item Code Family
.
Download PDF Resources
Frequently Asked Questions
Is this hinge suitable for pool safety gates?
This hinge is self-closing but is not a hydraulic safety hinge. Always confirm local pool safety requirements before use.
Is this supplied as a pair?
Yes. The hinges are supplied as a matched pair.
Can the closing force be adjusted?
Yes. The closing tension can be adjusted from either end of the hinge.
Additional Information
- Optional hinge safety cap is available to prevent children using the lower hinge as a foothold.
- Gate weight and construction must be considered when selecting hinge capacity.
- Professional installation is recommended for heavy or high-traffic gates.
