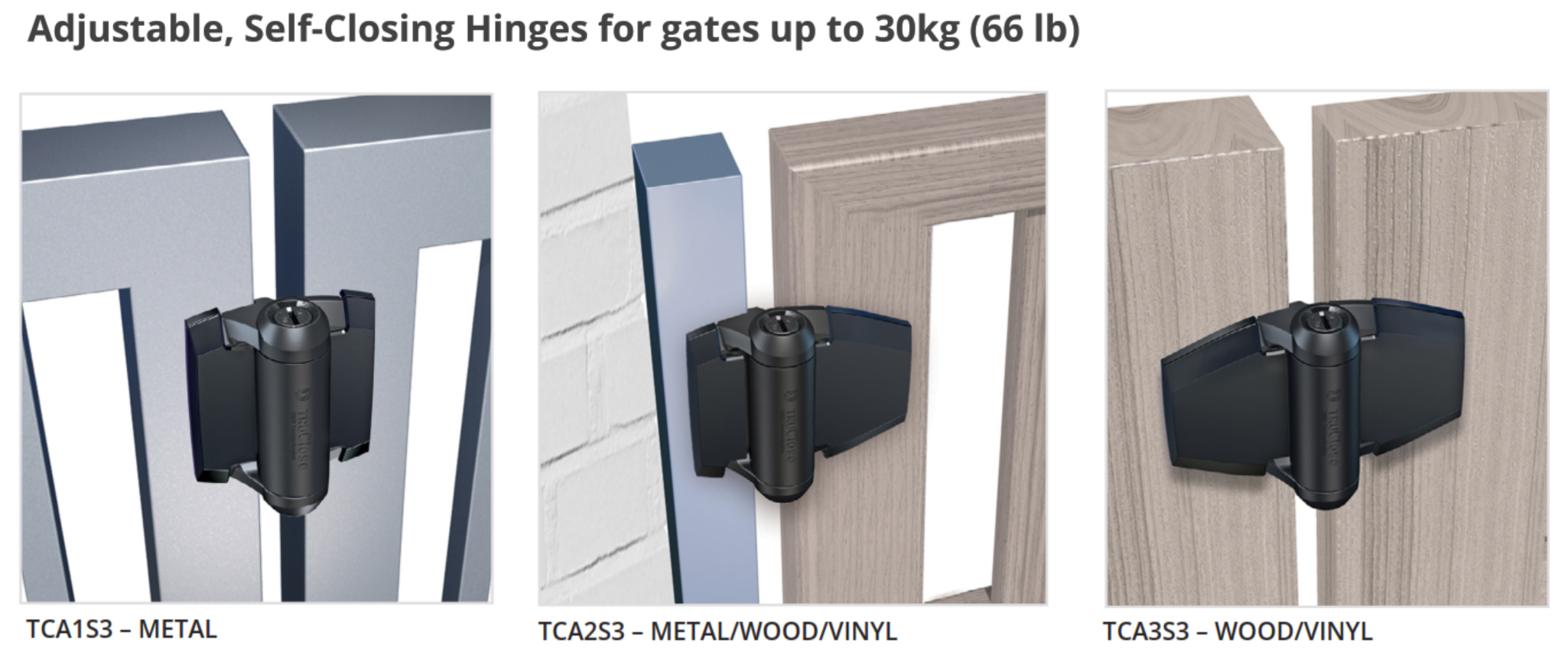

D&D TruClose Gate Hinge Closer – Up to 30 kg (Pair)
The D&D TruClose Gate Hinge Closer is a tension-adjustable, self-closing hinge system designed for light to mid-weight gates up to 30 kg. Supplied as a matched pair, it provides controlled closing without binding, sagging, or staining and is suitable for residential gate installations across a range of gate materials.
Key Features
- Self-closing gate hinge system with adjustable closing tension.
- Supplied as a pair for balanced gate operation.
- Stainless steel torsion spring for durability.
- Non-binding design prevents sagging and staining.
- Designed for gates up to 30 kg.
Specifications
Suitable Uses
- Residential garden and yard gates.
- Light to mid-weight metal, timber, or vinyl gates.
- Applications where adjustable self-closing is required.

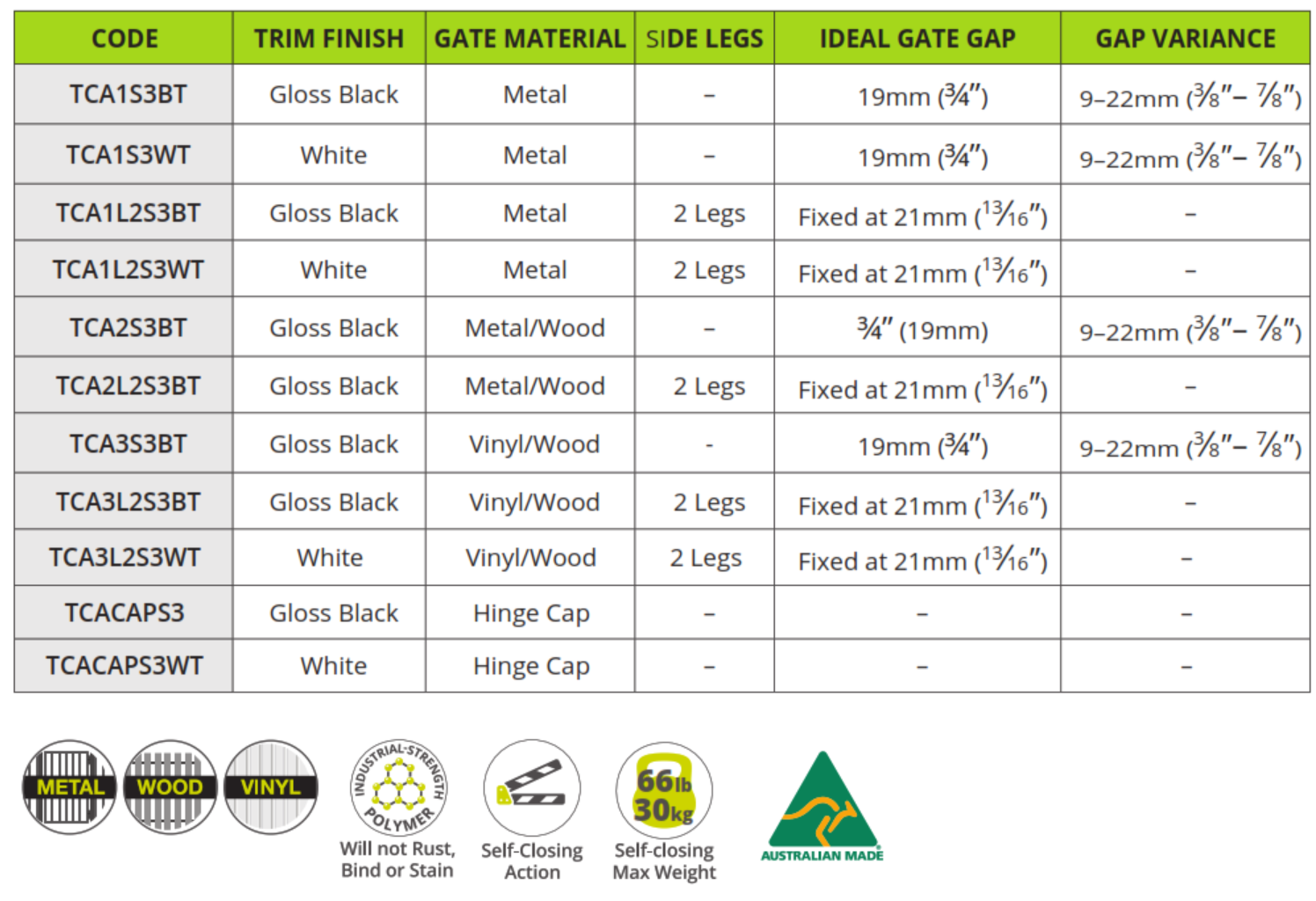

Available Variants
Special Order Items
Item codes 55320003 and 55320004 are supplied to order. Lead times may vary.
Item codes 55320003 and 55320004 are supplied to order. Lead times may vary.
Item Code Family
Download PDF Resources
Frequently Asked Questions
Are these hinges suitable for pool safety gates?
These hinges are self-closing but are not hydraulic safety hinges. Always confirm local compliance requirements for pool gates.
Why are some variants special order?
Certain material-specific configurations are supplied to order due to lower demand.
Is this supplied as a pair?
Yes. All TruClose hinge closers in this range are supplied as a matched pair.
Additional Information
- Item codes 55320003 and 55320004 are supplied as special order items.
- Gate weight and construction must be considered when selecting hinge variants.
- Professional installation is recommended for optimal performance.
