D&D Sureclose Flush Mount Gate Hinge Closer with Safety Feature For Aluminium Pool Gates Screw Fix - 57 AT90SF S 75057223M - Black
D&D Sureclose Flush Mount Gate Hinge Closer with Safety Feature For Aluminium Pool Gates Screw Fix - 57 AT90SF S 75057223M - Black

D&D Sureclose Flush Mount Gate Hinge Closer with Safety Feature For Aluminium Pool Gates Screw Fix - 57 AT90SF S 75057223M - Black

D & D Technologies

$456.17
(No reviews yet) Write a Review
SKU:
STK 75057223M
UPC:
4452264997181
Availability:
Special Order (call for estimated dispatch times)
Adding to cart… The item has been added
D & D Technologies logo

D&D SureClose Flush Mount Gate Hinge Closer – Pool Safety

Special Order Item
This product is supplied to order. Lead times may vary.

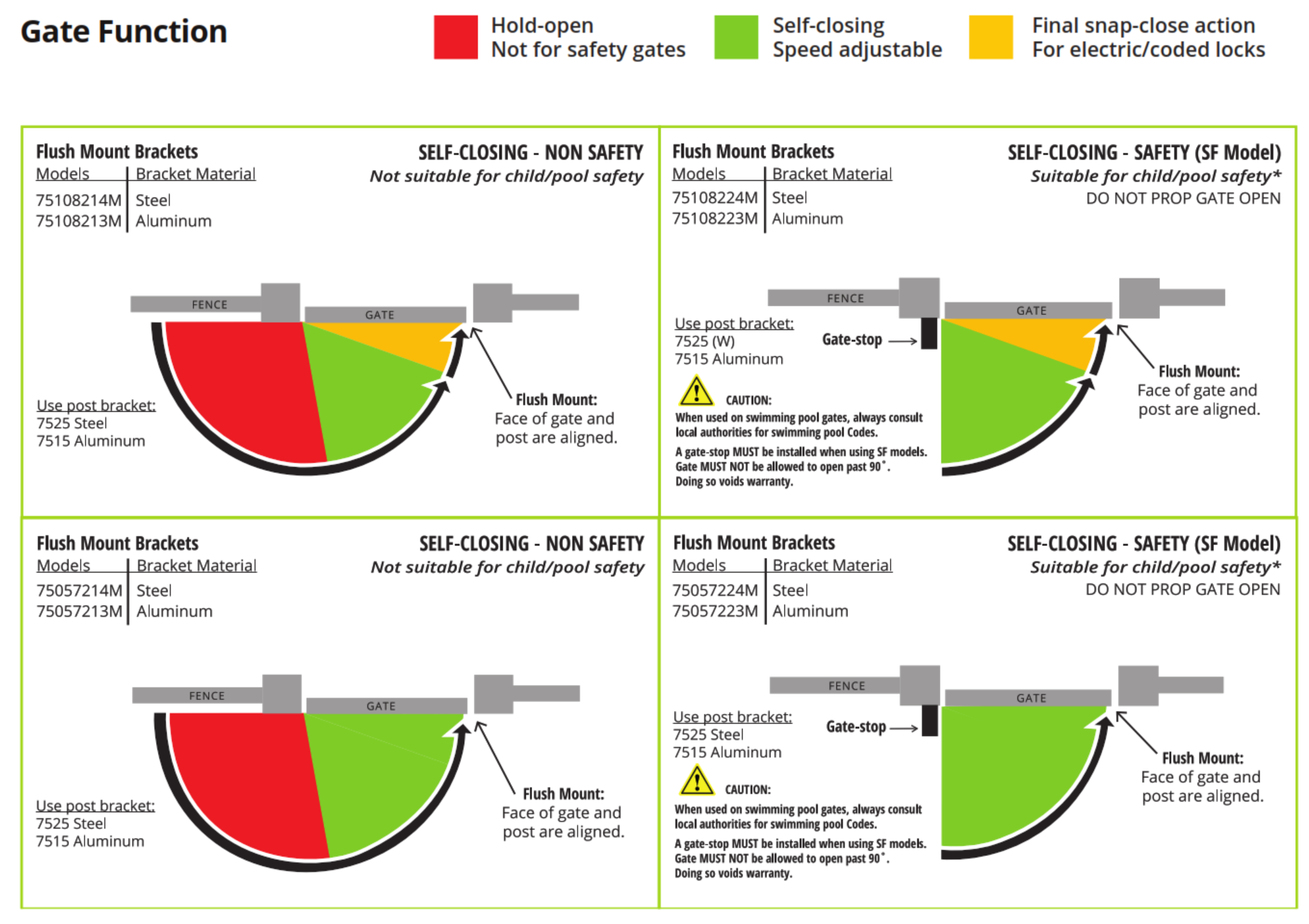

The D&D SureClose Flush Mount Gate Hinge Closer is a self-closing hinge designed specifically for pool and child safety gates. It provides controlled closing from 90 degrees without a hold-open function, ensuring the gate reliably returns to a closed position after use.

Key Features

  • Self-closing flush mount hinge for pool and child safety gates.
  • No hold-open function to support safety compliance.
  • Variable closing speed adjustment.
  • Hidden hydraulic mechanism concealed within the post.
  • Designed for aluminium or steel gate installations.

Specifications

Mount Type Flush mount
Self Closing Yes
Hold Open No
Maximum Gate Swing 90 degrees
Hinge Gap 13 mm
Fence Post Size 50 mm
Maximum Gate Weight 40 kg

Suitable Uses

  • Swimming pool safety gates.
  • Child safety and restricted-access gates.
  • Flush-mounted aluminium or steel gate installations.
Safety Notice
This hinge does not include a hold-open feature and is suitable for pool and child safety gates when installed correctly.

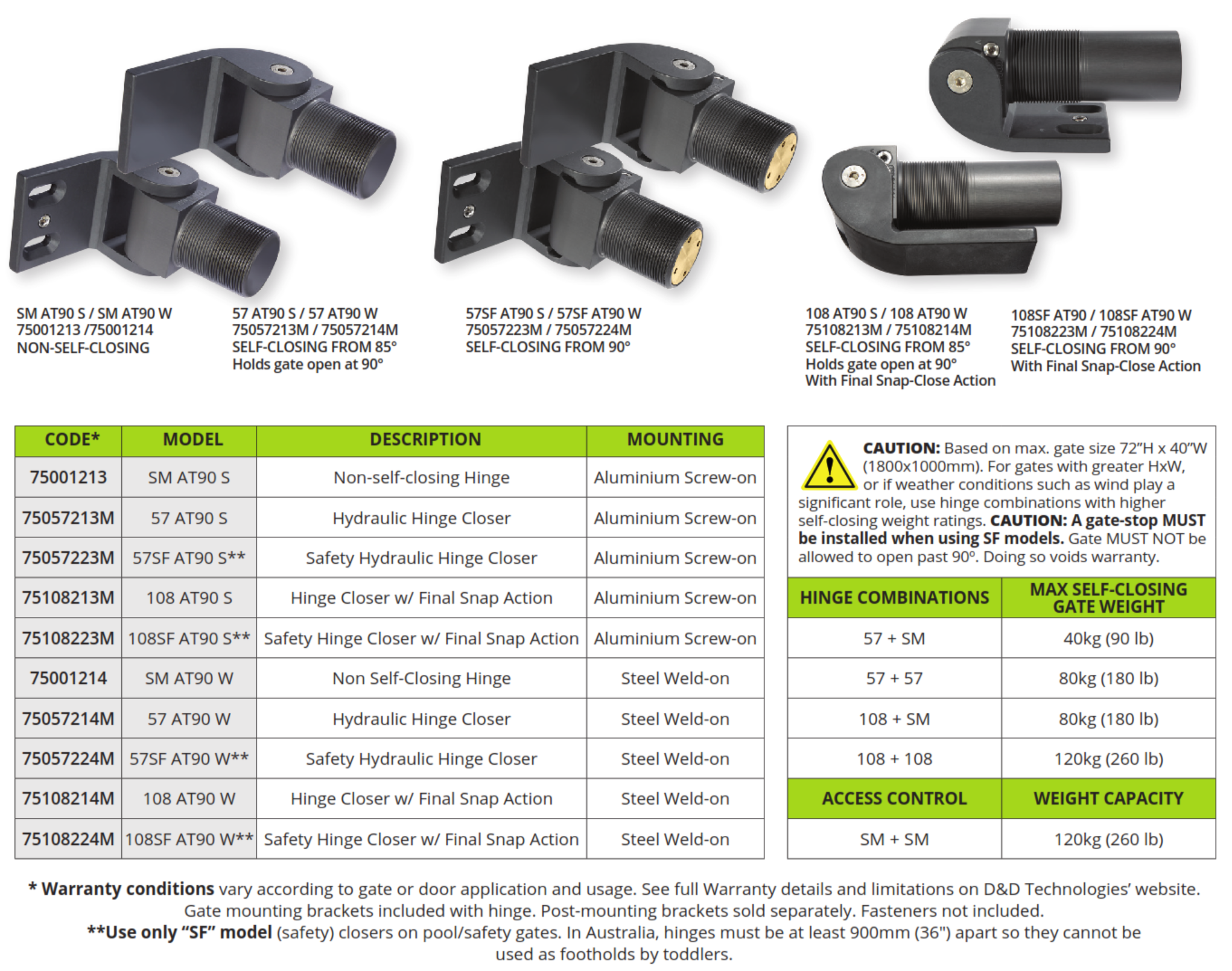

Item Code Family

Hinge Type Primary Function Representative Models
SureClose Flush Mount – Safety (This Product) Self-closing safety hinge without hold-open 57 AT90SF S
SureClose Flush Mount – Hold Open Self-closing hinge with hold-open 57 AT90 S
SureClose Centre Mount – Safety Centre mount self-closing safety hinge 57SF series

Download PDF Resources

Frequently Asked Questions

Is this hinge suitable for pool safety gates?
Yes. This model is designed for pool and child safety gates and does not include a hold-open function.

Does this hinge allow the gate to stay open?
No. The hinge will always return the gate to the closed position.

Are mounting brackets included?
No. Post mounting brackets are sold separately.

Additional Information

  • This SureClose flush mount hinge is supplied as a special order item.
  • Flush mounting requires accurate gate and post preparation.
  • Professional installation is recommended for safety-critical applications.

!
