D&D Sureclose Flush Mount Gate Hinge Closer with Hold Open and Snap Close Screw Fix For Aluminium - 108 AT90 S 75108213M - Black
D&D Sureclose Flush Mount Gate Hinge Closer with Hold Open and Snap Close Screw Fix For Aluminium - 108 AT90 S 75108213M - Black

D&D Sureclose Flush Mount Gate Hinge Closer with Hold Open and Snap Close Screw Fix For Aluminium - 108 AT90 S 75108213M - Black

D & D Technologies

$588.07
(No reviews yet) Write a Review
SKU:
STK 75108213M
UPC:
1785833439485
Availability:
Special Order (call for estimated dispatch times)
Adding to cart… The item has been added
D & D Technologies logo

D&D SureClose Flush Mount Gate Hinge Closer with Hold Open

Special Order Item
This product is supplied to order. Lead times may vary.

The D&D SureClose Flush Mount Gate Hinge Closer with Hold Open is a self-closing hinge designed for gates where controlled closing and the ability to hold the gate open are required. It provides smooth closing from approximately 85 degrees with a final snap-close action and is intended for non-safety gate applications.

Key Features

  • Self-closing flush mount gate hinge with final snap-close action.
  • Hold-open function between approximately 19 degrees and 180 degrees.
  • Adjustable closing speed.
  • Hidden hydraulic mechanism concealed within the post.
  • Designed for aluminium or steel gate installations.

Specifications

Mount Type Flush mount
Self Closing Yes
Hold Open Yes (19°–180°)
Maximum Gate Swing 180 degrees
Snap Close Action Yes
Hinge Gap 13 mm
Fence Post Size 75 mm
Maximum Gate Weight 80 kg

Suitable Uses

  • Residential or commercial gates where hold-open is required.
  • Non pool-safety gate applications.
  • Flush-mounted aluminium or steel gate installations.
Safety Notice
Hinges with hold-open functionality must not be used on pool or child safety gates.

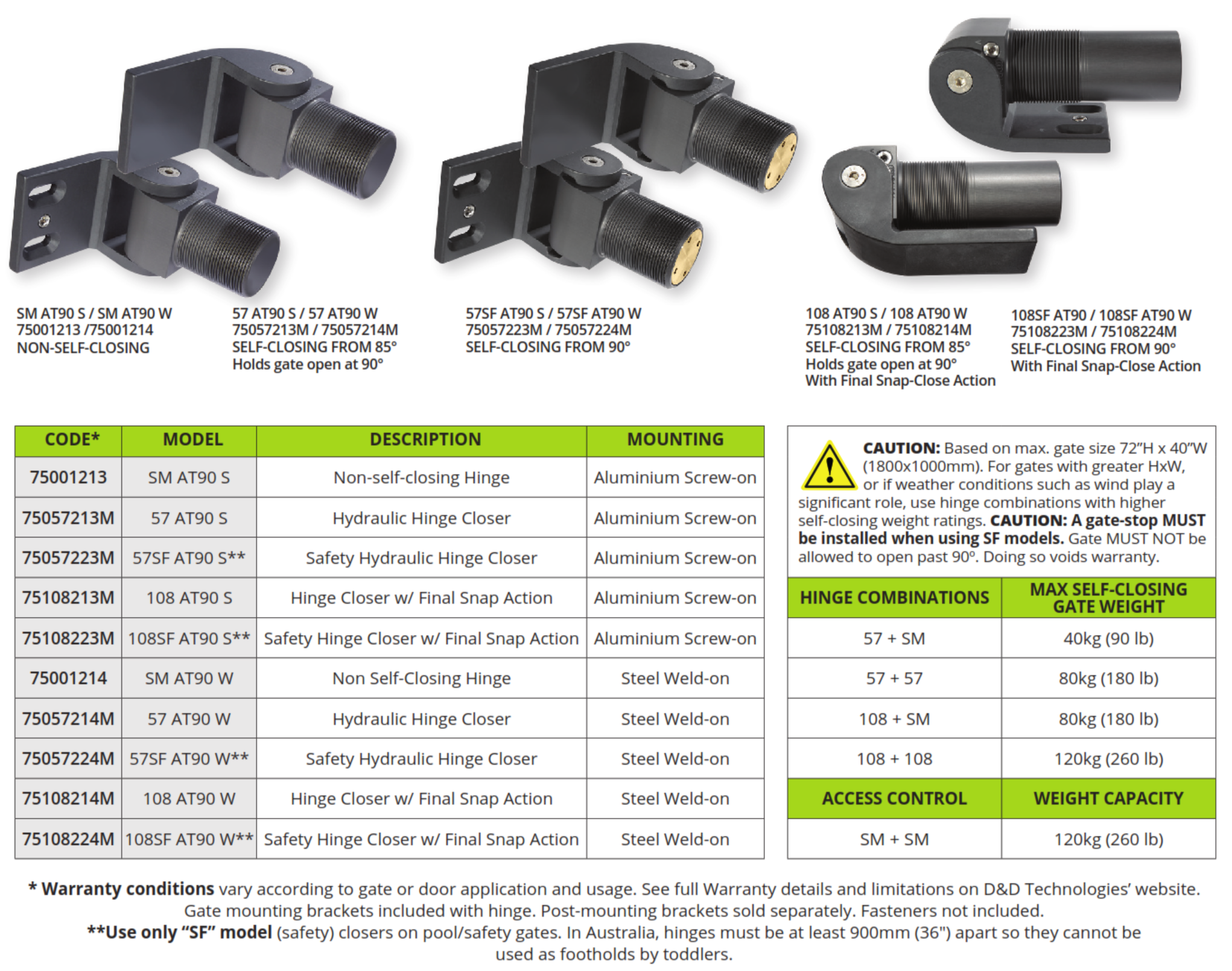

Item Code Family

Hinge Type Primary Function Representative Models
SureClose Flush Mount – Hold Open (This Product) Self-closing hinge with hold-open and snap close 108 AT90 S
SureClose Flush Mount – Safety Self-closing safety hinge without hold-open 108SF AT90 series
SureClose Centre Mount – Safety Centre mount self-closing safety hinge 57SF series
.

Download PDF Resources

Frequently Asked Questions

Is this hinge suitable for pool safety gates?
No. Hinges with hold-open functionality must not be used on pool or child safety gates.

Does the hinge hold the gate open?
Yes. The hold-open feature operates from approximately 19 degrees through to 180 degrees.

Are mounting brackets included?
No. Post mounting brackets are sold separately.

Additional Information

  • This SureClose flush mount hinge is supplied as a special order item.
  • Flush mounting requires precise gate and post preparation.
  • Professional installation is recommended for best performance.

!
