Name: CS Technologies Ace Wiegand Single Door Access Controller Kit with CS Technologies Reader & 10 Neptune Prox Clamshell Cards
Brand: CS Technologies
SKU: STK CSCARDKIT CSFOBKIT ACEFOBK
Availability: InStock

Description

CS Technologies ACE Wiegand Single Door Access Controller Kit

The CS Technologies ACE Wiegand Single Door Access Controller Kit is a standalone access control solution designed to control one door using industry-standard 26-bit Wiegand readers. The system is programmed via keypad, does not require software or a PC connection, and is suited to small commercial and industrial access control applications.

Non-Returnable Item
This product is made to order and must be ordered in advance.

Key Features

Standalone single door access controller using 26-bit Wiegand readers.
Up to 4,000 user credential capacity.
Supports proximity cards, fobs and HID SEOS credentials depending on kit.
Keypad-based programming with bulk add and delete functions.
No software, network connection or licence requirements.

Specifications

Doors Supported	1 door
User Capacity	Up to 4,000 users
Reader Interface	26-bit Wiegand
Relay Outputs	2 programmable relays
Relay Timing	Adjustable per relay
Operating Voltage	12 V DC
Current Consumption	150 mA (excluding locks)

What's In The Box

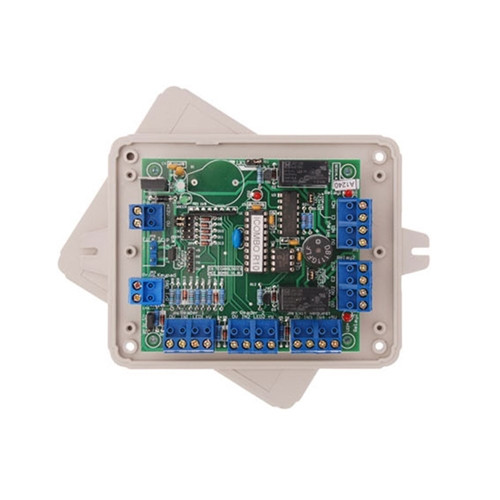

CS ACE Wiegand single door controller (CS4890).
One access control reader (type depends on variant).
Ten credentials (cards or fobs depending on variant).
Programming keypad (included on selected variants only).

Suitable Uses

Small commercial access control systems.
Standalone door control without networking.
Sites requiring simple credential management.

Available Variants

Item Code	Reader & Credentials Supplied	Programming Keypad
CSCARDKIT	CS Technologies reader with 10 proximity cards	Not included
CSFOBKIT	CS Technologies reader with 10 proximity fobs	Not included
ACEFOBKIT	HID SEOS reader with 10 HID SEOS fobs	Not included
ACECARDKIT	HID SEOS reader with 10 HID SEOS cards	Not included
CSFOBKITSTART	CS Technologies reader with 10 proximity fobs	Included
ACEFOBKITSTART	HID SEOS reader with 10 HID SEOS fobs	Included

Item Code Family

System Type	Primary Function	Representative Item Codes
This Product – ACE Wiegand	Standalone single door access control	CS4890 based kits
iKey Standalone System	Electronic restricted key access	CS4836, CS4828
EVO Network Controllers	Networked multi-door access control	CSEVO2, CSEVO4

Download PDF Resources

Frequently Asked Questions

Does this system require software or a computer?
No. The ACE Wiegand controller is fully standalone and programmed using a keypad.

Can different reader types be used?
Yes. The ACE controller supports any standard 26-bit Wiegand reader. Reader type is defined by the kit variant.

Does the controller store access history?
No. The ACE Wiegand system does not record access history or time-based events.

Additional Information

This system is fully standalone and does not connect to a PC, network, or access control software.
All credentials used on the system must share the same site code and be numbered consecutively within the supported range.
The ACE Wiegand controller supports bulk add and bulk delete functions, allowing rapid commissioning of large credential sets.
Relay outputs can be configured for fail-safe or fail-secure locking depending on the electric lock hardware used.
This system does not support time zones, schedules, or access event history and is intended for simple, reliable door control.
Commonly specified in Australian small commercial sites where a low-complexity access control solution is required.
