CS iKey or iProx Controller Board and Housing - CS4780H

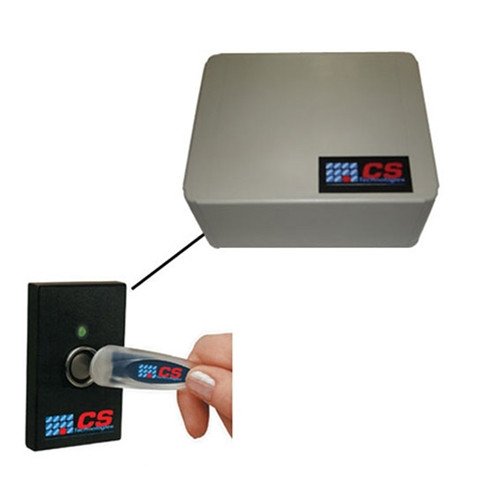

The CS Technologies CS4780H is an iKey access controller supplied installed in a plastic housing. It is designed as a cost-effective controller solution for smaller sites requiring straightforward access control without time zones or transaction history.
It can control one or two doors and supports up to 1000 iKey users, with basic access level management and programmable relay release times for electric locking devices.
Key Features
- Supplied installed in a plastic housing.
- Controls one or two doors.
- Compatible with weather and vandal resistant reader CS1013.
- Stores up to 1000 iKey users.
- Provides 8 access levels.
- Exit request inputs for door egress devices.
- Relay release time programmable from 1 to 30 seconds.
- Optional keypad programming support via CS4100.
- Designed to operate a wide range of electric locking devices.
- Designed and made in Australia.
Specifications
- Item Code: CS4780H
- Product Type: Controller (board and housing)
- Number of Doors Controllable: Up to 2 doors
- User Capacity: 1000 iKey users
- Access Levels: 8
- Exit Request Inputs: Yes
- Relay Release Time: 1 to 30 seconds
- Operating Voltage: 12 VDC
- Operating Current: 150 mA maximum at 12 VDC
- Time Zones: Not supported
- Transaction History: Not supported
- Country of Manufacture: Australia
Dimensions
What's In The Box
- CS iKey or iProx controller board installed in plastic housing
Suitable Uses
- Small commercial sites requiring basic one or two door access control.
- Standalone access control applications where schedules and audit trails are not required.
- Controlling electric strikes, magnetic locks, and other electric locking devices running from 12 VDC systems.
Accessories & Spares
Download PDF Resources
|
iKey Two Door Kit Installation Guide (v1.81) |
Frequently Asked Questions
- Does this controller support one door as well as two doors?
Yes. The CS4780H can be configured to control one or two doors. - Does this system provide schedules or audit trail reporting?
No. It does not support time zones or transaction history. - How is user programming typically done?
It can be programmed using the optional CS4100 keypad.
Additional Information
- This controller is commonly used on smaller sites that need simple credential management without software, schedules, or reporting.
- When operating magnetic locks or other higher draw devices, ensure the power supply has adequate current capacity and appropriate protection.
- Relay release times should be set with consideration for door closer speed and latch alignment to reduce door strike issues.
-
Technical Drawing
