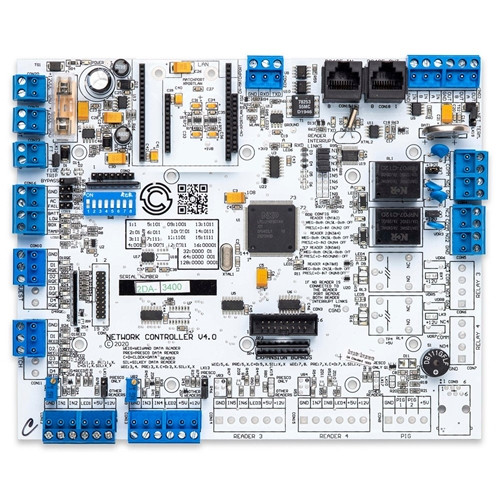

CS 4 Door Access – Alarm – Lift – Network Controller – 40000 Users
The CS Technologies Evolution access control system provides management of doors, lifts, cameras and alarm areas. The system consists of a network of controllers, each controlling a group of doors, an elevator configuration or an alarm processor function.
Each controller is fully distributed and stores all required programming locally for continuous operation regardless of the wider system or host PC connections. A total of 128 intelligent controllers can be linked per site across door and elevator configurations.
Key Features
- Four door controller with request to exit support.
- Database stored within the controller.
- Forty thousand users per controller.
- Twelve thousand five hundred transactions.
- Door monitoring support.
- Anti pass back options available.
- Car park counter functionality.
- Integrates with Dahua cameras.
- Alarm outputs supported.
- Forty time zones.
- Supports a wide range of readers and credentials.
- Controlled by Evolution software (no charge).
- Operates a wide range of electric locking devices.
- Designed and manufactured in Australia.
Specifications
- Item Code: CSEVO4
- Controller Type: Network controller
- Doors Controlled: 4
- User Capacity: 40000 users per controller
- Transaction Capacity: 12500 transactions
- Digital Inputs: 22
- Digital Outputs: 4
- Onboard Relays: 4
- PIG Ports: 2 (Point Identification Gadget ports)
- Time Zones: 40
- Maximum Controllers per Site: 128
- Communications: RS 485 interface
- Operating Voltage: 12 volts direct current
- Audit Trail: Yes
- Country of Manufacture: Australia
Suitable Uses
- Large commercial sites requiring four door control per controller.
- Facilities requiring alarm control and lift integration capability.
- Multi building sites needing high user capacity and distributed operation.
CS EVO Controller – Item Code Family
Download PDF Resources
Frequently Asked Questions
- Will the EVO4 keep operating if the network or PC is offline?
Yes. The controller stores its database and programming locally for continuous operation. - What does lift capable mean in practical terms?
The EVO4 supports lift control configurations where access permissions can be applied to elevator call buttons or lift destinations. - Does it work with different reader formats?
It supports a wide range of readers and credentials. Reader wiring and format selection should match the controller configuration.
Additional Information
- The EVO4 is commonly specified in Australian commercial and industrial sites where higher user capacity and multi door control are required.
- Lift and camera integrations are typically configured through Evolution software and should be planned during system design to ensure correct expansion and wiring.
- Where only two doors and lower user capacity are needed, EVO2 is often used as a cost effective controller option within the same Evolution ecosystem.
