Zanda Butt Hinge 100x75x2.5 Fixed Pin
Zanda Butt Hinge 100x75x2.5 Fixed Pin
Zanda Butt Hinge 100x75x2.5 Fixed Pin

Zanda Butt Hinge 100x75x2.5 Fixed Pin

Zanda

$13.86 - $34.58
(No reviews yet) Write a Review
SKU:
STK 5903
UPC:
7899786363897
Adding to cart… The item has been added

Zanda 5903 – Butt Hinge, Fixed Pin, 100 mm × 75 mm × 2.5 mm

The Zanda 5903 Fixed Pin Butt Hinge combines durability with a refined appearance, making it a popular choice for both residential and commercial applications. With its strong 2.5 mm stainless steel construction and versatile finish options, it delivers long-lasting performance and a seamless match to modern door hardware suites.

Key Features

  • Fixed Pin design for stable, long-term door installation
  • Manufactured to EN 1935 Grade 13 and CE Approved standards
  • Fire rated up to four hours (AS 1905.1)
  • Available in finishes that complement contemporary door hardware

Specifications

  • Item Code: 5903
  • Type: Butt Hinge — Fixed Pin
  • Dimensions: 100 mm (height) × 75 mm (width) × 2.5 mm (leaf thickness)
  • Material: 304 Grade Stainless Steel
  • Applications: Suitable for residential and commercial internal doors
  • Performance: EN 1935 Grade 13, CE Approved; 200,000 cycle tested on 120 kg door mass
  • Fire Rating: Up to four hours (AS 1905.1)

What's In The Box

  • Butt Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm
  • Screw pack to suit timber and metal frames
  • Installation instructions

Available Finish Options

  •

    Matt Black
    5903.BLK

  •

    Graphite Nickel
    5903.GN

  •

    Stainless Steel
    5903.SS

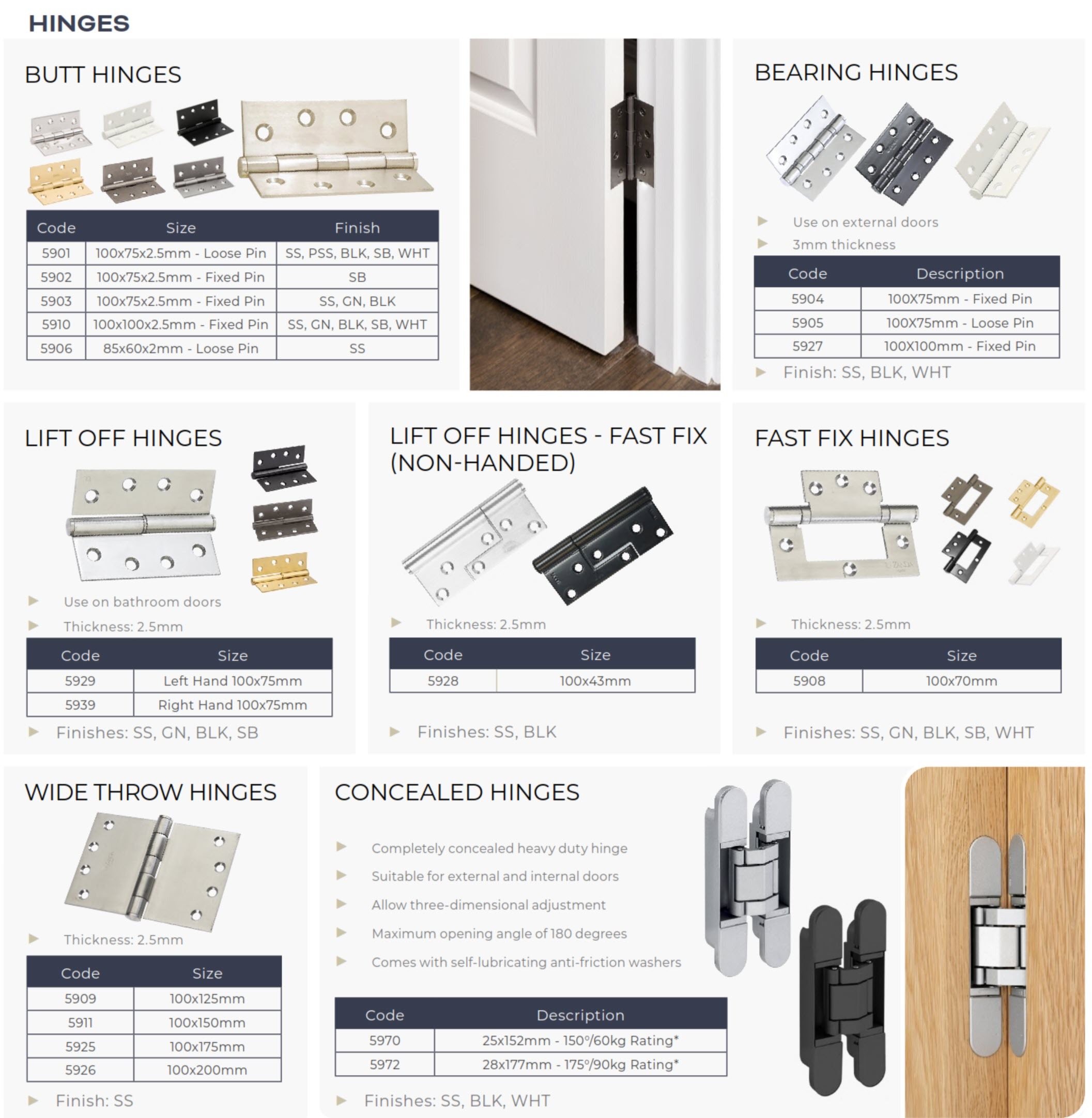

Item Code Family – Zanda Hinges

Item Code Description
5901 Butt Hinge — Loose Pin, 100 mm × 75 mm × 2.5 mm
5902 Butt Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm
5903 Butt Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm (Stainless Steel or Graphite Nickel finish)
5904 Bearing Hinge — Fixed Pin, 100 mm × 75 mm × 2.5 mm
5905 Bearing Hinge — Loose Pin, 100 mm × 75 mm × 2.5 mm
5906 Butt Hinge — Loose Pin, 85 mm × 60 mm × 2 mm
5908 Fast Fix Hinge — Timber Fix, 100 mm × 70 mm × 2.5 mm
5908.2 Fast Fix Hinge — Aluminium Fix, 100 mm × 70 mm × 2.5 mm
5909 Wide Throw Butt Hinge, 100 mm × 125 mm × 3.2 mm
5910 Butt Hinge — Fixed Pin, 100 mm × 100 mm × 2.5 mm
5911 Wide Throw Butt Hinge, 100 mm × 150 mm × 3.2 mm
5925 Wide Throw Butt Hinge, 100 mm × 175 mm × 3.2 mm
5926 Wide Throw Butt Hinge, 100 mm × 200 mm × 3.2 mm
5927 Bearing Hinge — Fixed Pin, 100 mm × 100 mm × 2.5 mm
5928 Lift-Off Hinge — Fast Fix & Non-Handed, 100 mm × 73 mm × 2.5 mm
5929 Lift-Off Hinge — Left Hand, 100 mm × 75 mm × 2.5 mm
5939 Lift-Off Hinge — Right Hand, 100 mm × 75 mm × 2.5 mm
5970 Concealed Hinge — 25 mm × 152 mm, 150° opening, 60 kg rating (3 hinges)
5972 Concealed Hinge — 29 mm × 177 mm, 150° opening, 120 kg rating (3 hinges)

Download PDF Resources

Zanda 5903 Butt Hinge — Spec Sheet
Zanda Door Furniture Product Brochure
Zanda Architectural Catalogue
Zanda Commercial Hardware Catalogue
Zanda Warranty

!
