Briton Exit Device with-Dogging Double Panic Bolt - Satin Chrome

Briton Exit Device with-Dogging Double Panic Bolt - Satin Chrome

Briton

$1,640.65
(No reviews yet) Write a Review
SKU:
STK BR377ED
UPC:
9416361071671
Availability:
Usually same day dispatch (if ordered before 11am)
Adding to cart… The item has been added
Briton logo

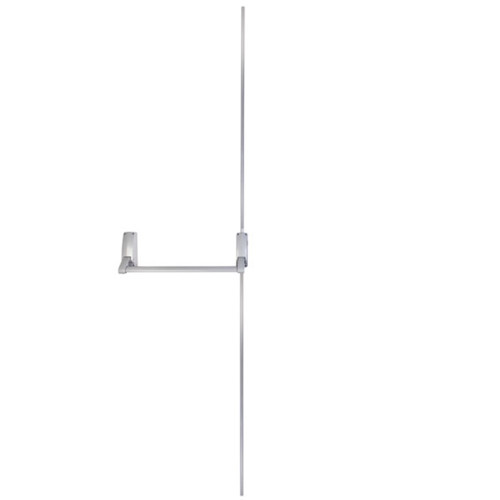

Briton Exit Device 377E Double Panic Bolt with Dogging - Satin Chrome

The Briton 377E with dogging is a double door panic bolt designed for emergency egress on double door applications. It provides top and bottom latching and allows both doors to be secured closed while still permitting emergency exit from either door.

This configuration includes a manual dogging (hold open) function, allowing the bolts to be held in the withdrawn position when required. Due to this feature, dogging is not suitable for fire door applications.

The 377E assembly is specified as consisting of the 376E, 378E and 378DDS strike plate.

Key features icon Key Features

  • Double door panic bolt with top and bottom latching.
  • Manual dogging function allows bolts to be held retracted.
  • Reversible to suit double rebated door configurations.
  • Permits emergency exit from either door leaf.
  • Anti-thrust device helps prevent bottom socket being levered from the outside.

Caution icon Important Notice

  • Dogging / hold open function is not suitable for fire door applications.

Size options icon Dimensions

Maximum Door Height 2600 mm
Maximum Overall Door Width 1830 mm

Specifications icon Specifications

  • Item Code: BR377ED
  • Application: Double door panic bolt
  • Door Type: Timber or metal
  • Dogging: Yes (manual)
  • Fire Rated: No
  • Finish: Silver

Contents icon What's In The Box

  • Briton 377E double panic bolt assembly (376E, 378E and 378DDS strike plate)
  • Manual dogging components
  • Fixing hardware

Suitable uses icon Suitable Uses

  • Double door emergency exit applications where hold open is required.
  • Non fire rated commercial and industrial doors.
  • Doors requiring temporary free passage via manual dogging.

Product code list icon Briton 377E Panic Bolt Range - Item Code Family

Item Code Configuration Dogging Fire Rated Notes
BR377ED Double panic bolt Yes No This product
50511163 Double panic bolt No Yes, up to 2 hours Fire tested configuration
BR378E Rim panic latch No Yes, up to 2 hours Single doors / first opening leaf

FAQ icon Frequently Asked Questions

  • Can this panic bolt be used on fire doors?
    No. The inclusion of a dogging function makes this configuration unsuitable for fire door applications.
  • What does dogging allow?
    Dogging allows the bolts to be held in the withdrawn position, providing free passage through the doors.
  • Is emergency exit available from either door?
    Yes. Emergency exit can be achieved from either leaf of the double door set.

Additional information icon Additional Information

  • This product is commonly specified where temporary free passage is required during business hours.
  • Installer should confirm door sizes and rebate details prior to ordering.
  • For fire rated applications, a non dogging 377E configuration should be selected.
!
