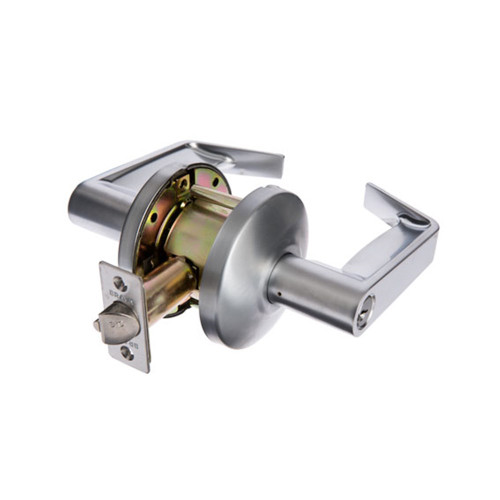

Brava Metro EV6000 Series Entrance Lever Set Clutching 70 mm Backset Satin Chrome
The Brava Metro EV6000 Series Entrance Lever Set is a commercial grade cylindrical lockset designed for controlled access applications where free internal egress is required. This entrance function model features a key operated external lever with an internal push button to control locking of the external lever while the internal lever remains free at all times.
Fire Rated: Successfully tested up to 4 hours depending on doorset configuration in accordance with AS1905.1 2005 Fire Resistant Doorsets.
Key Features
- Entrance function with key operated external lever.
- Internal lever always free for safe egress.
- Internal push button locks or unlocks the external lever.
- External clutching mechanism helps resist forced operation.
- Commercial grade cylindrical construction.
- Charlotte style lever on 85 mm rose.
Specifications
- Item Code: EV6000SC70
- Function: Entrance
- Lock Type: Cylindrical
- Backset: 70 mm
- Door Thickness: 35 mm to 51 mm
- Maximum Lever Projection: 72.5 mm
- Rose Diameter: 85 mm
- Latch Throw: 12.7 mm
- Cylinder: Silca LW5 profile 6 pin
- Handing: Non handed
- Finish: Satin Chrome
What's In The Box
- External and internal lever set with roses.
- 70 mm backset latch.
- Strike plate.
- Silca LW5 cylinder.
- 2 keys.
- Fixing hardware.
Suitable Uses
- Main entry doors in commercial buildings.
- Offices and administrative areas.
- Education and training facilities.
- Fire rated internal and external doorsets.
Dimensions
| Measurement | Value (mm) |
|---|---|
| Door Thickness | 35–51 |
| Lever Height (each side) | 72.5 |
| Lever Projection | 116 |
| Rose Diameter | 85 |
Brava Metro EV6000 Series Item Code Family
| Item Code | Function | DDA Compliant | Description |
|---|---|---|---|
| EV6000SC70 | Entrance | No | This product |
| EV6000SCDDA | Entrance | Yes | DDA compliant entrance lever set |
| EV6012SC70 | Classroom | No | Standard classroom lever set |
| EV6012SCDDA | Classroom | Yes | DDA compliant classroom lever set |
| EV6082SC70 | Passage | No | Standard passage lever set |
| EV6082SCDDA | Passage | Yes | DDA compliant passage lever set |
| EV6030SC70 | Privacy | No | Standard privacy lever set |
| EV6030SCDDA | Privacy | Yes | DDA compliant privacy lever set |
| EV6062SC70 | Storeroom | No | Standard storeroom lever set |
| EV6062SCDDA | Storeroom | Yes | DDA compliant storeroom lever set |
| EV6061SC70 | Institution | No | Standard institution lever set |
| EV6061SCDDA | Institution | Yes | DDA compliant institution lever set |
| EV6011SC70 | Glass Door | No | Standard glass door lever set |
| EV6011SCDDA | Glass Door | Yes | DDA compliant glass door lever set |
Frequently Asked Questions
- How does the entrance function operate?
The external lever is key operated while the internal lever remains free and includes a push button to control locking. - Is this suitable for fire doors?
Yes, when installed as part of a compliant fire rated doorset tested to AS1905.1. - Why are clutching levers used?
They help reduce damage if excessive force is applied to the lever.
Additional Information
- Entrance functions are commonly specified for controlled access points in commercial buildings.
- DDA compliant variants are available where accessibility compliance is required.
- Confirm door preparation and fire door certification prior to installation.
