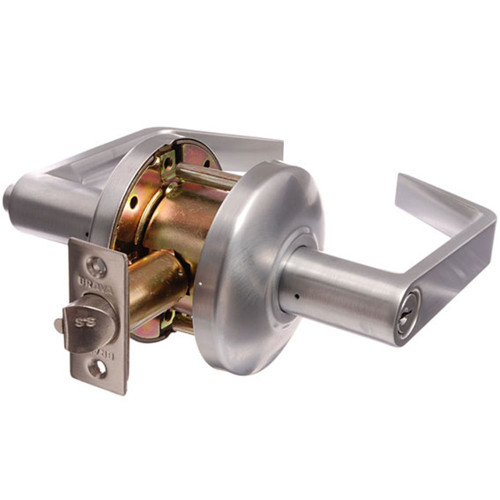

Brava Metro EV6000 Series Classroom Lever Set Clutching 70 mm Backset Satin Chrome
The Brava Metro EV6000 Series Classroom Lever Set is a commercial grade cylindrical locking solution designed for education and controlled access environments. The classroom function allows the external lever to be key controlled while the internal lever remains free at all times to ensure safe egress.
Fire Rated: Successfully tested up to 4 hours depending on doorset configuration in accordance with AS1905.1 2005 Fire Resistant Doorsets.
Key Features
- Classroom function with key controlled external lever.
- Internal lever free at all times for safe egress.
- External clutching mechanism helps reduce forced operation damage.
- Commercial grade cylindrical construction.
- Charlotte style lever on 85 mm rose.
Specifications
- Item Code: EV6012SC70
- Function: Classroom
- Lock Type: Cylindrical
- Backset: 70 mm
- Door Thickness: 35 mm to 51 mm
- Maximum Lever Projection: 72.5 mm
- Rose Diameter: 85 mm
- Latch Throw: 12.7 mm
- Strike Size: 28 mm x 70 mm x 2 mm
- Cylinder: Silca LW5 profile 6 pin
- Handing: Non handed
- Finish: Satin Chrome
What's In The Box
- External and internal lever sets with roses.
- 70 mm backset latch.
- Strike plate.
- Silca LW5 cylinder.
- 2 keys.
- Fixing hardware.
Suitable Uses
- Primary and secondary schools.
- Universities and education facilities.
- Training rooms and classrooms.
- Fire rated commercial doors.
Dimensions
| Measurement | Value (mm) |
|---|---|
| Door Thickness | 35 to 51 |
| Lever Height (each side) | 72.5 |
| Lever Projection | 116 |
| Rose Diameter | 85 |
Brava Metro EV6000 Series Item Code Family
| Item Code | Function | DDA Compliant | Description |
|---|---|---|---|
| EV6012SC70 | Classroom | No | This product |
| EV6012SCDDA | Classroom | Yes | DDA compliant classroom lever set |
| EV6000SC70 | Entrance | No | Standard entrance lever set |
| EV6000SCDDA | Entrance | Yes | DDA compliant entrance lever set |
| EV6082SC70 | Passage | No | Standard passage lever set |
| EV6082SCDDA | Passage | Yes | DDA compliant passage lever set |
| EV6030SC70 | Privacy | No | Standard privacy lever set |
| EV6030SCDDA | Privacy | Yes | DDA compliant privacy lever set |
| EV6062SC70 | Storeroom | No | Standard storeroom lever set |
| EV6062SCDDA | Storeroom | Yes | DDA compliant storeroom lever set |
| EV6061SC70 | Institution | No | Standard institution lever set |
| EV6061SCDDA | Institution | Yes | DDA compliant institution lever set |
| EV6011SC70 | Glass Door | No | Standard glass door lever set |
| EV6011SCDDA | Glass Door | Yes | DDA compliant glass door lever set |
PDF Resources
Frequently Asked Questions
- Is the internal lever always free?
Yes, the internal lever allows free egress at all times. - Is this suitable for fire doors?
Yes, when installed as part of a compliant AS1905.1 doorset. - Does this include a cylinder?
Yes, supplied with a Silca LW5 cylinder and two keys.
Additional Information
- Widely specified in Australian education facilities.
- Clutching levers reduce maintenance caused by forced operation.
- Compatible with restricted keying systems.
