Brava Metro EL Series Entrance Lever Set 60mm Backset
Brava Metro EL Series Entrance Lever Set 60mm Backset

Brava Metro EL Series Entrance Lever Set 60mm Backset

Brava

$112.72 - $157.29
(No reviews yet) Write a Review
SKU:
STK EL6000BC60 EL6100PB60 EL60
UPC:
9337393424944
Availability:
Usually same day dispatch (if ordered before 11am)
Adding to cart… The item has been added
Brava logo

Brava Metro EL Series Entrance Lever Set – 60 mm Backset

The Brava Metro EL Series Entrance Lever Set – 60 mm Backset is a commercial grade cylindrical entrance lever set designed for controlled access points. The external lever is locked via an internal push button and unlocked by key, while the internal lever remains free at all times to ensure safe egress.

Delivery truck icon Estimated Warehouse Dispatch: 2 Days

Key features icon Key Features

  • Entrance function with keyed external lever.
  • Internal push button locks the external lever.
  • Internal lever free at all times for safe egress.
  • Cylindrical fixing with straight lever design.
  • Silca LW5 profile 6 pin cylinder.
  • Incorporates the PD 8221 barrel.
  • Compatible with most restricted keying systems.
  • BCA AS1428.1 compliant lever design.
  • Supplied boxed and colour coded with mounting hardware.
  • Two keys supplied.



Fire rating icon Fire Rated

  • Successfully tested up to 4 hours on fire door assemblies in accordance with AS 1905.1-2005, subject to doorset configuration.

Specifications icon Specifications

  • Function: Entrance
  • Lock Type: Cylindrical
  • Lock Grade: Commercial

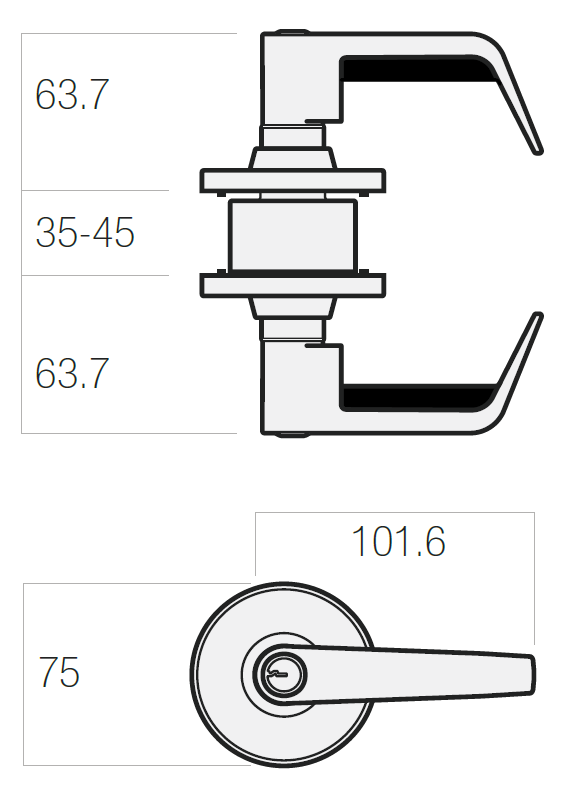

  • Backset: 60 mm
  • Door Thickness: 35 mm to 45 mm
  • Maximum Lever Projection: 63.7 mm
  • Rose Diameter: 75 mm
  • Latch Face Plate: 57 mm × 25 mm
  • Strike: 70 mm × 27 mm × 1.2 mm
  • Cylinder: LW5 profile
  • Door Handing: Non-handed
  • Accessibility: AS1428.1 compliant lever
  • Clutching Levers: No

Suitable uses icon Suitable Uses

  • Commercial entry doors requiring controlled access.
  • Offices, consulting rooms and restricted areas.
  • Fire rated door assemblies where compliant hardware is required.

Colour options icon Available Colour Variants

  •
    Chrome Plated
    EL6000BC60
  •
    Polished Brass
    EL6100PB60
  •
    Satin Chrome
    EL6000SC60

Product code list icon Brava Metro EL Series Lever Sets – Item Code Family

Series Variant Function Backset Options Notes
EL Series Entrance Entrance 60 mm / 70 mm This model – 60 mm backset
EL Series Classroom Classroom 70 mm Keyed external lever, inside free
EL Series Passage Passage 60 mm / 70 mm Free both sides
EL Series Privacy Privacy 60 mm / 70 mm Push button with emergency release

PDF icon Download PDF Resources

PDF Brava Commercial Hardware Catalogue 2024

FAQ icon Frequently Asked Questions

Does the inside lever ever lock?
No. The inside lever remains free at all times.

Is this lever suitable for accessible paths of travel?
Yes. The lever complies with AS1428.1 accessibility requirements.

Is this suitable for fire doors?
Yes, when installed as part of a compliant fire rated doorset tested to AS 1905.1.

Book icon Additional Information

  • Entrance function allows external access control with internal free egress.
  • AS1428.1 compliance makes this suitable for accessible routes.
  • Fire rating applies to the tested doorset configuration, not the finish.
!
