Available Variants: Colour - Antique Copper, Polished Stainless Steel, Stainless Steel
BRAVA Metro EA3000 series commercial grade storeroom knobset 60 mm backset.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Storeroom function
- Outside knob always rigid, key retracts the latch.
- Inside knob free at all times.
Additional info
- Cylindrical fixing.
- Silca LW5 profile 6 pin cylinder.
- Incorporates the popular PD 8221 barrel.
- Compatible with most restricted keying systems.
- Boxed and colour coded.
- 2 keys supplied.
- Fire rated.
- Finished in antique copper.

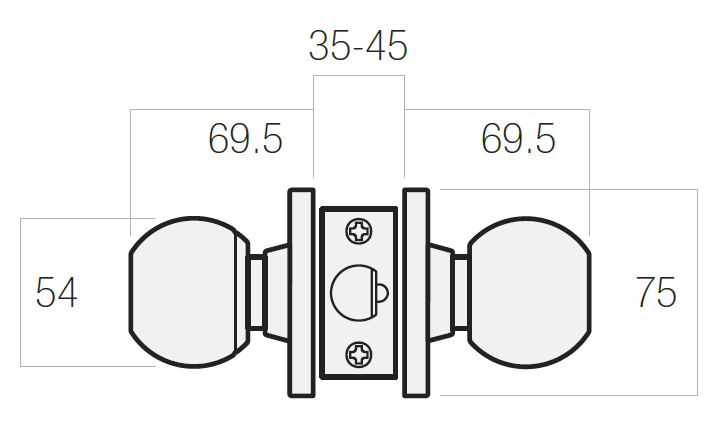

| Door thickness | 35-45mm |
| Backset | 60mm |
| max. Lever / knob projection distance may not include turnsnib | 69.5mm |
| Strike | 70mm x 27mm x 1.2mm |
| Latch | 60mm |
| Latch face plate | 57mm x 25mm |
| Cylinder | LW5 profile |
| Door handing | Non-handed knobs/levers |
| Rose | 75mm |
Suits Door Thickness: 35 mm to 45 mm
Backset: 60 mm
Rose Diameter (in mm): 75
Fire Rated: Yes
Function: Storeroom
Lock Grade: Commercial
Lock Type: Cylindrical
