Brava Metro EA Series Passage Knob Set 60mm Backset

Brava Metro EA Series Passage Knob Set 60mm Backset

Brava

$54.56 - $69.50
(No reviews yet) Write a Review
SKU:
STK EA3182PB60 EA3882PSS70 EA3
UPC:
3295996227259
Availability:
Usually same day dispatch (if ordered before 11am)
Adding to cart… The item has been added
Brava logo

Brava Metro EA Series Passage Knob Set – 60 mm Backset

The Brava Metro EA Series Passage Knob Set – 60 mm Backset is a commercial grade cylindrical passage knobset designed for doors where free access is required from both sides. Part of the Brava Metro range, it is commonly specified in Australian commercial, education and institutional environments.

Delivery truck icon Estimated Warehouse Dispatch: 2 Days

Key features icon Key Features

  • Passage function with both knobs always free.
  • No locking or keying function.
  • Cylindrical fixing with spherical knob design.
  • Supplied boxed and colour coded with mounting hardware.
  • Commercial grade construction.

Fire rating icon Fire Rated

  • Successfully tested up to 4 hours on fire door assemblies in accordance with AS 1905.1-2005, subject to doorset configuration.

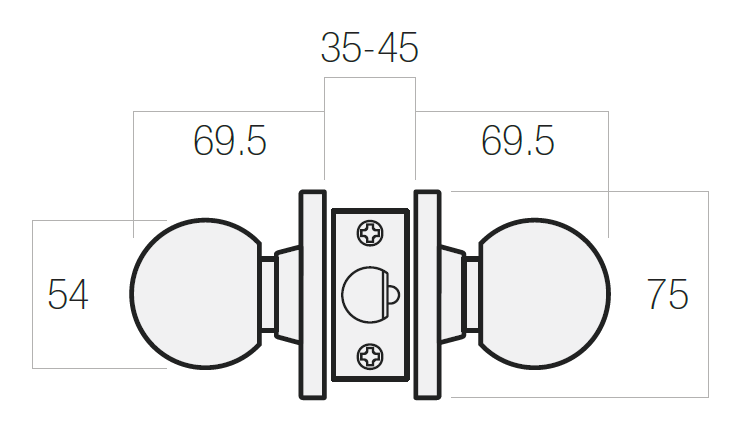

Specifications icon Specifications

  • Function: Passage
  • Lock Type: Cylindrical
  • Lock Grade: Commercial
  • Backset: 60 mm
  • Door Thickness: 35 mm to 45 mm
  • Maximum Knob Projection: 69.5 mm
  • Rose Diameter: 75 mm
  • Latch Face Plate: 57 mm × 25 mm
  • Strike: 70 mm × 27 mm × 1.2 mm
  • Door Handing: Non-handed

Suitable uses icon Suitable Uses

  • Internal commercial doors requiring free access.
  • Office circulation doors and corridors.
  • Fire rated door assemblies where latching is required but locking is not.

Colour options icon Available Colour Variants

  •
    Polished Brass
  •
    Polished Stainless Steel
  •
    Stainless Steel

Product code list icon Brava Metro EA Series Knob Sets – Item Code Family

Series Variant Function Backset Options Notes
EA Series Passage Passage 60 mm / 70 mm / 127 mm This model – 60 mm backset
EA Series Entrance Entrance 60 mm / 70 mm / 127 mm Keyed external access
EA Series Privacy Privacy 60 mm / 70 mm / 127 mm Push button with emergency release
EA Series Classroom Classroom 70 mm / 127 mm Key controlled external knob

PDF icon Download PDF Resources

PDF Brava Commercial Hardware Catalogue 2024

FAQ icon Frequently Asked Questions

Does this knob lock?
No. Passage function knobs are always free and do not lock.

Is this suitable for fire doors?
Yes, when installed as part of a compliant fire rated doorset tested to AS 1905.1.

Can this be used on external doors?
It can be used where locking is not required, but is more commonly specified internally.

Book icon Additional Information

  • Passage sets provide no access control and must not be used where locking is required.
  • Fire rating applies to the doorset configuration, not the finish.
  • Commonly specified for corridors and circulation doors in Australian commercial projects.
!
