Brava Metro EA Series Entrance Knob Set – 70 mm Backset
The Brava Metro EA Series Entrance Knob Set – 70 mm Backset is a commercial grade cylindrical entrance knobset designed for doors requiring keyed access control. Part of the Brava Metro range, it is commonly specified in Australian commercial, education and institutional environments where durability and fire performance are required.
Estimated Warehouse Dispatch: 2 Days
Key Features
- Entrance function with keyed external access.
- Inside knob free at all times with push button locking.
- Cylindrical fixing with spherical knob design.
- Silca LW5 profile 6 pin cylinder.
- Incorporates the PD 8221 barrel.
- Compatible with most restricted keying systems.
- Supplied boxed and colour coded with mounting hardware.
- Two keys supplied.
Fire Rated
- Successfully tested up to 4 hours on fire door assemblies in accordance with AS 1905.1-2005, subject to doorset configuration.

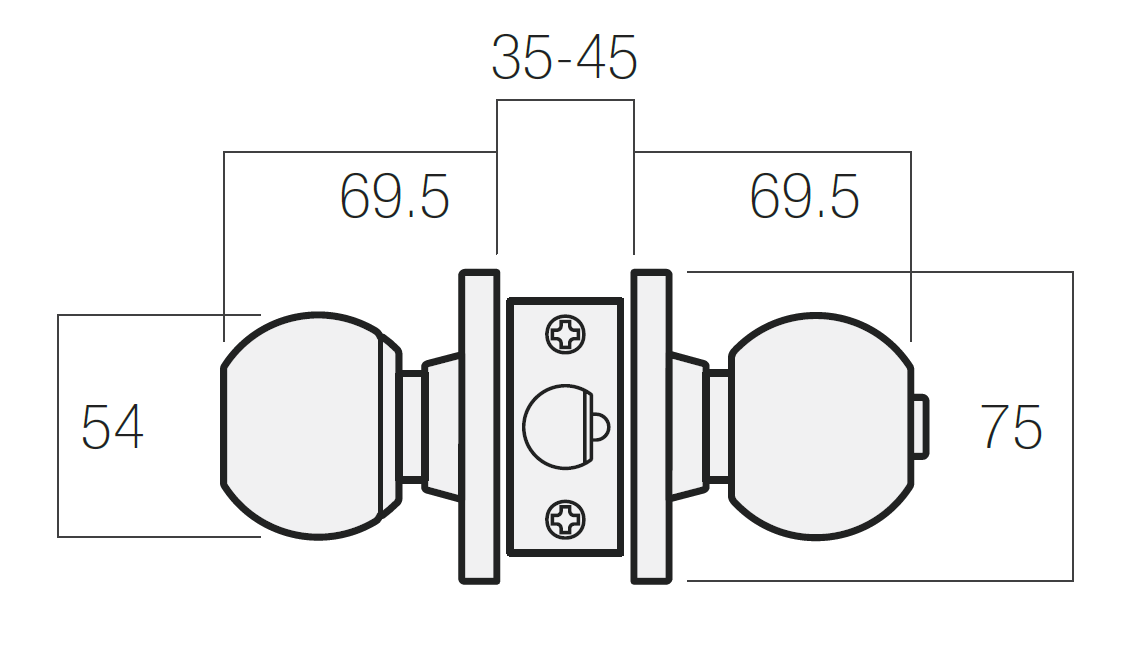

Specifications
- Function: Entrance
- Lock Type: Cylindrical
- Lock Grade: Commercial
- Backset: 70 mm
- Door Thickness: 35 mm to 45 mm
- Maximum Knob Projection: 69.5 mm
- Rose Diameter: 75 mm
- Latch Face Plate: 57 mm × 25 mm
- Strike: 70 mm × 27 mm × 1.2 mm
- Cylinder: LW5 profile
- Door Handing: Non-handed
Suitable Uses
- External and internal commercial doors requiring keyed entry.
- Education, healthcare and institutional facilities.
- Fire rated door assemblies where compliant hardware is required.
Available Colour Variants
-
Matt Black
EA3000MB70 -
Antique Copper
EA3700AC70 -
Polished Brass
EA3100PB70 -
Polished Stainless Steel
EA3800PSS70 -
Satin Stainless Steel
EA3000SS70
Brava Metro EA Series Knob Sets – Item Code Family
Download PDF Resources
|
Brava Commercial Hardware Catalogue 2024 |
Frequently Asked Questions
Is this suitable for fire doors?
Yes, when installed as part of a compliant fire rated doorset tested to AS 1905.1.
Can this be keyed alike with other Brava Metro locks?
Yes. LW5 cylinders allow keying alike where compatible systems are used.
Is the latch reversible?
Yes. The latch suits non-handed installation.
Additional Information
- Fire rating applies to the doorset configuration, not the finish.
- Commonly specified in Australian commercial and institutional projects.
- Restricted keying compatibility depends on cylinder selection.
