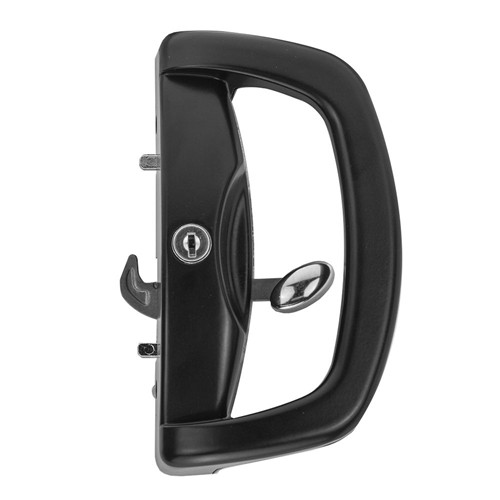

Whitco Blaxland Sliding Door Lock – Double Cylinder Offset Outer Pull (W502PP/Z2DP)
Estimated Warehouse Dispatch: 3 business days
Key Features
- Zinc diecast internal D handle sliding door deadlock.
- Surface mounted design suitable for aluminium or timber sliding doors.
- Offset outer pull configuration.
- Standard 82mm fixing centres for common sliding door lock replacement.
- Integral anti lift pins help prevent attempts to lift the door out of its track.
- Adjustable stainless steel locking beak with approximately 6mm closing adjustment.
- Self retracting locking beak helps prevent accidental lockout.
- Compatible with a wide range of Whitco outer pulls and strike plates.
- Reversible lock suitable for left or right hand sliding doors.
Specifications
- Series: Whitco Blaxland
- Lock Type: Sliding Door Deadlock
- Mounting: Surface Mounted
- Handle Type: Zinc Diecast D Handle
- Outer Pull: Offset Outer Pull
- Fixing Centres: 82mm
- Closing Adjustment: Approximately 6mm
- Material: Zinc Diecast
- Door Type: Aluminium or Timber Sliding Doors
- Standard: Australian Standard AS4145.2
Available Finish Options
Black
W502PP/Z2BLKDP
White
W502PP/Z2WHDP
Finish selection does not affect the mechanical operation or locking performance.
Dimensions
Frequently Asked Questions
What type of locking mechanism does the Blaxland lock use?
The Blaxland lock uses a parrot beak style deadlocking mechanism that engages a strike plate when the sliding door is closed.
Is the Blaxland sliding door lock handed?
No. The lock is reversible and can be installed on either left hand or right hand sliding doors.
Can this lock replace older sliding door locks?
Yes. The standard 82mm fixing centres allow many older sliding door locks to be replaced without modifying the door.
Additional Information
- The Blaxland sliding door lock is commonly installed on residential sliding patio doors throughout Australia.
- Zinc diecast construction provides durability while maintaining a compact profile suitable for narrow door stiles.
- The adjustable stainless steel locking beak allows for door movement and installation tolerance.
- Integral anti lift pins help resist forced entry attempts by lifting the door from its track.
- Self retracting beak design helps prevent accidental lockouts when closing the sliding door.
Whitco branded products are covered by a 10 Year manufacturer warranty against defects in materials and workmanship.
- Pneumatic door closers: 12 months
- Keys: 12 months
- Finishes and cosmetic damage: excluded
- Removal, refitment and labour: excluded
Whitco Warranty Overview
Whitco branded products are manufactured by ASSA ABLOY Australia Pty Ltd and are covered by manufacturer warranties applicable to products sold in Australia. The warranty covers defects in material and workmanship subject to limitations, exclusions and proper installation and maintenance.
This summary outlines the key elements of Whitco warranty coverage. Full warranty terms, claim procedures and exclusions are detailed in the official Whitco warranty documentation.
Warranty Periods Summary
Finish & Material Notes
- Stainless steel is corrosion resistant but not stain-proof.
- Tea staining may occur if products are not cleaned and maintained in accordance with manufacturer recommendations.
- Cosmetic finish deterioration or appearance damage is not covered by warranty.
What the Warranty Covers
- Defects in materials and workmanship within the applicable warranty period.
- Assessment by ASSA ABLOY to determine whether warranty coverage applies.
- Repair, replacement with the same or closest equivalent product, or refund of purchase price at ASSA ABLOY's' discretion.
Common Warranty Exclusions
- Normal wear and tear.
- Misuse, abuse or installation outside manufacturer specifications.
- Improper maintenance or neglect.
- Unauthorised modification or repair.
- Use of non-genuine ASSA ABLOY parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or high humidity.
- Removal, refitment, transport or labour costs.
- Second-hand goods or products not originally sold through authorised Australian channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product to the authorised retailer from whom it was purchased where applicable.
- If claiming directly with ASSA ABLOY, contact customer service to obtain a Case Number.
- Securely package the product and include proof of purchase.
- Clearly mark the Case Number on the returned package.
Australian Consumer Law
Whitco warranties operate in addition to rights provided under the Australian Consumer Law. Goods come with guarantees that cannot be excluded under Australian law.
Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
