Description

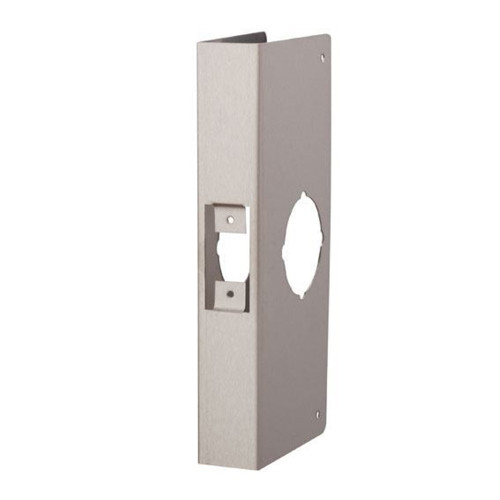

BDS Satin Stainless Steel Lockset Wrap for 48 mm Timber Doors – Entrance Knob and Lever Locksets

The BDS Lockset Wrap is a stainless steel door reinforcement plate designed for entrance-style knob and lever locksets. This version suits 48 mm timber doors and is commonly specified to repair damaged doors or reinforce thicker doors when installing or retrofitting entrance locksets.

Key Features

Lockset wrap designed for entrance knobs and levers.
Reinforces damaged or weakened door faces.
Wrap-style plate strengthens both the door face and edge.
Suits common Australian entrance lockset preparations.
Satin stainless steel finish.

Specifications

Product Type: Lockset door wrap
Material: Stainless steel
Finish: Satin Stainless Steel
Suits Door Thickness: 48 mm
Lockset Hole Diameter: 55 mm
Application: Timber doors

Available Variants – 48 mm Door

Item Code	Backset	Plate Size	Finish
11351141	60 mm	230 × 100 mm	Satin Stainless Steel
11351143	70 mm	230 × 110 mm	Satin Stainless Steel
11351153	127 mm	230 × 167 mm	Satin Stainless Steel

BDS Lockset Wraps – Item Code Family (33–48 mm Doors)

Door Thickness	Supported Backsets	Typical Plate Height	Typical Use Case
33 mm	60 mm, 70 mm, 127 mm	230 mm	Thin timber entrance doors
35 mm	60 mm, 70 mm, 127 mm	230 mm	Standard residential entrance doors
38 mm	70 mm, 127 mm	230 mm	Upgraded timber doors
40 mm	60 mm, 70 mm, 127 mm	230 mm	Thicker entrance doors
45 mm	60 mm, 70 mm, 127 mm	230 mm	Security or commercial timber doors
48 mm	60 mm, 70 mm, 127 mm	230 mm	Extra-thick or reinforced doors
