Austral Yarra Ridge Sliding Door Lock – Single Cylinder LW4 – Egress Inner Pull – Black
The Austral Yarra Ridge sliding door lock is a single cylinder sliding glass door lock designed for aluminium and timber sliding door applications. It features twin metal locking beaks, an egress inner pull and a set-back cylinder position to provide increased knuckle clearance during operation.
Usually same day if ordered before 11am AEST (excluding weekends and Qld public holidays)
Key Features
- Twin counteracting beaks engage a metal catch plate to resist jemmying attempts.
- Helps restrain sliding doors from being lifted off tracks.
- Self-adjusting catch plate compensates for door movement and carriage wear.
- Anti-slam plunger prevents door from closing while locking beaks are extended.
- Suitable for both left-closing and right-closing sliding doors.
- Lock design is unhanded for simplified installation.
- Fits industry-standard three-hole door cut-outs.
- Compatible with multiple outer pull styles.
- Compatible with Yarra Ridge and Yarra View accessory systems.
Specifications

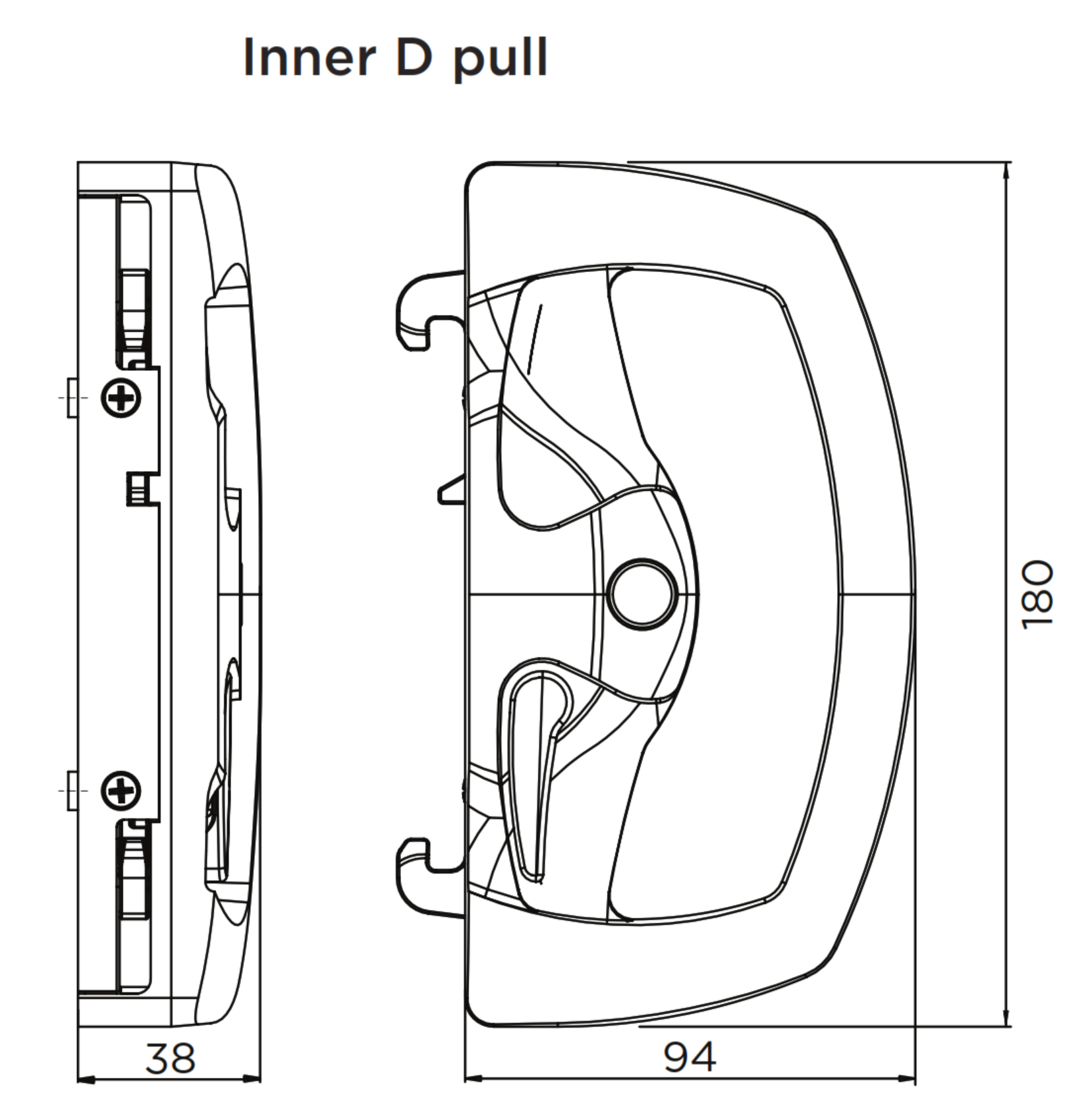

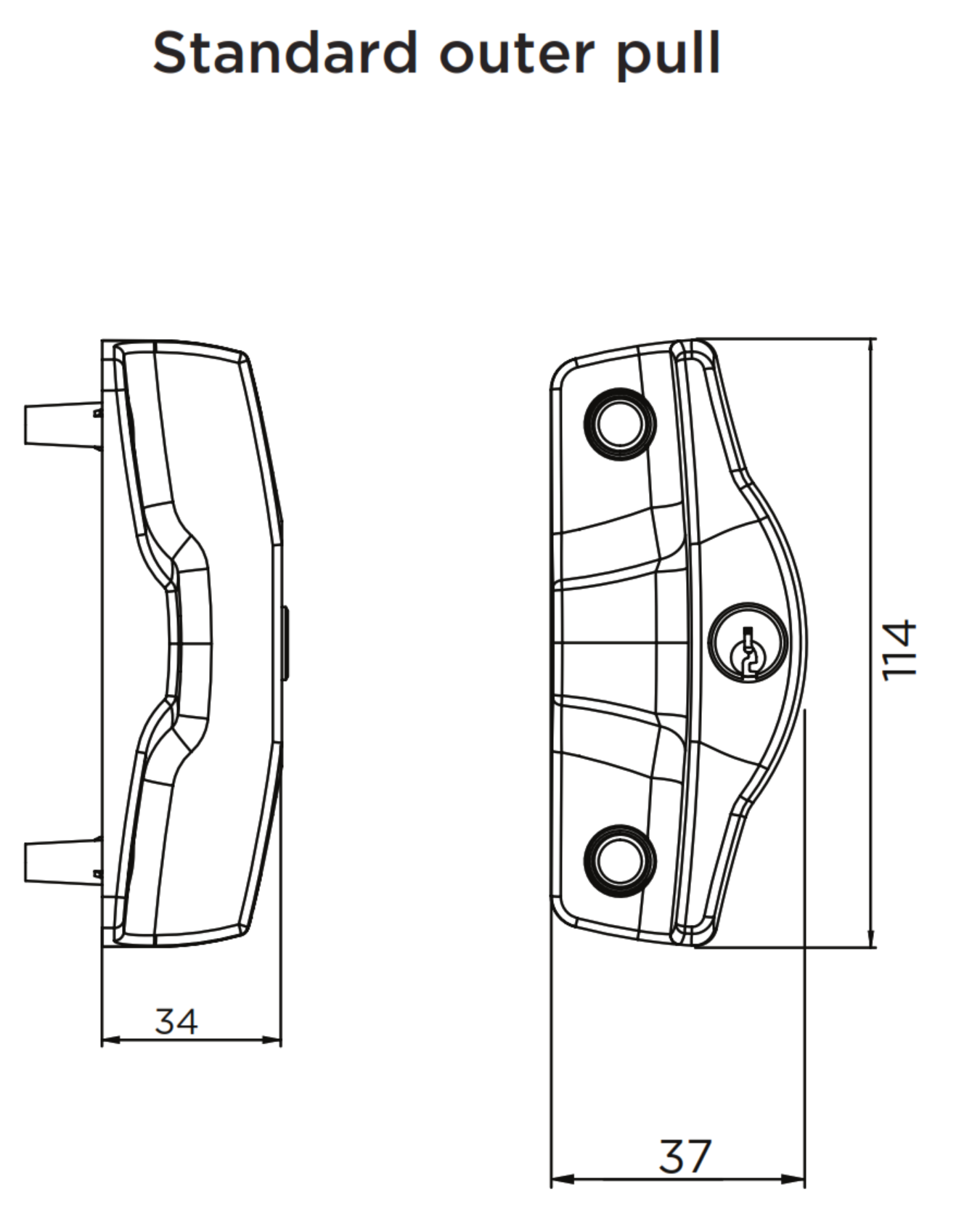

Dimensions
Installation Notes
- Ensure the sliding door runs smoothly and closes parallel to the jamb before installation.
- Three 9mm holes are required in the door stile for mounting.
- Multiple screw lengths are provided to suit different door thicknesses.
- Spindle length may require adjustment by removing pre-notched sections.
- Spacers may be required for timber doors with weather seals or some aluminium doors.
Suitable Uses
- Residential aluminium sliding doors.
- Residential timber sliding doors.
- Sliding door installations requiring improved internal hand clearance.
Care & Maintenance
- Inspect door alignment and clearances annually.
- Ensure lock beaks engage correctly with the catch plate.
- The lock assembly is factory lubricated and should not be disassembled.
- Powder-coated finishes should be cleaned every six months, or every 2–3 months in coastal or industrial environments.
- Clean using mild detergent and soft cloth – avoid abrasives or steel wool.
Frequently Asked Questions
Can this lock be used on both left and right sliding doors?
Yes. The Yarra Ridge lock is unhanded and suits both left-closing and right-closing doors.
Does the lock prevent the door being lifted?
The twin beak design engages a metal catch plate which helps restrain the door from being lifted from its rails.
What cylinder options are available?
The lock can be supplied with C4, GR9 or wafer cylinders depending on the required keying system.
Additional Information
- Compatible with Austral Yarra Ridge and Yarra View accessory systems.
- Optional outer pull designs available including curve, edge and slim profiles.
- Spacer kits are available for adjusting inner pull spacing.
- Master keying and project keying options are available.
Austral Lock products are covered by the manufacturer's Terms of Guarantee against defects in materials and workmanship when installed and used correctly. Warranty coverage is subject to installation, maintenance and usage conditions.
Austral Lock – Warranty & Terms of Guarantee (Summary)
Austral Lock products are supplied under the manufacturer's Terms of Guarantee issued by Austral Lock Pty Ltd (part of the Allegion group). These terms define warranty coverage, defect reporting requirements, liability limitations and return conditions for goods supplied through authorised distributors and retailers.
The information below summarises the key provisions of the guarantee. For the full legal wording refer to the official manufacturer document.
Austral Lock products may include manufacturer warranties covering defects in materials and workmanship where the product has been installed correctly and used under normal operating conditions.
Inspection & Defect Reporting
- Products must be inspected upon delivery.
- Visible damage, shortages or incorrect items should be reported within 14 days of delivery.
- If defects are discovered later they should be reported as soon as reasonably possible.
- The supplier must be given the opportunity to inspect the goods before a claim is processed.
Warranty Limitations
- The supplier does not provide additional warranties beyond those required by law unless explicitly stated.
- Where the product is manufactured by a third party, the warranty may be limited to the original manufacturer’s warranty.
- Remedies may include repair, replacement or refund where permitted by law.
- Warranty coverage may not extend to labour costs or consequential losses.
Common Warranty Exclusions
- Improper installation or failure to follow installation instructions.
- Failure to maintain the product correctly.
- Use outside intended applications.
- Damage caused by environmental exposure or misuse.
- Fair wear and tear through normal use.
- Continuing to use a product after a defect becomes evident.
Returns Policy
- Returns may only be accepted once the supplier confirms the product is defective.
- Goods should be returned within a reasonable period after delivery.
- Returned items should be in the same condition as delivered where possible.
- Freight costs for returns may be the responsibility of the buyer.
- Custom or special-order products may not be eligible for return or credit.
Liability Conditions
- Risk of loss or damage transfers to the buyer once goods are delivered.
- Ownership of goods may remain with the supplier until payment is received in full.
- The supplier may not be liable for indirect or consequential losses resulting from delays or defects.
Australian Consumer Law
Nothing in the Austral Lock Terms of Guarantee excludes rights available under the Australian Consumer Law. Customers may be entitled to repairs, replacement or refund where goods fail to meet consumer guarantees.
For the complete legal wording refer to the manufacturer's official document:
https://ausloc.com/terms-of-guarantee/
