ASSA ABLOY SMARTair i-max Wireless/Openow Electronic Escutcheon – HID iCLASS Standard Mortice DDA Handle
The ASSA ABLOY SMARTair i-max electronic escutcheon is a wireless access control device designed to convert conventional mortice lock doors into intelligent credential-controlled entry points. This model (SNZB43SL1S008DI) integrates a HID iCLASS RFID reader and DDA compliant lever handle within an escutcheon designed for standard mortice lock installations.
The escutcheon operates within the SMARTair Wireless Online architecture and also supports Openow smartphone credentials. Wireless Online systems connect door devices to the SMARTair management server through encrypted communication hubs, enabling real-time permission updates, audit logging and centralised access control management.
SMARTair systems are part of the broader ASSA ABLOY electronic access ecosystem. Product range and system architecture details can be found in the SMARTair Wireless Access Control Overview and the SMARTair System Information Guide.
Usually ships in 33 business days.
SMARTair i-max escutcheons are designed for medium-to-high traffic commercial doors including offices, universities, hospitals and commercial buildings.
Fire Rated
- Suitable for installation on fire-rated door assemblies.
- Tested with fire door systems according to EN1634 standards.
- Fire performance depends on the certified door set and lock body.
Disability Compliance (DDA)
- DDA compliant lever handle design.
- Suitable for accessible commercial door installations.
- Lever geometry assists users with reduced grip strength.
Key Features
- SMARTair Wireless Online access control architecture.
- Openow smartphone credential support.
- Integrated HID iCLASS RFID reader.
- Wireless battery powered escutcheon.
- Compatible with standard mortice lock installations.
- DDA compliant commercial lever handle.
- Electromechanical clutch handle control.
- Supports approx. 3,000 users.
- Stores approx. 1,200 audit events.

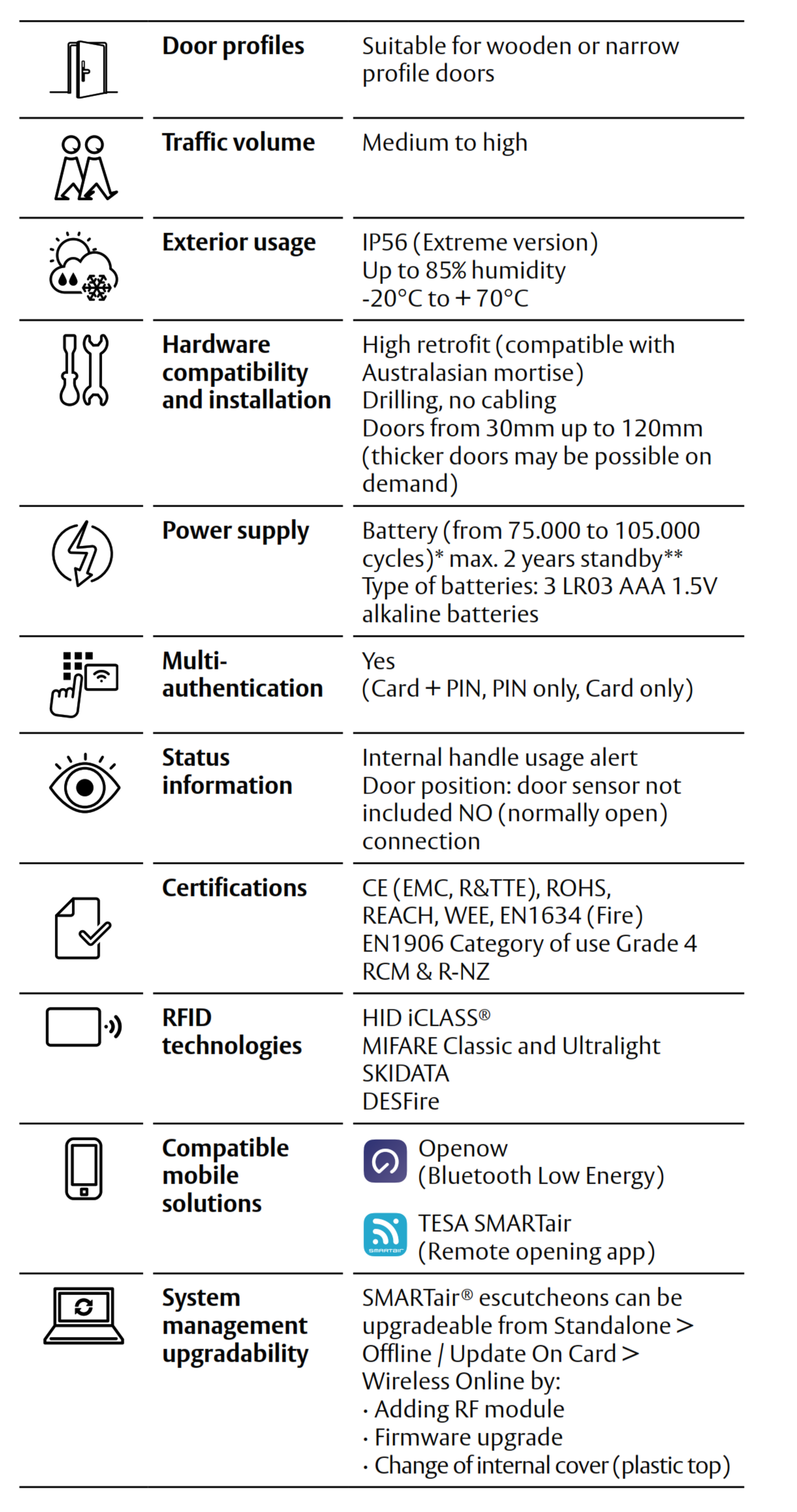

Features Summary
- Ideal for retrofit projects: The escutcheon installs directly onto the door using the existing mechanical mortice lock. No wiring or cabling is required, allowing fast upgrades from mechanical keys to electronic access control.
- Internal electronics protection: All electronic components are positioned on the internal side of the door to reduce tampering risk and improve durability.
Access Methods
-
RFID Credential
HID iCLASS
Openow Mobile
Smartphone Credential

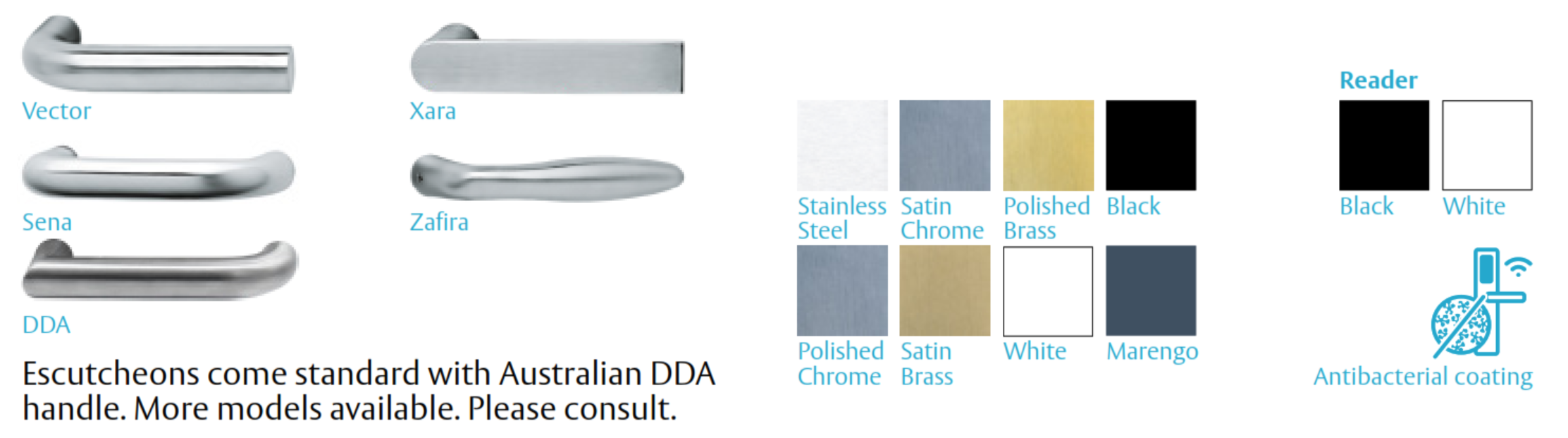

Available Handles and Finishes
System Integration
- Compatible with SMARTair TS1000 access control software.
- Upgradeable to Update-on-Card access management.
- Upgradeable to Wireless Online architecture via communication hubs.
- Upgradeable to Openow mobile credential access using Bluetooth Low Energy.
- Supports integration with other SMARTair electronic devices including escutcheons, wall readers, cylinders and padlocks.
Full Specifications

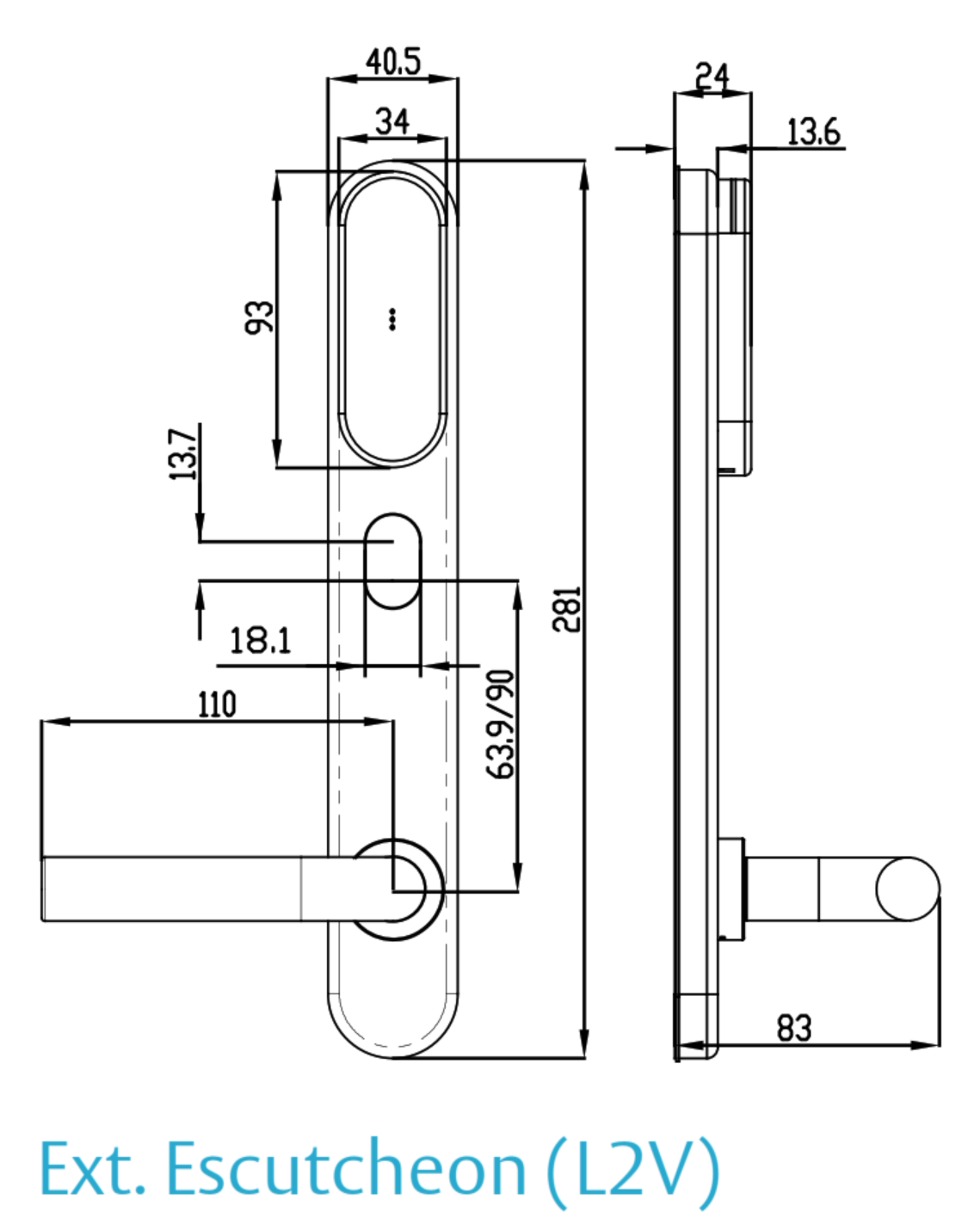

Dimensions
What's In The Box
- SMARTair i-max external escutcheon with integrated HID iCLASS RFID reader
- Internal escutcheon assembly with battery compartment and control electronics
- DDA compliant lever handle set
- Electromechanical clutch spindle mechanism
- Mounting plate and door fixing hardware for standard mortice installations
- Battery holder and 3 × AAA LR03 alkaline batteries
- Installation screws and mounting kit
- Installation and commissioning instructions
SMARTair System Architecture
The ASSA ABLOY SMARTair platform is a modular wireless access control system designed to scale from simple standalone doors to fully networked building security. The same hardware can operate under several different management architectures depending on the software license and communication modules installed.
SMARTair hardware is designed to be upgradeable. A door initially installed as a standalone system can later be upgraded to Update-on-Card, Wireless Online or Openow mobile access without replacing the door hardware.
For a full explanation of system architecture and upgrade paths refer to the SMARTair System Information Guide or the SMARTair Wireless Access Control Overview.
Power Supply and Battery System
- Battery powered electronic escutcheon.
- Battery type: 3 × AAA LR03 alkaline batteries.
- Expected battery life: approx. 75,000 – 105,000 cycles.
- Typical standby duration: up to 2 years.
- Low battery status indicated via LED signals.
- Clock and calendar maintained temporarily during battery replacement.
- Mechanical key override allows emergency access when batteries are depleted.
Item Code Family – SMARTair i-max Escutcheons
The following products belong to the ASSA ABLOY SMARTair i-max electronic escutcheon range. Variants differ by system architecture, mortice compatibility and authentication configuration.
Frequently Asked Questions
What SMARTair system architecture does this escutcheon use?
The SNZB43SL1S008DI operates within the SMARTair Wireless Online architecture. Door devices communicate with wireless gateways that connect to the SMARTair management server, enabling real-time access control updates, audit reporting and centralised system management.
Can this lock be opened with a smartphone?
Yes. This model supports Openow mobile credentials. Authorised users can unlock the door using their smartphone via Bluetooth Low Energy (BLE). Mobile credentials are issued digitally through the SMARTair access control platform.
Does this escutcheon include keypad authentication?
No. The SNZB43SL1S008DI is an RFID-only escutcheon and does not include a keypad. Authentication is performed using HID iCLASS credentials or Openow smartphone credentials.
Does this model have a mechanical key override?
No. This variant is manufactured without a cylinder hole. Emergency access must be managed through system administration or authorised credential access.
Can this escutcheon be installed on existing doors?
Yes. SMARTair escutcheons are designed for retrofit installation and can upgrade existing mortice lock doors to electronic access control without requiring door wiring.
Additional Information
Wireless Online SMARTair Architecture
Wireless Online SMARTair systems allow door devices to communicate with the central access control server via encrypted wireless gateways. This architecture enables real-time credential updates, door status monitoring and audit reporting without requiring wired door controllers.
Openow Mobile Access Technology
Openow allows authorised users to unlock doors using their smartphone via Bluetooth Low Energy. Mobile credentials can be issued remotely and revoked instantly, reducing the need for physical access cards.
Mortice Lock Integration
SMARTair escutcheons do not replace the mechanical lock body. The mortice lock continues to provide the latch and mechanical security while the escutcheon electronically controls handle operation through an electromechanical clutch connected to the lock spindle.
Standard Mortice Door Applications
The SNZB43SL1S008DI is designed for doors fitted with standard mortice locks typically used in timber or steel commercial doors in offices, healthcare facilities and education buildings.
DDA Lever Handle Compliance
This model includes a DDA compliant lever handle designed to assist users with limited grip strength. Compliance applies to handle ergonomics and should be considered as part of the complete accessible door system.
Battery Powered Operation
SMARTair escutcheons are powered by internal batteries, eliminating the need for door wiring. This significantly simplifies installation and allows existing mechanical doors to be upgraded to electronic access control.
ASSA ABLOY branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
- Mechanical components: 10 years
- Electrical and electronic components: 5 years (excluding batteries)
- Cylinders and keys: 3 years
Spare Parts & Accessories
The SMARTair access control platform uses a modular ecosystem of credentials, management devices, lock hardware and integration accessories. The following accessories and system components are commonly used with SMARTair escutcheons and readers.
SMARTair systems are modular and scalable. Additional accessories may be required depending on the installation architecture (Standalone, Update-on-Card, Wireless Online or Openow mobile access).
Compatible Mortice Locks for SMARTair Escutcheons
SMARTair electronic escutcheons are designed to operate with commercial mortice lock bodies. The escutcheon controls the door handle through an electromechanical clutch and split spindle system, which requires the internal spindle and lockcase geometry of a mortice lock.
Tubular latches are not suitable for SMARTair escutcheons because they do not provide the required spindle control or structural lockcase needed for electronic clutch operation.
For reliable installation and long-term durability, SMARTair escutcheons are commonly installed with the following commercial mortice locks:

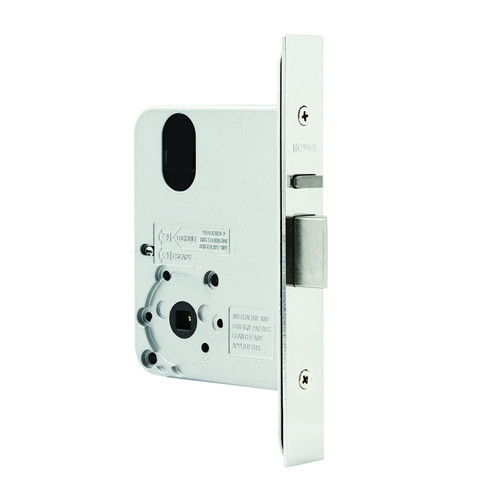

- Lockwood 3572 Series Mortice Locks
Widely used commercial mortice locks suitable for offices, commercial buildings and retrofit installations. - Lockwood 3772 Series Mortice Locks
Heavy-duty commercial mortice locks designed for high-traffic access doors. - Lockwood 3774 Series Mortice Locks
Commercial mortice locks commonly used with access control hardware. - Lockwood 4782 Fire Rated Mortice Locks
Fire-rated mortice locks commonly specified in hotels, apartments and multi-residential buildings where fire door compliance is required.
Choosing the correct mortice lock ensures that the SMARTair escutcheon can reliably control the door handle, maintain proper latch engagement, and meet the mechanical durability requirements expected in commercial access control environments.
