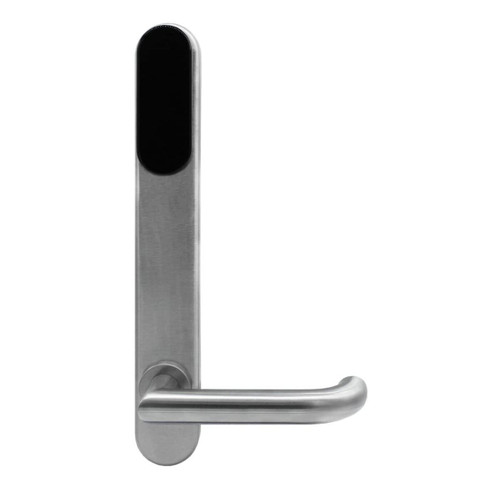

ASSA ABLOY SMARTair i-max Standalone Electronic Escutcheon – HID iCLASS Narrow Mortice DDA Handle with Key Override
The ASSA ABLOY SMARTair i-max electronic escutcheon is a wireless access control device designed to upgrade conventional narrow mortice lock doors into secure credential-controlled access points. This model (SNAB43SL2V908DI) integrates a HID iCLASS RFID reader with a DDA compliant lever handle and mechanical key override in a standalone electronic escutcheon format.
The SMARTair i-max escutcheon enables authorised users to access secured doors using RFID credentials without requiring wiring or external access controllers. The device is powered by internal batteries and mounts directly onto existing doors fitted with compatible narrow mortice locks, making it ideal for retrofit upgrades from traditional mechanical keys.
The escutcheon forms part of the wider SMARTair wireless access control ecosystem, which includes readers, cylinders, padlocks, credentials and management software. A full overview of the system architecture can be found in the SMARTair Wireless Access Control Product Overview and the SMARTair System Information Guide.
Typical applications include offices, laboratories, meeting rooms, healthcare environments, education facilities and other commercial premises where secure credential-based access control is required.
Usually ships in 2–3 business days.
Designed for professional access control installations including offices, universities, healthcare buildings and commercial facilities. SMARTair devices deliver scalable wireless security without door cabling.
Disability Compliance (DDA)
- DDA compliant lever handle design.
- Suitable for accessible commercial door installations.
- Lever geometry assists operation by users with limited grip strength.
- Accessibility compliance relates to handle ergonomics within the overall doorset.
Fire Rated
- Suitable for installation on fire-rated door assemblies.
- Tested for compatibility with fire doors in accordance with EN1634 standards.
- Fire performance depends on the complete doorset and compatible fire-rated lock body.
- Commonly installed with fire-rated mortice locks such as Lockwood 4782.
Key Features
- Standalone wireless electronic escutcheon.
- Integrated HID iCLASS RFID reader.
- Battery powered operation with no door wiring.
- Compatible with narrow mortice lock bodies.
- DDA compliant lever handle.
- Mechanical key override cylinder compatibility.
- Electromechanical clutch spindle control.
- Upgrade path available to SMARTair Update-on-Card or Wireless Online systems.
- Audit trail storage within door device.
- Internal panic function allows free egress.
Features Summary
- The escutcheon installs directly onto doors using the existing mortice lock.
- No door wiring or external power supply required.
- All electronic components are secured on the inside escutcheon.
Access Methods
-
RFID Credential
HID iCLASS
Mechanical Key Override
Emergency Access
Available Handles and Finishes
System Integration
- Compatible with SMARTair TS1000 access control software.
- Upgradeable to Update-on-Card system architecture.
- Upgradeable to Wireless Online architecture via SMARTair hubs.
- Compatible with Openow mobile credential access.
Full Specifications
Dimensions
What's In The Box
- SMARTair i-max external escutcheon with integrated HID iCLASS RFID reader
- Internal escutcheon assembly with battery compartment
- DDA compliant lever handle set
- Spindle and clutch mechanism components
- Mounting plate and fixing hardware
- Mechanical key override cylinder preparation (cylinder supplied separately where required)
- Battery pack (3 × AAA LR03 alkaline batteries)
- Installation screws and mounting kit
- Installation instructions and programming guidance
SMARTair System Architecture
The ASSA ABLOY SMARTair platform is a modular wireless access control system designed to scale from simple standalone doors to fully networked building security. The same hardware can operate under several different management architectures depending on the software license and communication modules installed.
SMARTair hardware is designed to be upgradeable. A door initially installed as a standalone system can later be upgraded to Update-on-Card, Wireless Online or Openow mobile access without replacing the door hardware.
For a full explanation of system architecture and upgrade paths refer to the SMARTair System Information Guide or the SMARTair Wireless Access Control Overview.
Power Supply and Battery System
- Battery powered electronic escutcheon.
- Uses 3 × AAA LR03 alkaline batteries.
- Battery life approximately 75,000 – 105,000 cycles.
- Typical standby life up to 2 years.
- Low battery LED warning indicators.
- Mechanical key override allows emergency entry if batteries are depleted.
Item Code Family – SMARTair i-max Escutcheons
The following products belong to the ASSA ABLOY SMARTair i-max electronic escutcheon range. Variants differ by system architecture, mortice compatibility and authentication configuration.
Frequently Asked Questions
Does this SMARTair escutcheon require door wiring?
No. The SMARTair i-max escutcheon is battery powered and designed for wireless installation. It mounts directly onto doors fitted with compatible narrow mortice locks without running cables through the door or frame.
Can this model be upgraded to a networked SMARTair system?
Yes. Although this model operates in standalone mode, SMARTair hardware is designed to be scalable. With the appropriate modules and software, installations can be upgraded to Update-on-Card or Wireless Online architectures.
What happens if the batteries go flat?
The escutcheon provides LED warnings when batteries are low. If batteries are completely depleted, emergency entry can still be achieved using the mechanical key override cylinder.
Does this model include a keypad?
No. This model provides RFID credential access only. Keypad authentication is available on other SMARTair escutcheon models.
Can the escutcheon be installed on existing doors?
Yes. SMARTair escutcheons are specifically designed for retrofit installations and can upgrade existing mechanical lock doors without replacing the lock body.
Additional Information
Standalone Access Control Operation
This escutcheon operates as a standalone access control device. Users and permissions are programmed directly at the door using SMARTair programming cards, making it suitable for smaller installations or individual secure doors.
Narrow Mortice Lock Compatibility
This model is designed for doors fitted with narrow mortice locks commonly used in aluminium door frames and commercial shopfronts. The escutcheon controls the handle via an electromechanical clutch connected to the mortice lock spindle.
Mechanical Security Remains in the Lock Body
SMARTair escutcheons do not replace the mechanical mortice lock. The lock body continues to provide the primary mechanical security and latching function while the escutcheon controls handle access electronically.
Ideal for Commercial Retrofit Projects
Because the electronics are contained within the escutcheon assembly and powered by internal batteries, SMARTair devices can upgrade existing key-operated doors to electronic access control without running cabling through the door.
Part of the SMARTair Ecosystem
SMARTair devices are part of a modular wireless access control platform that includes wall readers, electronic cylinders, padlocks, cabinet locks and mobile credentials. Installations can grow over time as security requirements increase.
ASSA ABLOY branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:
- Mechanical components: 10 years
- Electrical and electronic components: 5 years (excluding batteries)
- Cylinders and keys: 3 years
Spare Parts & Accessories
The SMARTair access control platform uses a modular ecosystem of credentials, management devices, lock hardware and integration accessories. The following accessories and system components are commonly used with SMARTair escutcheons and readers.
SMARTair systems are modular and scalable. Additional accessories may be required depending on the installation architecture (Standalone, Update-on-Card, Wireless Online or Openow mobile access).
Compatible Mortice Locks for SMARTair Escutcheons
SMARTair electronic escutcheons are designed to operate with commercial mortice lock bodies. The escutcheon controls the door handle through an electromechanical clutch and split spindle system, which requires the internal spindle and lockcase geometry of a mortice lock.
Tubular latches are not suitable for SMARTair escutcheons because they do not provide the required spindle control or structural lockcase needed for electronic clutch operation.
For reliable installation and long-term durability, SMARTair escutcheons are commonly installed with the following commercial mortice locks:
- Lockwood 3572 Series Mortice Locks
Widely used commercial mortice locks suitable for offices, commercial buildings and retrofit installations. - Lockwood 3772 Series Mortice Locks
Heavy-duty commercial mortice locks designed for high-traffic access doors. - Lockwood 3774 Series Mortice Locks
Commercial mortice locks commonly used with access control hardware. - Lockwood 4782 Fire Rated Mortice Locks
Fire-rated mortice locks commonly specified in hotels, apartments and multi-residential buildings where fire door compliance is required.
Choosing the correct mortice lock ensures that the SMARTair escutcheon can reliably control the door handle, maintain proper latch engagement, and meet the mechanical durability requirements expected in commercial access control environments.
ASSA ABLOY Warranty Overview
ASSA ABLOY branded products sold in Australia are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty coverage varies depending on mechanical components, electronic components, cylinders and finish categories.
This overview summarises the structure of ASSA ABLOY warranty coverage. Full terms, exclusions and claim procedures are set out in the official ASSA ABLOY Warranty document.
Warranty Periods Summary
Finish & Material Notes
- Stainless steel does not mean stain-free. Tea staining is not covered where cleaning and maintenance guidelines have not been followed.
- Cosmetic, decorative and appearance damage is not covered.
- Battery failure or battery leakage damage is not covered.
What the Warranty Covers
- Defects in material and workmanship within the applicable period.
- Assessment by ASSA ABLOY to determine repair, replacement with the same or closest equivalent product, or refund of purchase price.
- Remedy determined at ASSA ABLOY’s discretion.
Common Exclusions
- Normal wear and tear.
- Misuse, abuse or installation outside published technical specifications.
- Improper maintenance or neglect.
- Unauthorised modification or repair.
- Use of non-genuine ASSA ABLOY parts or substitute components.
- Exposure to corrosive environments including coastal air, salt spray, chemicals, contamination or high humidity.
- Removal, refitment, freight or labour charges.
- Second-hand or imported products not sold through authorised Australian channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product to the original authorised retailer where applicable.
- If claiming directly, obtain a case number before returning goods.
- Securely package returned goods and clearly reference the case number.
- Warranty assessment determines repair, replacement or refund.
Australian Consumer Law
ASSA ABLOY warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
