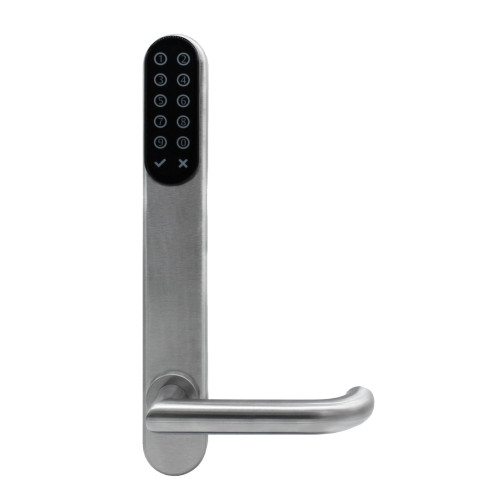

ASSA ABLOY SMARTair i-max Standalone Electronic Escutcheon – HID iCLASS Keypad Narrow Mortice DDA Handle with Key Override
The ASSA ABLOY SMARTair i-max Electronic Escutcheon is a commercial-grade wireless access control device designed to convert traditional mortice lock doors into intelligent credential-based access points. This model (SNAB47SL2V908DI) combines an integrated HID iCLASS RFID reader, keypad authentication, and DDA compliant lever handle in a standalone electronic escutcheon format suitable for narrow mortice lock installations.
The SMARTair i-max escutcheon allows authorised users to access secured doors using RFID credentials or PIN codes without the need for wired controllers or external power supplies. Because the unit is fully battery powered and wireless, installation is typically completed without cabling, making it ideal for retrofitting existing commercial doors.
When required, the device can be upgraded within the SMARTair ecosystem to support additional management architectures such as Update-on-Card, Wireless Online or Openow mobile credential access. These capabilities allow the same hardware platform to evolve alongside building security requirements.
Typical installations include offices, laboratories, meeting rooms, healthcare facilities, education buildings, commercial premises and other controlled-access environments.
Usually ships in 2-3 business days.
Designed for professional access control environments including offices, education facilities, healthcare buildings, laboratories and commercial premises. SMARTair devices deliver scalable wireless access management without door cabling or complex infrastructure.
Disability Compliance (DDA)
- Supplied with DDA compliant lever handle.
- Designed to assist accessibility compliance in commercial and public buildings.
- Lever handle suitable for users with limited grip strength.
- Compliance relates to handle ergonomics only and must be assessed as part of the overall door system.
Fire Rated
- SMARTair electronic escutcheons are suitable for installation on fire-rated door assemblies.
- Tested for compatibility with fire doors in accordance with EN1634 fire resistance standards.
- Fire performance depends on the certified doorset and compatible fire-rated lock body.
- Commonly installed with fire-rated mortice locks such as the Lockwood 4782 series.
Key Features
- Standalone electronic access control escutcheon.
- Integrated HID iCLASS contactless credential reader.
- Integrated keypad supporting PIN authentication.
- Wireless installation – no cabling required.
- Battery powered operation.
- Compatible with narrow mortice lock bodies.
- DDA compliant lever handle.
- Mechanical key override for emergency access.
- Electromechanical clutch with split spindle system.
- LED indicators for credential acceptance, denial and battery status.
- Supports up to approximately 3,000 users.
- Stores up to approximately 1,200 audit events.
- Upgrade path available for Update-on-Card, Wireless Online and Openow mobile access.
- Internal panic function allows free egress.
Features Summary
- Ideal for retrofit projects: The escutcheon installs directly onto the door using the existing mechanical mortice lock. No wiring or cabling is required, allowing fast upgrades from mechanical keys to electronic access control.
- Internal electronics protection: All electronic components are positioned on the internal side of the door to reduce tampering risk and improve durability.
Access Methods
-
RFID Credential
HID iCLASS
PIN Code
Keypad Entry-
Card + PIN
Two-Factor Access -
PIN + Card
Sequential Authentication
Mechanical Key
Emergency Override
Available Handles and Finishes
System Integration
- Compatible with SMARTair TS1000 access control software.
- Upgradeable to Update-on-Card access management.
- Upgradeable to Wireless Online architecture via communication hubs.
- Upgradeable to Openow mobile credential access using Bluetooth Low Energy.
- Supports integration with other SMARTair electronic devices including escutcheons, wall readers, cylinders and padlocks.
Full Specifications
Dimensions
What's In The Box
- SMARTair i-max external escutcheon
- Internal escutcheon assembly
- DDA compliant lever handle set
- Mounting hardware and spindle components
- Battery pack
- Installation instructions
SMARTair System Architecture
The ASSA ABLOY SMARTair platform is a modular wireless access control system designed to scale from simple standalone doors to fully networked building security. The same hardware can operate under several different management architectures depending on the software license and communication modules installed.
SMARTair hardware is designed to be upgradeable. A door initially installed as a standalone system can later be upgraded to Update-on-Card, Wireless Online or Openow mobile access without replacing the door hardware.
For a full explanation of system architecture and upgrade paths refer to the SMARTair System Information Guide or the SMARTair Wireless Access Control Overview.
Power Supply and Battery System
- Battery powered electronic escutcheon.
- Battery type: 3 × AAA LR03 alkaline batteries.
- Expected battery life: approx. 75,000 – 105,000 cycles.
- Typical standby duration: up to 2 years.
- Low battery status indicated via LED signals.
- Clock and calendar maintained temporarily during battery replacement.
- Mechanical key override allows emergency access when batteries are depleted.
Item Code Family – SMARTair i-max Escutcheons
The following products belong to the ASSA ABLOY SMARTair i-max electronic escutcheon range. Variants differ by system architecture, mortice compatibility and authentication configuration.
Frequently Asked Questions
Does this SMARTair escutcheon require wiring?
No. SMARTair i-max escutcheons are battery powered and designed for wireless installation. The device mounts directly onto doors fitted with compatible mortice locks and does not require cabling through the door or frame.
Can this escutcheon be upgraded to a networked access control system later?
Yes. SMARTair hardware is designed to be scalable. Standalone devices can typically be upgraded to Update-on-Card, Wireless Online or Openow mobile access systems through firmware changes and additional communication modules.
What happens if the batteries fail?
The escutcheon provides low battery warning signals through LED indicators. If the batteries become depleted, emergency access can still be obtained using the mechanical key override cylinder.
Can this lock be installed on existing doors?
Yes. The SMARTair i-max escutcheon is designed specifically for retrofit projects. It installs directly onto doors fitted with compatible mortice locks without replacing the lock body or running wiring.
What types of credentials can be used with this escutcheon?
This model supports HID iCLASS RFID credentials and keypad PIN authentication. Other SMARTair devices in the ecosystem may also support mobile credentials using the Openow smartphone app.
Additional Information
Commercial Access Control Retrofit
SMARTair electronic escutcheons are designed to convert conventional mortice lock doors into electronic access control doors without replacing the lock body. This makes them particularly suitable for retrofit installations in offices, healthcare facilities, education buildings and commercial premises.
Access Control System Architecture
SMARTair systems consist of three main components: electronic door devices, credentials and management software. Depending on the system configuration, installations may operate as standalone devices, Update-on-Card systems, Wireless Online networks or mobile credential platforms using Openow.
Mechanical Lock Compatibility
SMARTair escutcheons do not replace the mechanical lock body. Instead they control the handle operation through an electromechanical clutch connected to the mortice lock spindle. The underlying lock continues to provide the mechanical security and latch mechanism.
High Traffic Door Applications
The i-max escutcheon is designed for medium to high traffic doors such as offices, meeting rooms, laboratories and staff-only areas. The robust construction and Grade 4 durability rating make it suitable for demanding commercial environments.
Credential Management
Users are added or removed through the SMARTair management platform. Access permissions, schedules and audit trails can be configured using SMARTair TS1000 software depending on the system architecture deployed.
