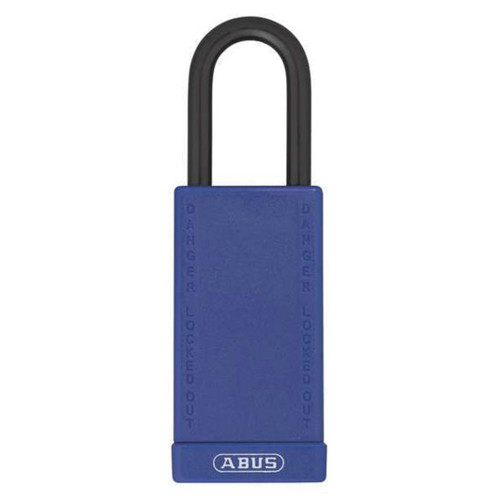

ABUS Padlock 74/40 – Insulated Aluminium Safety Padlock
The ABUS Padlock 74/40 is a vinyl-encased aluminium safety padlock designed for electrical isolation, lockout and maintenance applications. The insulated body and shackle help reduce the risk of electric shock, while colour-coded options support clear visual identification in safety systems.
Key Features
- Insulated vinyl-encased body and shackle for electrical safety.
- Solid aluminium core.
- Hardened steel shackle with Nano-Protect plating.
- Special 6 pin keyway (WB25L).
- Key retaining design – key cannot be removed unless the shackle is closed.
- Automatic locking – shackle can be snap shut.
- Supplied keyed to differ as standard.
Specifications
- Padlock Type: Safety padlock
- Body Material: Aluminium core with vinyl insulation
- Body Width: 40 mm
- Finish: Varies by colour option
- Shackle Material: Hardened steel with Nano-Protect plating
- Shackle Diameter: 6.75 mm
- Vertical Shackle Clearance: 38 mm
- Horizontal Shackle Clearance: 19 mm
- Keyway: WB25L (6 pin)
- Key Retaining: Yes
- Re-keyable: No (drive-in pins)
Suitable Uses
- Electrical lockout and isolation procedures.
- Maintenance and safety compliance programs.
- Facilities requiring insulated locking devices.
- Colour-coded safety systems.
Download PDF Resources
|
ABUS Padlocks Catalogue |
Frequently Asked Questions
Is the ABUS 74/40 re-keyable?
No. The padlock uses drive-in pins, making it keyable but not re-keyable.
Why is the key retained?
Key retention ensures the padlock cannot be left unlocked during safety procedures.
Is this padlock suitable for high security use?
No. It is designed for safety and isolation rather than resistance to forced attack.
Additional Information
- This model is commonly specified for electrical lockout tagout compliance.
- Colour selection does not affect mechanical performance.
- Key retention supports procedural safety by preventing unlocked conditions.
- Widely used across Australian industrial and maintenance environments.
