ABUS 65/30 Premium Brass Padlock – Long Shackle – Keyed Alike
The ABUS 65/30 is a general-purpose solid brass padlock supplied with a 60 mm extended hardened steel shackle for applications where additional reach is required. This version is keyed alike to KA301, allowing multiple padlocks to be operated with the same key. It is suitable for lockers, cabinets, chains, and deep-set hasps in indoor and sheltered environments.
Key Features
- 30 mm solid brass body for durability and corrosion resistance.
- Extended hardened steel shackle with Nano-Protect coating.
- 60 mm vertical shackle clearance for deep or offset locking points.
- Precision pin tumbler cylinder.
- Internal components manufactured from non-corrosive materials.
- Supplied keyed alike to KA301.
- Supplied boxed.
Specifications
- Item Code: 6530HB60KA1
- Model: 65/30
- Keying: Keyed alike (KA301)
- Body Width: 30 mm
- Body Material: Brass
- Shackle Material: Hardened steel (Nano-Protect coating)
- Shackle Diameter: 5 mm
- Horizontal Shackle Clearance: 16 mm
- Vertical Shackle Clearance: 60 mm (extended shackle)
- Key Blank: AB12
- Rekeyable: No
Choosing the Right Padlock Size
- 15 mm body – Very compact padlocks for tags and very light-duty indoor use.
- 20 mm body – Small general-purpose size for lockers and cabinets.
- 30 mm body (this model) – Greater durability for frequent use and general-purpose locking.
Environment Suitability
- Indoor Use: Recommended.
- Sheltered Outdoor Use: Suitable.
- Fully Exposed Outdoor Use: Not recommended – consider stainless or weather-protected models.
Suitable Uses
- Deep-set hasps and locking points
- Chains and offset fittings
- Lockers and cabinets requiring extra reach
- Light commercial access control

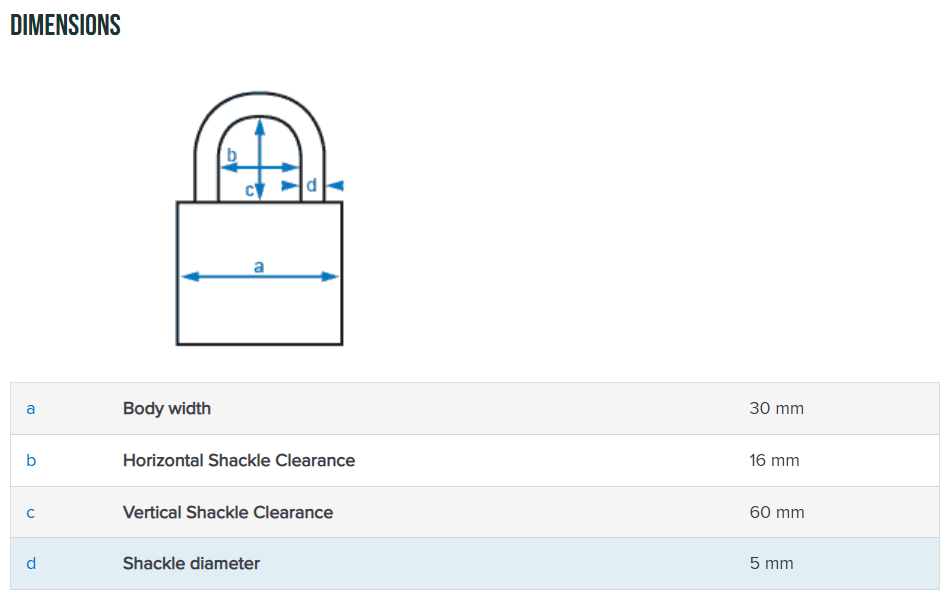

ABUS Brass Padlocks – Size & Shackle Comparison
Download PDF Resources
 |
ABUS Padlocks Catalogue |
Additional Information
- Extended shackle padlocks provide reach but expose more shackle than standard versions.
- Choose the shortest shackle that comfortably fits your locking point to minimise attack exposure.
- Keyed alike configurations simplify access management across multiple locks.
