Name: Lockwood 7726SRDA Slide Arm Door Closer
Brand: Lockwood
SKU: STK 7726SRDA
Availability: InStock

Description

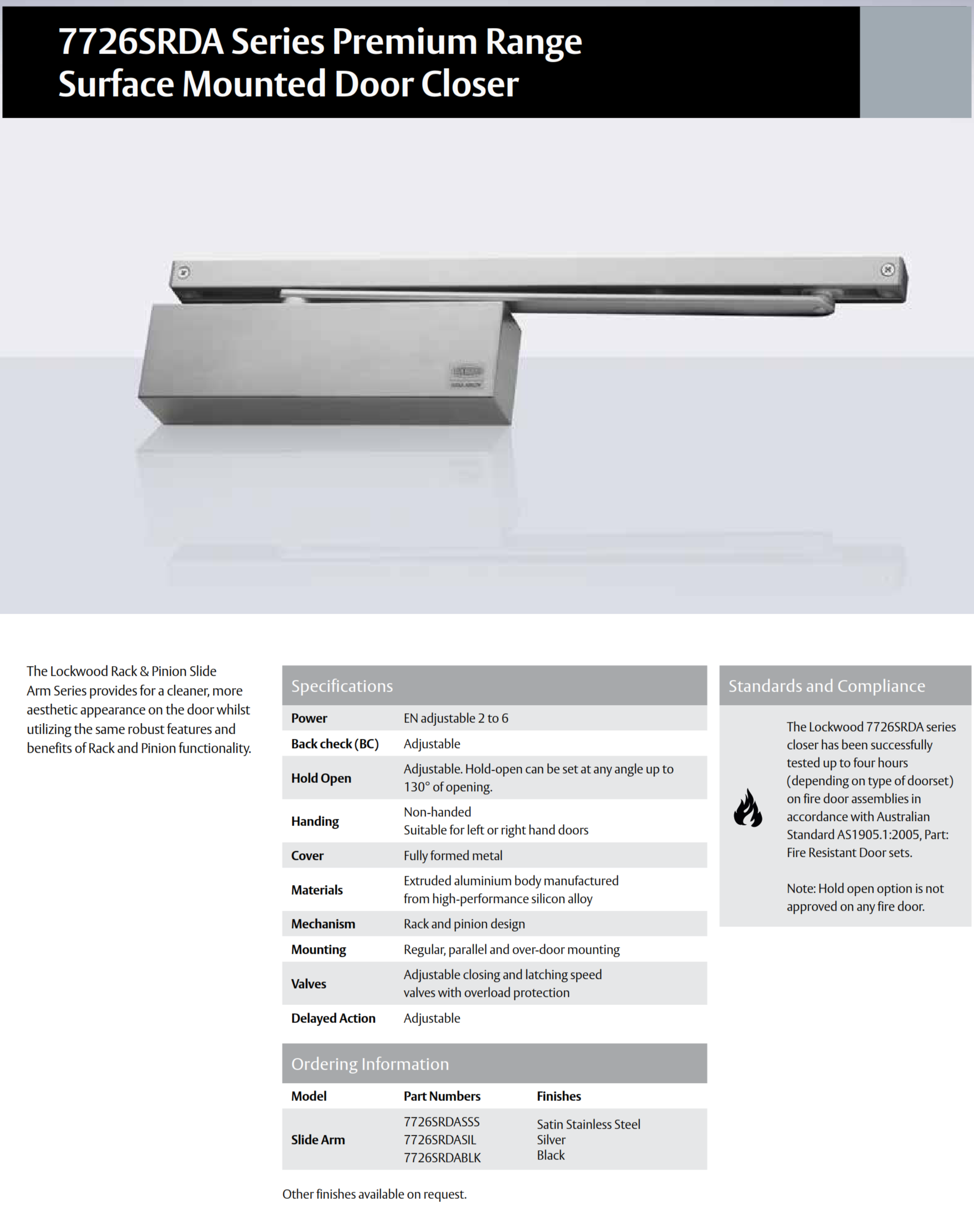

Lockwood 7726SRDA Slide Arm Door Closer

The Lockwood 7726SRDA is a slide arm premium door closer for commercial and architectural use. It features a rack and pinion mechanism with EN2–6 adjustable power, adjustable backcheck, and independent closing and latching speeds. The streamlined slide rail design provides a low-profile appearance while ensuring durability. Fire tested up to 4 hours for use on rated door assemblies.

Estimated Warehouse Dispatch: 2 Days

Key Features

Premium slide arm closer with a discreet, low-profile design.
EN2–6 adjustable power for flexibility across door sizes.
Independent adjustment for closing and latching speeds.
Adjustable backcheck for controlled opening.
Suitable for doors up to 1400 mm wide.
Multi-position mounting: regular and over-door.
Fire tested up to 4 hours (AS1905.1).

Fire Rated

Tested for up to 4 hours on fire door assemblies (AS1905.1).
Hold-open variants are not approved for fire-rated doors.

Specifications

Item Code: 7726SRDA
Type: Slide arm door closer
Power: EN2–6 adjustable
Backcheck: Adjustable
Mechanism: Rack and pinion with slide rail
Mounting: Regular and over-door
Finishes: Black (7726SRDABLK), Silver (7726SRDASIL), Satin Stainless Steel (7726SRDASSS)

Available Finish Options

Black
7726SRDABLK
Silver
7726SRDASIL
Satin Stainless Steel
7726SRDASSS

Lockwood 7726 Series — Item Code Family

Item Code	Function	Description	Available Finishes
7726DA	Standard Arm	Premium rack & pinion closer, EN2–6 adjustable, with backcheck and clip-on cover.	Black (7726DABLK), Bronze (7726DABRN), Silver (7726DASIL), Satin Stainless Steel (7726DASSS)
7726SRDA	Slide Arm	Slide rail version, EN2–6 adjustable, streamlined design with clip-on cover.	Black (7726SRDABLK), Silver (7726SRDASIL), Satin Stainless Steel (7726SRDASSS)
7726HDA	Hold Open	Hold-open model (not approved for fire doors), EN2–6 adjustable, premium cover.	Silver (7726HDASIL), Satin Stainless Steel (7726HDASSS)
7726-171	Formed Cover Kit	Replacement formed cover for 7726 Series closers.	Gold (7726-171GLD), Polished Stainless Steel (7726-171PSS), Silver (7726-171SIL), Satin Stainless Steel (7726-171SSS)
SP7726-153	Opening Damper	Accessory to brake the door before striking a stop, protecting closer and frame.	Gold (SP7726-153GLD), Silver (SP7726-153SIL)
7726-180SIL	Mounting Plate	Mounting plate for glazed doors with narrow or small top rails, provides clearance.	Silver
SP7726-224SIL	Parallel Arm Bracket	Bracket accessory to enable parallel arm mounting of 7726 Series closers.	Silver
SP7726-444SSS	Formed Cover Plate	Replacement cover plate for 7726 Series closer.	Satin Stainless Steel
SP7726-119	Angle Bracket	Angle bracket for special mounting conditions.	Silver
SP7726-450	Hold-Open Arm	Accessory arm assembly with hold-open feature (not for fire doors).	Standard
SP7726-806314 / SP7726-806318	Spindle Adaptors	Accessory spindle adaptors for special installation requirements.	Silver
SP7726-159SIL	Drop Plate	Drop plate accessory for doors with restricted top rails.	Silver
SP7726-219	Fixing Kit	Complete fixing kit for 7726 Series installation.	Standard
SP7726-431LSIL / SP7726-430SIL / SP7726-432	Arm & Slide Rail Sets	Replacement arms and slide rails for 7726 Series closers.	Silver

Warranty

General Warranty: 25 years on mechanical parts and workmanship
Electrical/Electronic Components: 3 years (excludes PADDE, electric mortice locks & batteries). Batteries not covered
PADDE & Electric Mortice Locks: 5 years
Keys: 12 months
Finishes: Everbrass 25 yrs; Stainless/Chrome/Anodised 10 yrs; PVD incl. VIVID 10 yrs; Symmetry range 5 yrs; Decorative finishes (Bronze, Antique, Powdercoat) 2 yrs; natural brass ageing excluded
Stainless Steel: Warranty excludes natural tea staining if not cleaned per care instructions
