Lockwood 7726HDA- Satin Stainess Steel Hold Open Door Closer - Satin Stainess Steel

Lockwood 7726HDA- Satin Stainess Steel Hold Open Door Closer - Satin Stainess Steel

Lockwood

Was: $1,255.26
Now: $924.01
(No reviews yet) Write a Review
SKU:
STK 7726HDASSS
UPC:
9340116000770
Adding to cart… The item has been added

Lockwood 7726HDASSS Hold Open Door Closer — Satin Stainless Steel

The Lockwood 7726HDASSS is a hold open door closer from the premium 7726 Series. With EN2–6 adjustable power, adjustable backcheck, and independent closing and latching speed control, it offers reliable control for commercial and architectural applications. The hold-open function is convenient for frequently used doors but is not approved for fire-rated installations.

Delivery truck icon Estimated Warehouse Dispatch: 2 Days

Key features icon Key Features

  • Premium rack and pinion closer for architectural/commercial use.
  • EN2–6 adjustable power to suit a wide range of doors.
  • Adjustable backcheck, closing, and latching speeds.
  • Hold-open function keeps door fixed at an open angle until released.
  • Clip-on stainless steel cover for durability and clean finish.
  • Multi-position mounting: regular, parallel arm, and over-door.
  • Not approved for fire-rated doors.

Fire rating icon Fire Rated

  • Tested for up to 4 hours on fire door assemblies (AS1905.1).
  • Hold-open function is not fire rated.

Specifications icon Specifications

  • Item Code: 7726HDASSS
  • Type: Hold open door closer
  • Finish: Satin Stainless Steel
  • Power: EN2–6 adjustable
  • Backcheck: Adjustable
  • Mechanism: Rack and pinion
  • Cover: Stainless steel clip-on
  • Mounting: Regular, parallel arm, over-door

Finish options icon Available Finish Options

  • Satin Stainless Steel Finish
    Satin Stainless Steel
    7726HDASSS

Product code list icon Lockwood 7726 Series — Item Code Family

Item Code Function Description Available Finishes
7726DA Standard Arm Premium rack & pinion closer, EN2–6 adjustable, with backcheck and clip-on cover. Black (7726DABLK), Bronze (7726DABRN), Silver (7726DASIL), Satin Stainless Steel (7726DASSS)
7726SRDA Slide Arm Slide rail version, EN2–6 adjustable, streamlined design with clip-on cover. Black (7726SRDABLK), Silver (7726SRDASIL), Satin Stainless Steel (7726SRDASSS)
7726HDA Hold Open Hold-open model (not approved for fire doors), EN2–6 adjustable, premium cover. Silver (7726HDASIL), Satin Stainless Steel (7726HDASSS)
7726-171 Formed Cover Kit Replacement formed cover for 7726 Series closers. Gold (7726-171GLD), Polished Stainless Steel (7726-171PSS), Silver (7726-171SIL), Satin Stainless Steel (7726-171SSS)
SP7726-153 Opening Damper Accessory to brake the door before striking a stop, protecting closer and frame. Gold (SP7726-153GLD), Silver (SP7726-153SIL)
7726-180SIL Mounting Plate Mounting plate for glazed doors with narrow or small top rails, provides clearance. Silver
SP7726-224SIL Parallel Arm Bracket Bracket accessory to enable parallel arm mounting of 7726 Series closers. Silver
SP7726-444SSS Formed Cover Plate Replacement cover plate for 7726 Series closer. Satin Stainless Steel
SP7726-119 Angle Bracket Angle bracket for special mounting conditions. Silver
SP7726-450 Hold-Open Arm Accessory arm assembly with hold-open feature (not for fire doors). Standard
SP7726-806314 / SP7726-806318 Spindle Adaptors Accessory spindle adaptors for special installation requirements. Silver
SP7726-159SIL Drop Plate Drop plate accessory for doors with restricted top rails. Silver
SP7726-219 Fixing Kit Complete fixing kit for 7726 Series installation. Standard
SP7726-431LSIL / SP7726-430SIL / SP7726-432 Arm & Slide Rail Sets Replacement arms and slide rails for 7726 Series closers. Silver

Warranty icon Warranty

  • General Warranty: 25 years on mechanical parts and workmanship
  • Electrical/Electronic Components: 3 years (excludes PADDE, electric mortice locks & batteries). Batteries not covered
  • PADDE & Electric Mortice Locks: 5 years
  • Keys: 12 months
  • Finishes: Everbrass 25 yrs; Stainless/Chrome/Anodised 10 yrs; PVD incl. VIVID 10 yrs; Symmetry range 5 yrs; Decorative finishes (Bronze, Antique, Powdercoat) 2 yrs; natural brass ageing excluded
  • Stainless Steel: Warranty excludes natural tea staining if not cleaned per care instructions

PDF icon Download PDF Resources

PDF icon Lockwood 25 Year Mechanical Warranty (Conditions Apply)

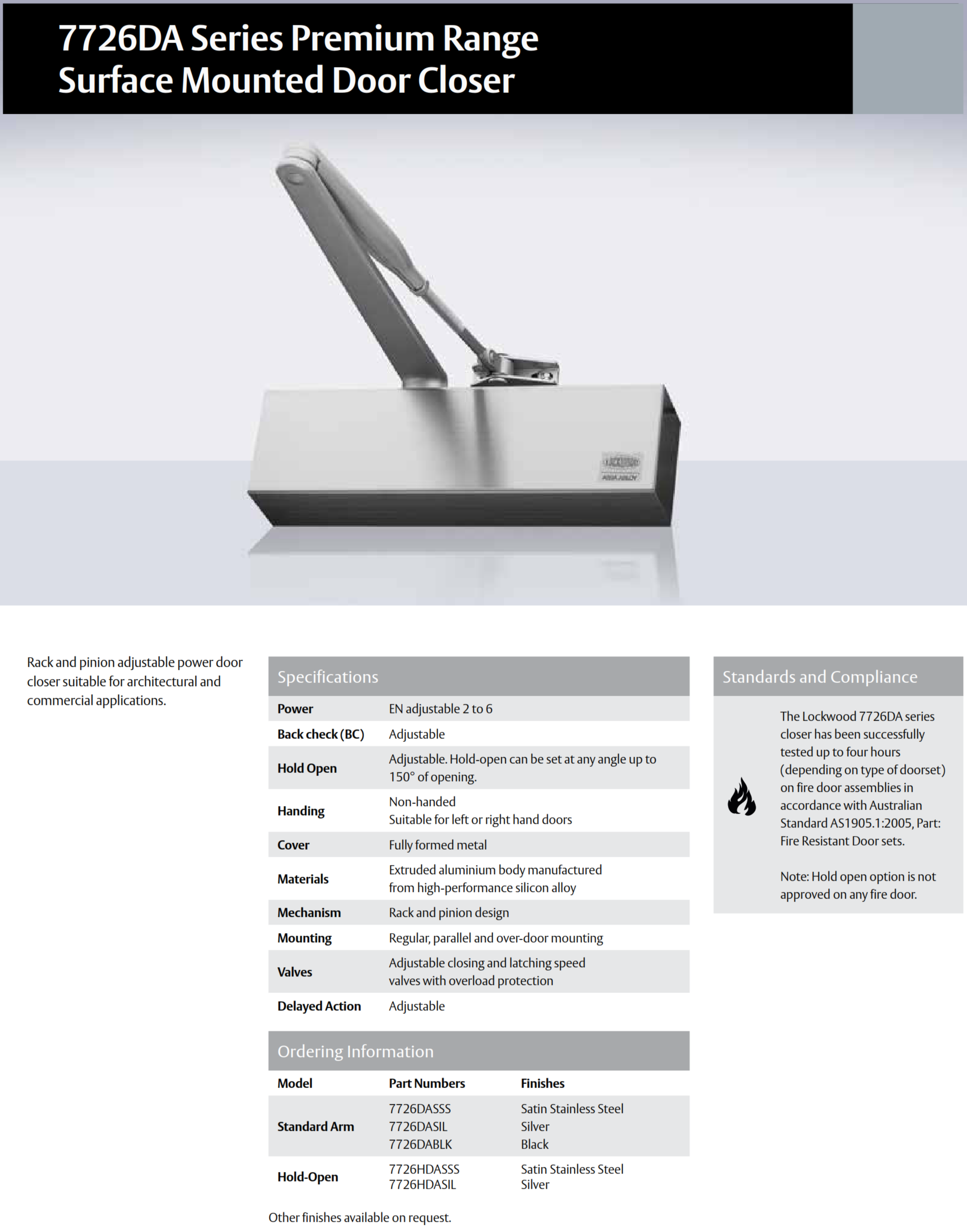

PDF icon Lockwood Surface Mounted Door Closers Catalogue

!
