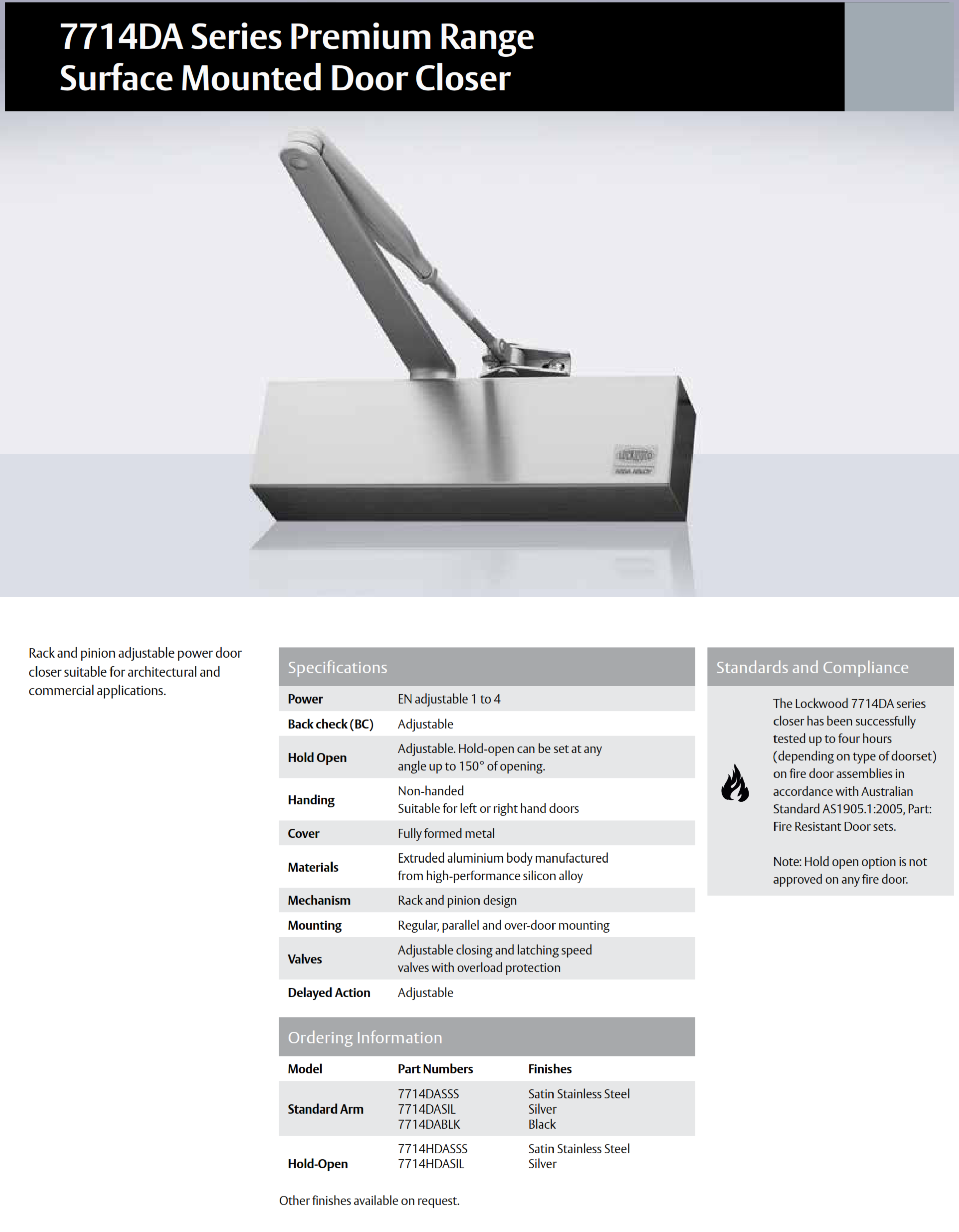

Lockwood 7714HDA Hold Open Door Closer
The Lockwood 7714HDA is a hold open door closer from the 7714 Series. It features a rack and pinion mechanism with EN1–4 adjustable power, adjustable backcheck, and independent closing and latching speed control. The hold-open function provides convenience for frequently used doors but is not approved for fire-rated door assemblies.
Estimated Warehouse Dispatch: 2 Days
Key Features
- Hold open function for convenience in high-traffic areas.
- EN1–4 adjustable power for medium-duty doors.
- Rack and pinion mechanism with adjustable backcheck.
- Independent valves for closing and latching speed.
- Multi-position mounting: regular, parallel arm, and over-door.
- Suitable for doors up to 1100 mm wide.
- Hold open function is not approved for fire-rated doors.
Fire Rated
- Successfully tested up to 4 hours on fire door assemblies (AS1905.1).
- Hold open function is not approved for fire doors.
Specifications
- Item Code: 7714HDA
- Type: Hold open door closer
- Power: EN1–4 adjustable
- Backcheck: Adjustable
- Mechanism: Rack and pinion
- Mounting: Regular, parallel arm, and over-door
- Finishes: Silver (7714HDASIL), Satin Stainless Steel (7714HDASSS)
Available Finish Options
Silver
7714HDASIL
Satin Stainless Steel
7714HDASSS
Lockwood 7714 Series — Item Code Family
Warranty
- General Warranty: 25 years on mechanical parts and workmanship
- Electrical/Electronic Components: 3 years (excludes PADDE, electric mortice locks & batteries). Batteries not covered
- PADDE & Electric Mortice Locks: 5 years
- Keys: 12 months
- Finishes: Everbrass 25 yrs; Stainless/Chrome/Anodised 10 yrs; PVD incl. VIVID 10 yrs; Symmetry range 5 yrs; Decorative finishes (Bronze, Antique, Powdercoat) 2 yrs; natural brass ageing excluded
- Stainless Steel: Warranty excludes natural tea staining if not cleaned per care instructions
