Lockwood Slide Arm Door Closer (7714SRDA)

Lockwood Slide Arm Door Closer (7714SRDA)

Lockwood

$606.17 - $778.09
(No reviews yet) Write a Review
SKU:
STK 7714SRDA
UPC:
6506678617371
Adding to cart… The item has been added

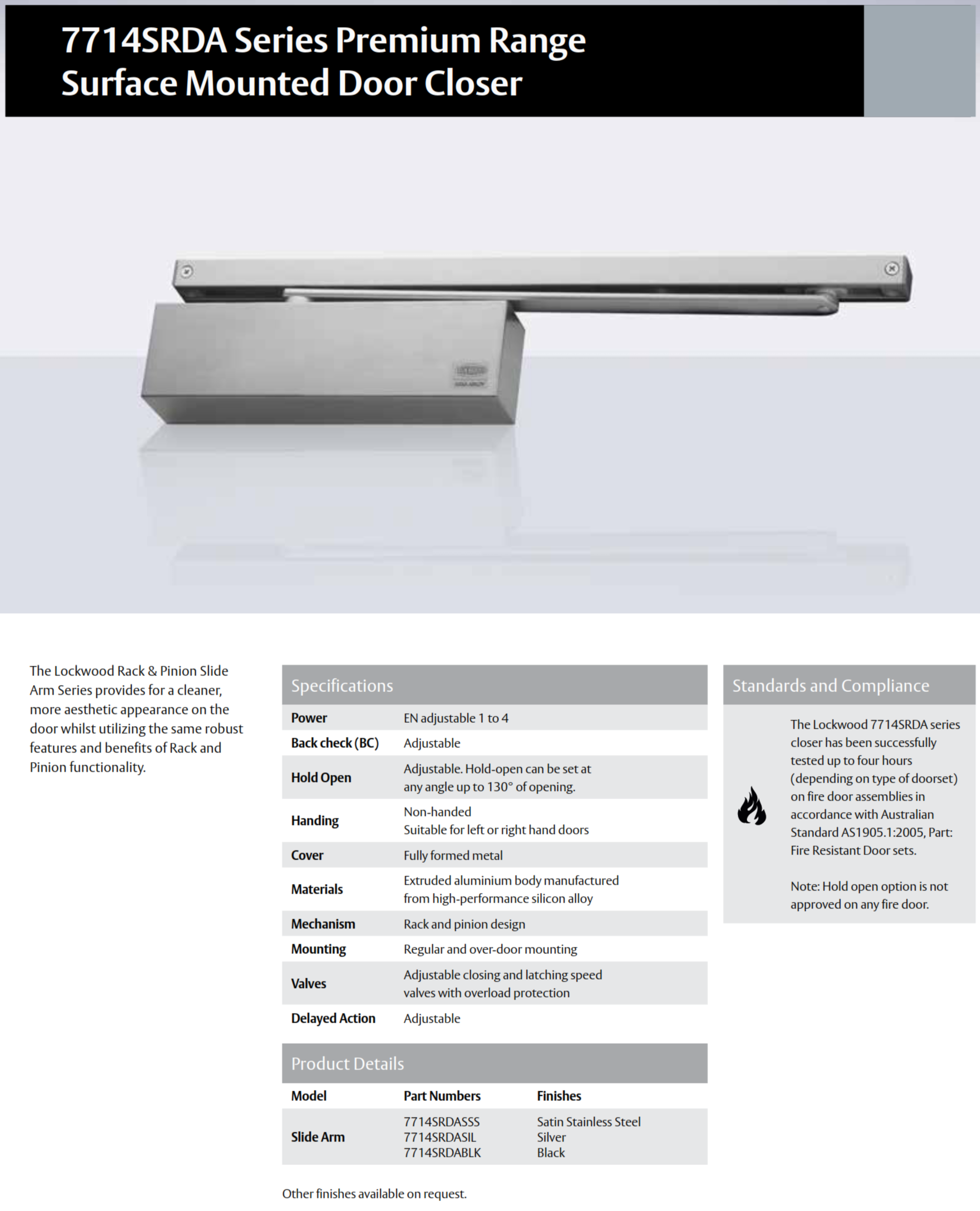

Lockwood 7714SRDA Slide Arm Door Closer

The Lockwood 7714SRDA is a slide arm door closer designed for architectural and commercial use. It provides EN1–4 adjustable power, a streamlined slide rail design for low-profile installation, and features including adjustable backcheck, closing, and latching speed. Tested on fire-rated door assemblies for up to 4 hours, it combines durability with a clean architectural finish.

Delivery truck icon Estimated Warehouse Dispatch: 2 Days

Key features icon Key Features

  • Slide arm mechanism for a streamlined appearance.
  • EN1–4 adjustable power for light to medium doors.
  • Rack and pinion design with adjustable backcheck.
  • Independent valves for closing and latching speed control.
  • Suitable for doors up to 1100 mm wide.
  • Regular and over-door mounting options.
  • Fire tested up to 4 hours (AS1905.1).

Fire rating icon Fire Rated

  • Tested for fire resistance up to 4 hours on fire door assemblies (AS1905.1).
  • Hold-open functions are not approved for fire-rated doors.

Specifications icon Specifications

  • Item Code: 7714SRDA
  • Type: Slide arm door closer
  • Power: EN1–4 adjustable
  • Backcheck: Adjustable
  • Mechanism: Rack and pinion with slide rail
  • Mounting: Regular and over-door
  • Finishes: Black (7714SRDABLK), Silver (7714SRDASIL), Satin Stainless Steel (7714SRDASSS)

Finish options icon Available Finish Options

  • Black
    Black
    7714SRDABLK
  • Silver
    Silver
    7714SRDASIL
  • Satin Stainless Steel
    Satin Stainless Steel
    7714SRDASSS

Product code list icon Lockwood 7714 Series — Item Code Family

Item Code Function Description Available Finishes
7714DA Standard Arm Rack & pinion door closer, EN1–4 adjustable power, with backcheck. Black (7714DABLK), Bronze (7714DABRN), Silver (7714DASIL)
7714SRDA Slide Arm Slide rail version, EN1–4 adjustable power, streamlined design. Black (7714SRDABLK), Silver (7714SRDASIL), Satin Stainless Steel (7714SRDASSS)
7714HDA Hold Open Hold-open model, EN1–4 adjustable power. Hold-open not fire rated. Silver (7714HDASIL), Satin Stainless Steel (7714HDASSS)
SP7714-224 Parallel Arm Bracket Accessory bracket for parallel arm mounting of 7714 series closers. Gold (SP7714-224GLD), Silver (SP7714-224SIL)
7714-135SIL Drop Plate Drop plate accessory for doors with narrow or glazed top rails. Silver
SP7714-119 Angle Bracket Angle bracket accessory for special mounting conditions. Silver
SP7714-444SSS Formed Cover Plate Replacement formed cover plate for 7714 series closers. Satin Stainless Steel
SP7714-153SIL Opening Damper Accessory to brake the door before striking a fixed stop. Silver
7714-130SIL Mounting Plate Mounting plate for glazed doors with narrow or small top rails. Silver

Warranty icon Warranty

  • General Warranty: 25 years on mechanical parts and workmanship
  • Electrical/Electronic Components: 3 years (excludes PADDE, electric mortice locks & batteries). Batteries not covered
  • PADDE & Electric Mortice Locks: 5 years
  • Keys: 12 months
  • Finishes: Everbrass 25 yrs; Stainless/Chrome/Anodised 10 yrs; PVD incl. VIVID 10 yrs; Symmetry range 5 yrs; Decorative finishes (Bronze, Antique, Powdercoat) 2 yrs; natural brass ageing excluded
  • Stainless Steel: Warranty excludes natural tea staining if not cleaned per care instructions

PDF icon Download PDF Resources

PDF icon Lockwood 25 Year Mechanical Warranty (Conditions Apply)
PDF icon Lockwood Surface Mounted Door Closers Catalogue



!
