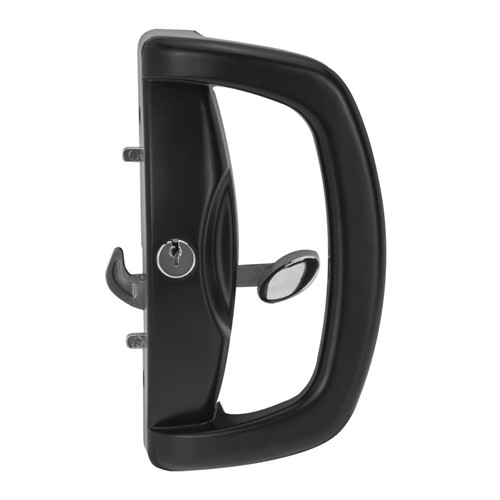

Whitco Blaxland Sliding Door Lock – 5 Pin Double Cylinder Coded Offset Outer Pull Extra Width Strike 32mm – Black (W500417CD)
Estimated Warehouse Dispatch: 7 business days
Key Features
- Whitco Blaxland sliding patio door deadlock with double cylinder configuration.
- Supplied with inside and outside 5 pin C4 cylinders coded for custom keying.
- Zinc diecast internal D handle with zinc diecast offset outer pull.
- Extra width strike plate supplied.
- Surface mounted lock suitable for residential aluminium and timber sliding doors.
- Non-handed design suitable for left or right hand sliding doors.
- Integral anti-lift pins resist attempts to lift the door out of the track.
- Adjustable stainless steel locking beak with approximately 6 mm closing adjustment.
- Self retracting locking beak helps prevent accidental lockout and damage.
- Compatible with a wide range of Whitco outer pulls and strikes.
Specifications
- Item Code: W500417CD
- Product Series: Whitco Blaxland
- Lock Type: Sliding Patio Door Deadlock
- Cylinder Configuration: Double Cylinder
- Cylinder Type: 5 Pin C4 Cylinder
- Cylinder Keying: Coded (keying options selected at checkout)
- Outer Pull: Zinc Diecast Offset Outer Pull
- Strike Type: Extra Width Strike
- Screw Length: 32 mm
- Fixing Centres: 82 mm
- Mounting: Surface Mounted
- Material: Zinc Diecast
- Finish: Black
- Standard: Australian Standard AS4145.2 – 1993
- Door Type: Aluminium or Timber Sliding Doors
- Manufacturing: Australian made lock body with imported cylinder
Frequently Asked Questions
What does coded cylinder mean?
A coded cylinder means the lock cylinders are supplied without keys so they can be keyed to match existing locks or specific keying systems when ordered.
What type of doors is the Blaxland lock suitable for?
Whitco Blaxland sliding door locks are designed for residential aluminium and timber sliding patio doors and mount to the internal door stile.
Can this lock be keyed alike with other Whitco locks?
Yes. Blaxland locks use Whitco C4 5 pin cylinders and can be keyed alike with other Whitco and Lockwood products that use C4 or CYL4 cylinders.
Is the lock handed?
No. The Blaxland lock is non-handed and can be installed on either left-hand or right-hand sliding doors.
Additional Information
- The Whitco Blaxland sliding door lock is one of the most widely installed residential sliding door locksets in Australia.
- Zinc diecast construction provides durability and corrosion resistance for long-term residential use.
- The adjustable locking beak allows approximately 6 mm of closing adjustment to accommodate door alignment or frame wear.
- Integral anti-lift pins help prevent the sliding door panel from being lifted out of the track when the lock is engaged.
- Standard 82 mm fixing centres allow replacement of many older sliding door locks without modification.
- Blaxland locks use Whitco C4 cylinders which can be keyed alike with compatible Whitco and Lockwood locking systems.
Dimensions
Whitco branded products are covered by a 10 Year manufacturer warranty against defects in materials and workmanship.
- Pneumatic door closers: 12 months
- Keys: 12 months
- Finishes and cosmetic damage: excluded
- Removal, refitment and labour: excluded
Whitco Warranty Overview
Whitco branded products are manufactured by ASSA ABLOY Australia Pty Ltd and are covered by manufacturer warranties applicable to products sold in Australia. The warranty covers defects in material and workmanship subject to limitations, exclusions and proper installation and maintenance.
This summary outlines the key elements of Whitco warranty coverage. Full warranty terms, claim procedures and exclusions are detailed in the official Whitco warranty documentation.
Warranty Periods Summary
Finish & Material Notes
- Stainless steel is corrosion resistant but not stain-proof.
- Tea staining may occur if products are not cleaned and maintained in accordance with manufacturer recommendations.
- Cosmetic finish deterioration or appearance damage is not covered by warranty.
What the Warranty Covers
- Defects in materials and workmanship within the applicable warranty period.
- Assessment by ASSA ABLOY to determine whether warranty coverage applies.
- Repair, replacement with the same or closest equivalent product, or refund of purchase price at ASSA ABLOY's' discretion.
Common Warranty Exclusions
- Normal wear and tear.
- Misuse, abuse or installation outside manufacturer specifications.
- Improper maintenance or neglect.
- Unauthorised modification or repair.
- Use of non-genuine ASSA ABLOY parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or high humidity.
- Removal, refitment, transport or labour costs.
- Second-hand goods or products not originally sold through authorised Australian channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product to the authorised retailer from whom it was purchased where applicable.
- If claiming directly with ASSA ABLOY, contact customer service to obtain a Case Number.
- Securely package the product and include proof of purchase.
- Clearly mark the Case Number on the returned package.
Australian Consumer Law
Whitco warranties operate in addition to rights provided under the Australian Consumer Law. Goods come with guarantees that cannot be excluded under Australian law.
Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
Official Warranty Documents
Whitco Warranty Overview
Whitco branded products are manufactured by ASSA ABLOY Australia Pty Ltd and are covered by manufacturer warranties applicable to products sold in Australia. The warranty covers defects in material and workmanship subject to limitations, exclusions and proper installation and maintenance.
This summary outlines the key elements of Whitco warranty coverage. Full warranty terms, claim procedures and exclusions are detailed in the official Whitco warranty documentation.
Warranty Periods Summary
Finish & Material Notes
- Stainless steel is corrosion resistant but not stain-proof.
- Tea staining may occur if products are not cleaned and maintained in accordance with manufacturer recommendations.
- Cosmetic finish deterioration or appearance damage is not covered by warranty.
What the Warranty Covers
- Defects in materials and workmanship within the applicable warranty period.
- Assessment by ASSA ABLOY to determine whether warranty coverage applies.
- Repair, replacement with the same or closest equivalent product, or refund of purchase price at ASSA ABLOY's' discretion.
Common Warranty Exclusions
- Normal wear and tear.
- Misuse, abuse or installation outside manufacturer specifications.
- Improper maintenance or neglect.
- Unauthorised modification or repair.
- Use of non-genuine ASSA ABLOY parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or high humidity.
- Removal, refitment, transport or labour costs.
- Second-hand goods or products not originally sold through authorised Australian channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product to the authorised retailer from whom it was purchased where applicable.
- If claiming directly with ASSA ABLOY, contact customer service to obtain a Case Number.
- Securely package the product and include proof of purchase.
- Clearly mark the Case Number on the returned package.
Australian Consumer Law
Whitco warranties operate in addition to rights provided under the Australian Consumer Law. Goods come with guarantees that cannot be excluded under Australian law.
Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
