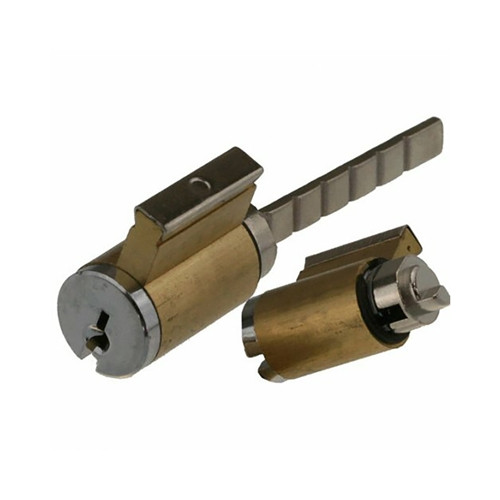

Whitco 5 Pin Cylinder Set 10KA - Suit Blaxland / Lawson Sliding Door Locks (W532100)
The Whitco W532100 5 Pin Cylinder Set is designed as a replacement or installation cylinder for Whitco Blaxland and Lawson sliding patio door locks. The cylinder set features a 5 pin configuration and is supplied in a 10 keyed alike configuration (10KA), allowing multiple locks to operate with the same key where required.
This cylinder set is commonly used when replacing worn or damaged cylinders in Whitco sliding door locksets or when matching new locks to an existing keyed system. It is designed specifically for compatibility with Whitco sliding door hardware systems used on aluminium and timber sliding doors.
Estimated Warehouse Dispatch: 7 business days
Non-Returnable Item: This product is a special order and is not returnable.
Key Features
- Replacement 5 pin cylinder set for Whitco sliding door locksets.
- Designed to suit Whitco Blaxland and Lawson sliding patio door locks.
- Supplied keyed alike in a 10 key alike configuration.
- Suitable for replacement or re-keying of Whitco sliding door locks.
- Compatible with common Whitco residential sliding door hardware.
Specifications
- Item Code: W532100
- Product Type: Sliding Door Lock Cylinder Set
- Cylinder Type: 5 Pin Cylinder
- Keying: 10 Keyed Alike (10KA)
- Compatibility: Whitco Blaxland and Whitco Lawson sliding door locks
- Application: Replacement cylinder for sliding door locksets
- Finish: No Finish
Frequently Asked Questions
What locks does the W532100 cylinder set suit?
The W532100 cylinder set is designed for Whitco Blaxland and Whitco Lawson sliding patio door locks. These locks use removable cylinders so worn or damaged cylinders can be replaced without replacing the entire lockset.
What does “10 keyed alike (10KA)” mean?
10KA means that up to ten locks supplied from the same batch share the same key pattern. This allows multiple sliding doors to be operated using a single key.
Can this cylinder be re-keyed by a locksmith?
Yes. The Whitco 5-pin cylinder uses a traditional pin-tumbler configuration and can typically be re-keyed by a locksmith to suit an existing key system.
Is this cylinder interchangeable with Whitco 10 disc cylinders?
No. Whitco sliding door locks may use either 5-pin cylinders or 10-disc cylinders depending on the model. These systems are not interchangeable.
Does the cylinder include a tailbar?
Yes. The cylinder set includes the correct tailbar configuration required to operate the locking mechanism inside Whitco Blaxland and Lawson lock bodies.
Additional Information
- Whitco sliding patio door locks such as the Blaxland and Lawson series are designed with replaceable cylinders to simplify maintenance and lock servicing.
- The 5-pin cylinder system allows locksmiths to create keyed-alike or master-keyed arrangements where multiple doors require controlled access.
- The internal tailbar transfers rotation from the key to the sliding door lock’s parrot-beak style deadlocking mechanism.
- Whitco sliding door locks use adjustable locking beaks and anti-lift features to improve security when the door is fully closed.
- When replacing cylinders, installers should confirm correct tailbar engagement to ensure smooth lock operation.
- Using genuine Whitco cylinder components helps ensure compatibility with Whitco lock housings and correct alignment with internal lock mechanisms.
Dimensions
Whitco 5 Pin Cylinder Set – Item Code Family
Whitco branded products are covered by a 10 Year manufacturer warranty against defects in materials and workmanship.
