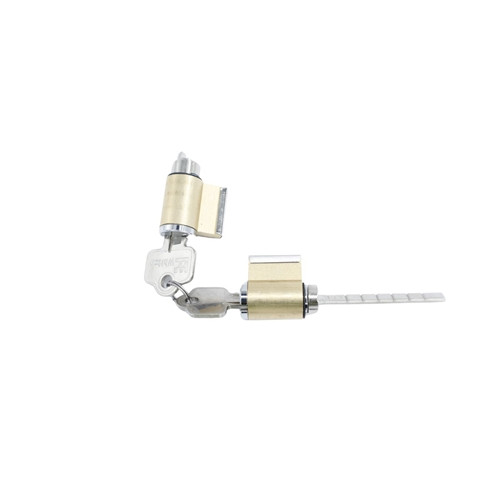

Whitco 5 Pin Cylinder Set 10KA - Code Cut Tailbar 33mm - Chrome Plate (W533800)
The Whitco W533800 5 Pin Cylinder Set is a replacement cylinder assembly designed for Whitco sliding door lock hardware. This version features a code cut tailbar with 33 mm projection and is supplied in a durable chrome plated finish.
The cylinder is supplied in a 10 key alike configuration (10KA), allowing multiple locks to operate with the same key where required. It is commonly used in Whitco sliding patio door lock systems including models within the Blaxland, Lawson and related Whitco sliding door hardware ranges. :contentReference[oaicite:0]{index=0}
Estimated Warehouse Dispatch: 7 business days
Non-Returnable Item: This product is a special order and is not returnable.
Key Features
- Whitco 5 pin cylinder set designed for sliding door lock hardware.
- Supplied keyed alike in a 10 key alike configuration.
- Code cut tailbar for compatibility with Whitco sliding door lock mechanisms.
- 33 mm tailbar length.
- Chrome plated cylinder finish.
- Commonly used for replacement or repair of Whitco sliding door locksets.
Specifications
- Item Code: W533800
- Product Type: Cylinder Set
- Cylinder Configuration: 5 Pin
- Keying: 10 Keyed Alike (10KA)
- Tailbar Type: Code Cut Tailbar
- Tailbar Length: 33 mm
- Finish: Chrome Plate
- Application: Whitco sliding door lock hardware
- EAN: 9311847854833
Frequently Asked Questions
What locks is the W533800 cylinder set designed for?
The W533800 cylinder set is designed for Whitco sliding door locksets including the Blaxland and Lawson series. These locks use removable cylinders allowing replacement without changing the entire lock body.
What does 10KA mean?
10KA stands for “10 keyed alike”. This means up to ten locks supplied from the same batch will operate using the same key. This configuration is often used in multi-door residential installations.
What is a code cut tailbar?
A code cut tailbar is pre-machined to the correct configuration required for Whitco sliding door lock mechanisms. The tailbar transfers rotation from the key cylinder to the internal locking beak mechanism.
Why is the tailbar length important?
The 33 mm tailbar length ensures correct engagement with the internal lock mechanism. Using the wrong tailbar length can prevent the lock from operating correctly.
Can locksmiths re-key this cylinder?
Yes. The Whitco 5 pin cylinder can typically be re-keyed by a locksmith to suit an existing key system if required.
Additional Information
- Whitco sliding door locks such as the Blaxland and Lawson series are designed with replaceable cylinders, allowing easy repair or re-keying without replacing the entire lockset.
- The 5 pin cylinder system provides flexibility for locksmiths to create keyed alike or master keyed configurations where required.
- Whitco sliding door locks use a parrot-beak style deadlocking mechanism which engages securely with the strike when the door is fully closed.
- The tailbar inside the cylinder transfers rotational movement from the key to the lock mechanism, allowing the locking beak to extend or retract.
- Using genuine Whitco cylinder components helps ensure correct fit, smooth operation and compatibility with Whitco sliding door lock housings.
- When replacing cylinders, installers should verify tailbar length and orientation to ensure correct operation of the sliding door lock.
Dimensions
Whitco 5 Pin Cylinder Set – Item Code Family
Whitco branded products are covered by a 10 Year manufacturer warranty against defects in materials and workmanship. :contentReference[oaicite:1]{index=1}
- Pneumatic door closers: 12 months
- Keys: 12 months
- Finishes and cosmetic damage: excluded
- Removal, refitment and labour: excluded
Whitco Warranty Overview
Whitco branded products are manufactured by ASSA ABLOY Australia Pty Ltd and are covered by manufacturer warranties applicable to products sold in Australia. The warranty covers defects in material and workmanship subject to limitations, exclusions and proper installation and maintenance.
This summary outlines the key elements of Whitco warranty coverage. Full warranty terms, claim procedures and exclusions are detailed in the official Whitco warranty documentation.
Warranty Periods Summary
Finish & Material Notes
- Stainless steel is corrosion resistant but not stain-proof.
- Tea staining may occur if products are not cleaned and maintained in accordance with manufacturer recommendations.
- Cosmetic finish deterioration or appearance damage is not covered by warranty.
What the Warranty Covers
- Defects in materials and workmanship within the applicable warranty period.
- Assessment by ASSA ABLOY to determine whether warranty coverage applies.
- Repair, replacement with the same or closest equivalent product, or refund of purchase price at ASSA ABLOY's' discretion.
Common Warranty Exclusions
- Normal wear and tear.
- Misuse, abuse or installation outside manufacturer specifications.
- Improper maintenance or neglect.
- Unauthorised modification or repair.
- Use of non-genuine ASSA ABLOY parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or high humidity.
- Removal, refitment, transport or labour costs.
- Second-hand goods or products not originally sold through authorised Australian channels.
Warranty Claim Process
- Retain proof of original purchase.
- Return the product to the authorised retailer from whom it was purchased where applicable.
- If claiming directly with ASSA ABLOY, contact customer service to obtain a Case Number.
- Securely package the product and include proof of purchase.
- Clearly mark the Case Number on the returned package.
Australian Consumer Law
Whitco warranties operate in addition to rights provided under the Australian Consumer Law. Goods come with guarantees that cannot be excluded under Australian law.
Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. Where a product fails to meet acceptable quality standards and the failure does not amount to a major failure, the customer is entitled to repair or replacement.
