Lockwood 5782KIT01 Narrow Mortice Double Cylinder

Lockwood 5782KIT01 Narrow Mortice Double Cylinder

Lockwood

$858.02 - $1,029.61
(No reviews yet) Write a Review
SKU:
STK 5782KIT01Parent
UPC:
2321219350981
Adding to cart… The item has been added

Lockwood 5782KIT01 — Narrow Mortice Lock Double Cylinder Kit

The Lockwood 5782KIT01 is a Selector® 5782 Series narrow mortice lock kit supplied with a double cylinder configuration. Designed with a 30 mm short backset, it is ideal for aluminium and narrow stile commercial doors where dual-cylinder security is required. Available in Satin Chrome (SC) and Matt Black (MBK) finishes, this kit ensures fire-rated compliance, durable deadlatching performance, and compatibility with Lockwood restricted and master key systems.

Delivery truck icon Estimated Warehouse Dispatch: 6 Days
Caution icon Non-Returnable Item: This product cannot be returned once purchased

Key features icon Key Features

  • Narrow mortice lock kit supplied with a double cylinder configuration.
  • 30 mm short backset designed for aluminium and narrow stile doors.
  • Available finishes: Satin Chrome (SC) and Matt Black (MBK).
  • Deadlatching bolt with auxiliary latch for secure operation.
  • Compatible with Lockwood 570 oval cylinders, restricted and master key systems.
  • In-door configuration with red/green selector under the faceplate.
  • Fire rated and compliant with Australian Standards.

Fire rating icon Fire Rated

  • Tested up to 4 hours on compliant fire door assemblies (AS 1905.1).

Specifications icon Specifications

  • Item Code: 5782KIT01
  • Variants: 5782KIT01SC (Satin Chrome), 5782KIT01MBK (Matt Black)
  • Function: Narrow mortice lock kit with double cylinder configuration.
  • Backset: 30 mm short backset.
  • Finish Options: Satin Chrome (SC), Matt Black (MBK).
  • Door Thickness: 32–50 mm standard; extension kits available.
  • Bolt: 15 mm stainless steel latch with auxiliary deadlatch.
  • Case: Zinc alloy lock body with stainless steel chassis.
  • Compliance: AS4145.2 (Durability D8, Security S7); AS1905.1 (Fire Doors).

Contents icon What's In The Box

  • 1 × Lockwood 5782 mortice lock body (30 mm backset)
  • Brass furniture set (finish matched)
  • 2 × Cylinders (double cylinder configuration, finish matched)
  • 1 × Strike plate (finish matched)
  • 1 × Faceplate (finish matched)
  • Fixing screws
  • Installation instructions

Finish options icon Available Finish Options

  • Satin Chrome (SC)
    Satin Chrome
    5782KIT01SC
  • Matt Black (MBK)
    Matt Black
    5782KIT01MBK

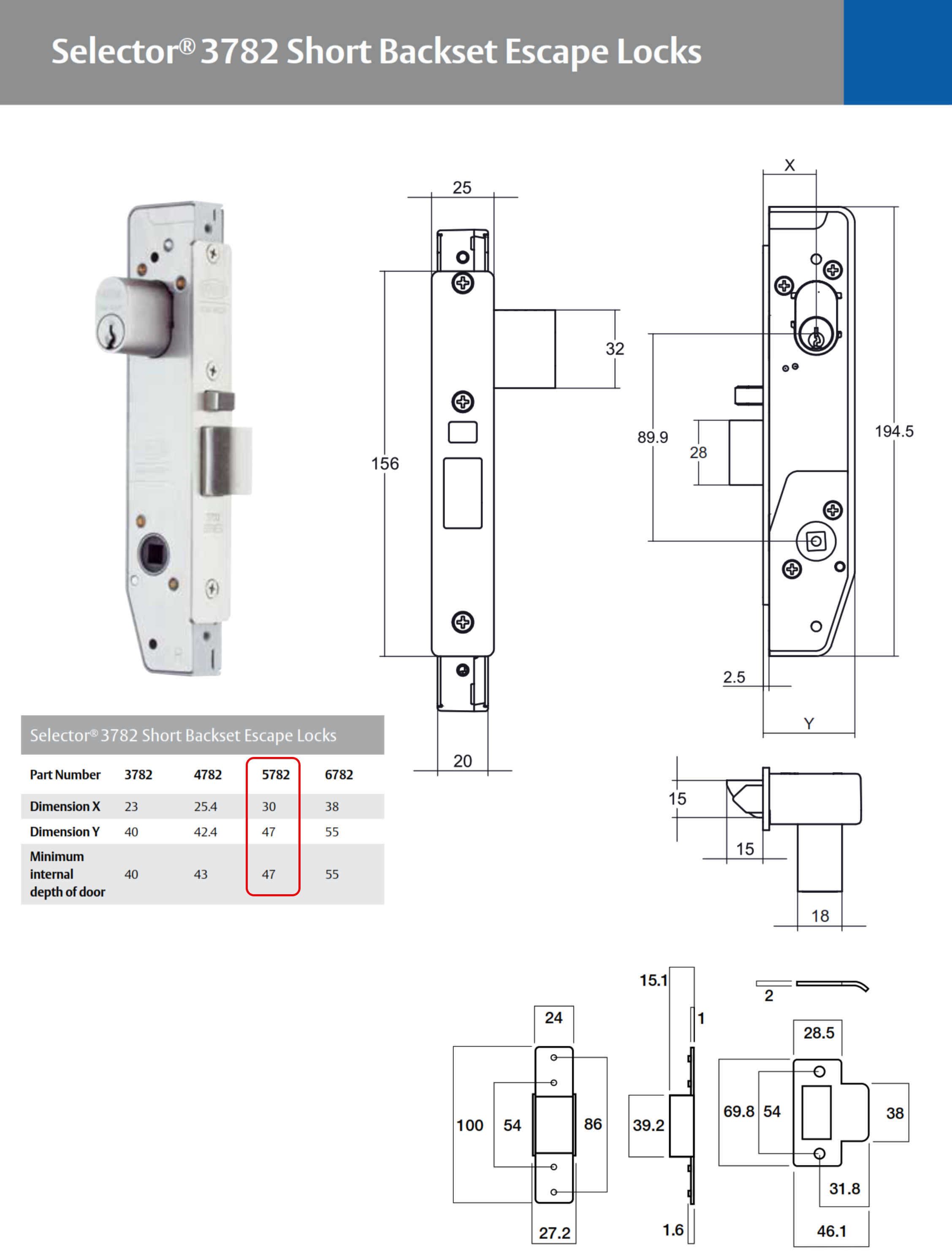

Product code list icon Selector® 5782 Short Backset Escape Locks — Item Code Family (30 mm Backset)

Item Code Function Description
5782 Escape Lock (Primary) Short backset mortice escape lock, 30 mm backset. Inside handle always free; outside handle rigid.
5782V Anti-vandal Escape Outside opened by handle when unlocked; outside key locks/unlocks and retracts latch; inside always free.
5782VT Anti-vandal + Turn Cylinder outside, turn inside; inside always free; outside key locks/unlocks and retracts latch.
5782X Key Entry Escape Outside opened by key at all times (handle rigid); inside handle always free.
5782XT Key Entry + Turn Outside opened by key; inside by handle/turn; inside always free; outside key locks outside handle.
5782-V Internal Cylinder Inside handle always free; inside key locks/unlocks outside handle and retracts latch after unlocking.
5782-T Internal Turn Inside handle always free; internal turn locks/unlocks outside handle.
5782XV Key Entry, Double Cylinder Outside key entry at all times; inside always free; inside key locks/unlocks outside handle and retracts latch.
5782TA Anti-lockout + Turn Prevents accidental lockout; inside turn; outside handle operable when unlocked; inside always free.
5782VTA Anti-lockout Anti-vandal + Turn Cylinder outside, turn inside; combines anti-vandal control with anti-lockout reset.

Accessories icon Selector® 5782 — Accessories & Spares (Short Backset Platform, 30 mm Backset)

Item Code Description Notes
3782-FINKITAC / AG / AU / AZ / BU / CP / ORB / PB / SB / SBU Alternative Finish Kits Strike + faceplate + faceplate screws. Suitable for 30 mm 5782 (not suitable only for 25.4 mm 4782).
3782-TFKITSS / CP / PB Timber Door Fixing Kit Converts aluminium-fix short-backset case for timber doors. Suitable for 5782 (not suitable for 25.4 mm 4782).
3782-2100SS / 3782TF-2100SS ES2100 Electric Strike Faceplates DPS-capable with Lockwood ES2100 strikes. TF plate suits timber fix; 3782-2100SS can be used directly with 3782SS primary.
3782-STK32XX / 3782-STK74XX Standard & Long Lip Strikes 32 mm lip (SS/CP/PB) and 74 mm lip (SS only). XX = finish.
3782-FSTK32SS / 3782-FSTK64SS Fabricator Strikes Stainless “D” strikes for fabricator installations (32/64 mm lips).
3782-RFSTKCP / SC / PB Retrofit Strike Kits Replacement strike sets for existing installs; finish matched.
3782-STKBOX Strike Box (Pk=10) Box cavity behind strike for cleaner latch engagement.
5782-RK##SS / 5782-RK##CP / 5782-RK##PB Rebate Kits (30/38 mm backsets) For 13 mm rebated timber doors; specify handing (## = ACW/CW). Designed for 5782.
3782-SECKIT Security Faceplate Screw Kit TR20 tamper-resistant screws for strike/faceplate security.
SP3570-5018 / -5228 / -5238 / -5258 Extended Spindles Door thickness coverage approx. 32–200 mm (variant dependent).
SP3700/X7CAM X7 Cam (Latching) Retracts latch; interfaces with locking bar.
SP3700/VCAM V Cam (Locking) Locks/unlocks bar; retracts latch after unlocking.
3770M1-ADAPTOR Latching/Turn Adaptor (MkI) Required where an adaptor is specified on short-backset 3780/4782/5782/6782.
3782-DXKITSC DX Mechanical Digital Kit Codepad + plate + spindle + adaptor (furniture ordered separately).
3782-DXKOKITSC DX Digital with Key Override Kit Includes lower cylinder provision; suits door thickness 43–46 mm.
3787-KIT570E Dual Entry Conversion Kit Lower cylinder plate + spindle cam + screws (two cylinders outside).

.

Warranty icon Warranty

  • Lockwood 25 Year Mechanical Warranty covers mechanical components and workmanship under normal use and correct installation.
  • Electronic and electrical components are covered for 3 years (PADDE & electric mortice locks 5 years, batteries excluded).
  • Keys are covered for 12 months.
  • Finish warranty varies by finish type and exposure — e.g. Everbrass 25 years; Stainless/Chrome/Anodised 10 years; PVD/VIVID 10 years; Symmetry range 5 years; decorative finishes such as bronze, antique and powdercoat 2 years (natural brass ageing excluded).
  • Warranty excludes misuse, improper installation, modification, or failure to maintain as specified.

PDF icon Download PDF Resources

PDF icon Lockwood Selector 3700 Series Mortice Locks Catalogue
PDF icon Lockwood Selector 3700 Series Mortice Locks Service Manual
PDF icon Lockwood 25 Year Mechanical Warranty (Conditions Apply)

!
