Lockwood 4801 Sq End Plt Cyl Hole 122 Lvr

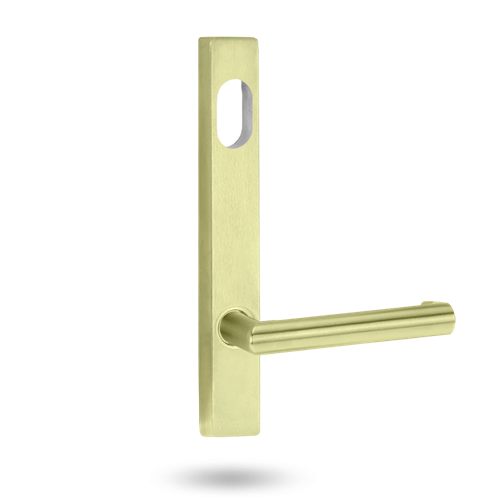

4801 Square End Plate with Cylinder Hole and 122 Lever
Estimated Warehouse Dispatch: 6 Days
***Non-Returnable Item*** Lockwood 4800 Series Square End Narrow Plate Brass Furniture
Lockwood Brass Plate furniture is made from the highest quality materials and is available in a comprehensive array of levers in a range of superb finishes that provide complete freedom of choice.The Lockwood Brass Door Furniture range is the culmination of decades of experience in the design and manufacture of high quality door furniture.
Over the years the Lockwood brass door range has evolved as the product of choice for leading architects in commercial, institutional and industrial applications.
A distinctly modern approach combining elegant lines and an offset lever action give the Lockwood Lever 122 its unique appeal.
The Lockwood Lever 122 is an asymmetrical design and therefore must be handed.
The Lockwood 4800 Series
Key Features
- a classic rectangular plate with bevelled edges suiting corporate, commercial and public spaces with high use requirements. Designed for use with Lockwood Synergy 3580 and Selector 3780 Series Mortice Locks. Additionally there are functions that are designed to work with Lockwood 3540 Series short backset mortice deadbolts.
- Features Lockwood lever 122.
- External plate with concealed fixing (screws included).
- Cylinder hole (cylinder not included).
- Left handed.
- Supplied in trade pack.
- Plate Dimensions.
- Height: 185mm.
- Width: 26mm.
- Depth: 11.5mm.
- Cylinder pitch: 89.9mm.
- Fixing centres: 160mm.
- Lever Dimensions.
- Length: 130.5mm.
- Projection: 59mm.
- Finger clearance: 40mm.
- When using plate configurations that feature turns a unique mechanism is employed that automatically adjusts the length of the tail bar to suit a particular door thickness.
- Handing.
- Levers of asymmetrical design cannot be reversed. Specify left or right handed when ordering.
- Fixing.
- Plates are designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.External plates are supplied with fixing screws to suit door thickness between 32mm and 50mm.
- Warranty: 25-year mechanical warranty.
