Lockwood 3700 Series Locking Turn Adaptor Assembly (Box of 10)

Lockwood 3700 Series Locking Turn Adaptor Assembly (Box of 10)

Lockwood

Was: $258.19
Now: $190.06
(No reviews yet) Write a Review
SKU:
STK 3772-ADAPTOR
UPC:
9340116028248
Adding to cart… The item has been added

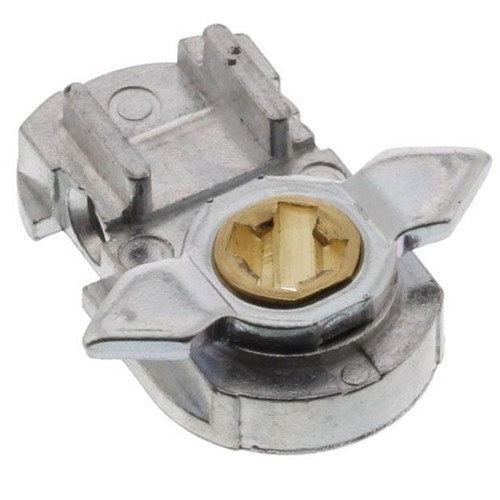

Lockwood 3772-ADAPTOR — Turn/Latching Adaptor for Selector 3770/3772 MkII Mortice Locks

The Lockwood 3772-ADAPTOR is the factory adaptor used inside the Selector® 3770/3772 MkII mortice lock platform to couple a cylinder or internal turn to the lock’s locking bar and latch train. It is the enabling component for many 3772 escape-lock functions (e.g., with internal turnknob or additional cylinder control) and is required wherever a turn adaptor is specified. This MkII adaptor is purpose-designed for the current Selector case and is not backwards compatible with MkI locks.

Delivery truck icon Estimated Warehouse Dispatch: 2 Days

Key features icon Key Features

  • MkII turn/latching adaptor for Selector® 3770/3772 MkII mortice locks.
  • Interfaces the cylinder/turn to the lock’s internal locking bar for controlled latch retraction and locking.
  • Required for 3772 variants using an internal turn (e.g., 3772-T, 3772VT, 3772XT, privacy/escape sub-functions).
  • Works in conjunction with X7 cam (latching) and V cam (locking) selections to realise specific functions.
  • Through-fix compatible with the MkII case design; installs under the faceplate for in-door configuration.

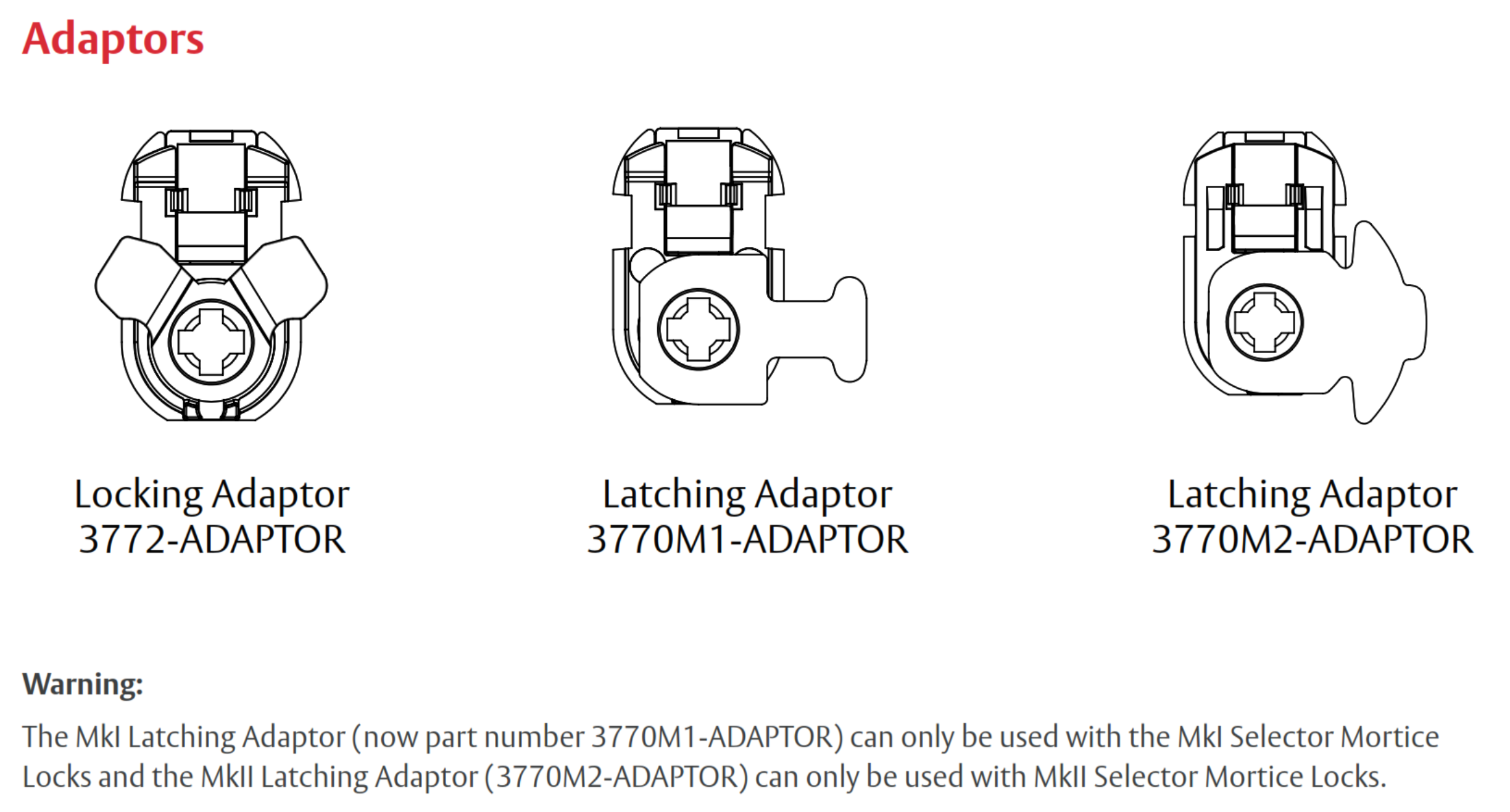

  • Platform integrity: not compatible with MkI Selector locks (use 3770M1-ADAPTOR for MkI).

Specifications icon Specifications

  • Item Code: 3772-ADAPTOR
  • Compatibility: Selector® 3770/3772 MkII mortice lock cases (escape/combination/privacy functions as specified).
  • Associated cams: SP3700/X7CAM (X7 cam), SP3700/VCAM (V cam) — function-dependent.
  • Install location: Under faceplate, attaches to the MkII case using the lock’s slip-pin retention.
  • Backset impact: None — follows the chosen lock case (60/89/127 mm for 3770 series; short-backset uses different adaptor).
  • Compatibility note: Not backwards compatible with MkI (use 3770M1-ADAPTOR on MkI).

Suitable uses icon Suitable Uses

  • Configuring 3772 escape-lock variants that require an internal turn or additional cylinder control.
  • Field-setting of functions on MkII Selector cases without replacing the lock body.
  • Standardising spares: one MkII case + correct cam/adaptor supports multiple site functions.

Book icon Additional Information

  • Function realisation depends on the cam choice (X7 vs V) and the presence of turn/cylinder hardware.
  • For short-backset Selector (3780 series), a different adaptor is used; do not substitute across platforms.
  • When used on fire-rated doors, ensure the overall doorset and function configuration remain compliant.

Product code list icon Selector® 3772 MkII Escape Locks — Item Code Family

Item Code Function Description
3772 / 4772 / 5772 Escape Lock (Primary) Base mortice escape lock, 60 / 89 / 127 mm backset. Inside handle always free, outside handle rigid.
3772V Anti-vandal Escape Lock Outside opened by key when unlocked; inside always free.
3772VT Anti-vandal Escape Lock + Turn Cylinder outside, turn inside; inside always free.
3772X Key Entry Escape Lock Outside opened by key at all times; inside handle always free.
3772XT Key Entry Escape Lock + Turn Outside opened by key; inside opened by turn or handle.
3772-V Escape Lock with Internal Cylinder Inside: handle always free; key inside locks/unlocks outside handle.
3772-T Escape Lock with Turn Inside: handle always free; turnknob locks/unlocks outside handle.
3772VV Anti-vandal Escape Lock with Internal Cylinder Double cylinder; outside key locks/unlocks handle; inside key also operates bolt.
3772XV Key Entry Escape Lock with Internal Cylinder Double cylinder; outside key entry at all times; inside always free.
3772-TA Anti-lockout Escape Lock + Turn Turn inside; outside handle operable when unlocked. Prevents accidental lockout.
3772VTA Anti-lockout, Anti-vandal Escape Lock + Turn Cylinder outside, turn inside; anti-vandal and anti-lockout functions combined.
3772V-H Holdback Anti-vandal Escape Lock Latch can be held in; outside key locks/unlocks; inside always free. Not fire door rated.
3772XVH Holdback Key Entry Escape Lock with Internal Cylinder Double cylinder; holdback function; inside always free. Not fire door rated.
3772VTH Holdback Anti-vandal Escape Lock + Turn Cylinder outside, turn inside; holdback enabled. Not fire door rated.

Accessories icon Selector® 3772 MkII Escape Locks — Accessories & Spares

Item Code Description Notes
3772-FINKITCP / PB / PC Alternative Finish Kits Includes strike, faceplate & screws. CP=Chrome Plate, PB=Polished Brass, PC=Powdercoat.
3772-RK32XX / 3772-RK46XX Fire Rated Rebate Kits Suits 13 mm rebates. Lip lengths 32 mm or 46 mm. Finishes: SS, CP, PB.
3772-AFKITSS / CP / PC Aluminium Door Fixing Kit Converts timber fix to aluminium door fixing. 156×25 mm faceplate. Finishes: Stainless, Chrome Plate, Powdercoat.
3772-STK25 / STK32 / STK43 / STK47 / STK60 Short / Extended Lipped Strikes Lip lengths 25–60 mm. Finishes: SS, CP, PB. (STK60 only in SS).
3772-2100SS / 3772AF-2100SS ES2100 Electric Strike Faceplates Suits Selector® 3770 Series. AF version for aluminium fixing. For monitored electric strikes.
3772-SECKIT Security Faceplate Screw Kit Includes 2 × tamper resistant TR20 torx drive screws.
SP3570-5018 / -5228 / -5238 / -5258 Extended Spindles For thicker doors (32–200 mm). Supplied individually or in packs.
SP3700/X7CAM X7 Cam Latching cam. Retracts latchbolt, locks/unlocks locking bar.
SP3700/VCAM V Cam Locks/unlocks locking bar, retracts latch bolt after unlocking.

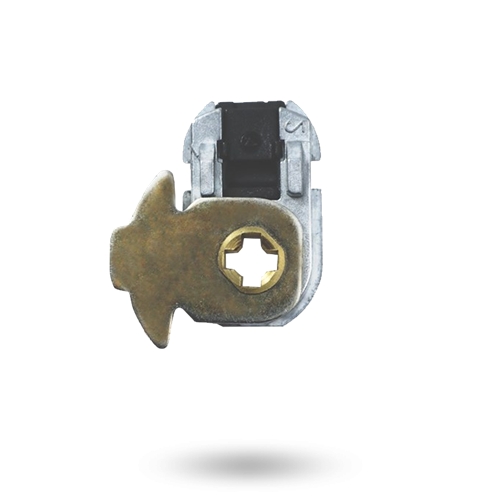

3770M2-ADAPTOR Latching/Turn Adaptor Adaptor for MkII mortice locks. Not backwards compatible with MkI.
3772-DXKITSC DX Digital Conversion Kit Includes digital codepad, mounting plate, spindle, screws, and latching adaptor.
3772-DXKOKITSC DX Digital with Key Override Kit As above, with lower cylinder assembly for key override.
3777-KIT Dual Entry Conversion Kit Lower cylinder mounting plate, spindle cam & screws. Converts 3772 to dual entry (two cylinders outside).

Warranty icon Warranty

  • Lockwood 25 Year Mechanical Warranty covers mechanical components and workmanship under normal use and correct installation.
  • Electronic and electrical components are covered for 3 years (PADDE & electric mortice locks 5 years, batteries excluded).
  • Keys are covered for 12 months.
  • Finish warranty varies by finish type and exposure — e.g. Everbrass 25 years; Stainless/Chrome/Anodised 10 years; PVD/VIVID 10 years; Symmetry range 5 years; decorative finishes such as bronze, antique and powdercoat 2 years (natural brass ageing excluded).
  • Warranty excludes misuse, improper installation, modification, or failure to maintain as specified.
