Lockwood 2616 / Electromechanical Sngl Door Closer
2616 Series Electromechanical Single Door Closer
Estimated Warehouse Dispatch: 2 Days
Lockwood Electromechanical Hold-Open Device for Single Doors
The Lockwood 2616EMC is a small single door electromechanical hold open device system with a sliding arm.
It is applicable for places, where fire doors are constantly kept open.
The door is kept open at a selected angle.
If fire breaks out, the door is closed, preventing smoke and flames from spreading.
Applications for the Lockwood 2616EMC include hotels, office buildings and other fire doors where hold open function is needed.
Key Features
- Compact modern design to suit single door installations.
- Flexibility installation.
- Easy to install on narrow frames (40mm).
- One unit suits both push side and pull side.
- Maximum door width 1400mm.
- Maximum opening angle 130 degrees.

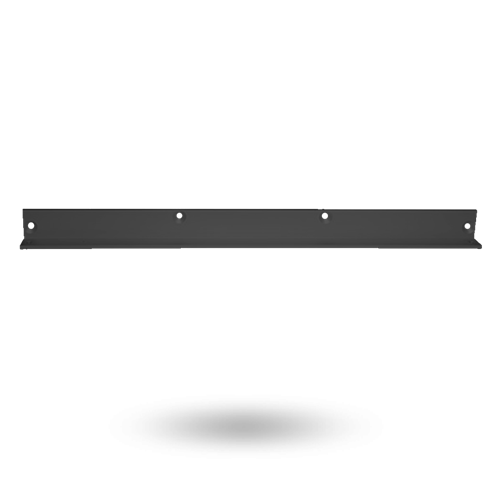

- For Push side applications add FD2616-116SIL angle bracket.
- Supplied in trade pack.
- Fire Rated.
- The Lockwood 2616EMC Door Control System has been successfully fire tested up to 4 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 - Part 1: Fire Resistant Doorsets.
- Single Door Function.
- The door is held open by hold-open device at the selected angle. When the power is switched off, e.g. when smoke detectors react to smoke, the door closes. Hold-open angle for active door can be adjusted from 70 degrees to 130 degrees. Power consumption 1 x 60 mA (24VDC).
- Warranty: 25-year mechanical warranty.
