Lockwood 224 Series Exterior Plate And Lever SSS
224 SERIES EXTERIOR PLATE AND LEVER Satin Stainless
Estimated Warehouse Dispatch: 11 Days
***Non-Returnable Item***

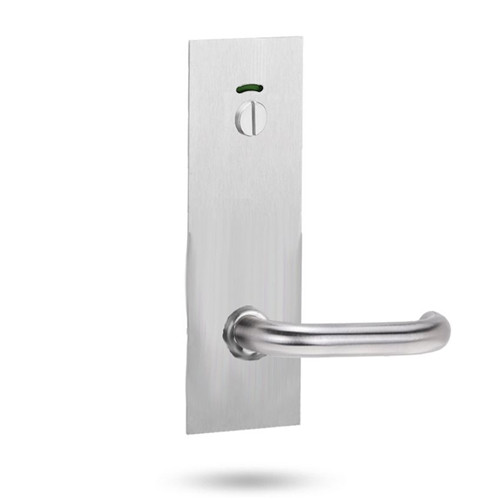

Lockwood 224 Series Artefact Rectangular Plate Door Furniture
The Lockwood 224 Series Door Furniture is stainless steel plate furniture with square ends.
Concealed fixed plates have studs with internal threads located top and bottom, whilst visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.
The timeless design of this tubular shaped lever signifies quality and strength.
Application
Designed for use with Lockwood 3770 Selector and 3570 Synergy Series Mortice Locks.
Key Features
- Lockwood lever 70.
- External plate.
- Lever only.
- Cylinder pitch 64mm.
- Fixing centres 148mm.
- Concealed fixings.
- Non-handed.
- Manufactured from stainless steel.
- Suits door thickness from35mm to 45mm as standard.
- For doors 45 to 55mm thick, specify long fixing screws SP2000-208.
- Supplied in trade pack.
- Dimensions.
- Height: 162mm.
- Width: 50mm.
- Depth: 2mm.
- Lever Dimensions.
- Length: 121mm.
- Projection: 53mm.
- Finger clearance: 37mm.
- Warranty: 25-year mechanical warranty.
