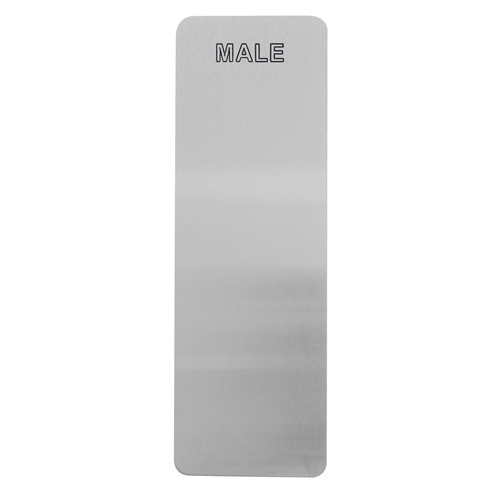

Lockwood 214 Exterior Plate Male Symbol Outline SSS
214 EXTERIOR PLATE MALE SYMBOL OUTLINE Satin Stainless
Estimated Warehouse Dispatch: 11 Days
***Non-Returnable Item***
Lockwood 214 Series 10mm Radius Corner Push and Pull Plates
Suitable for use in public, commercial, industrial and institutional buildings, where there is a need for high grade and durable fittings.
The Push and Pull range of door furniture plates offers a selection of functions with engraving available to suit most requirements.
The 214 Series Door Furniture is 300 x 100 x 2mm thick stainless steel or brass plates with 10mm radius corners.
Concealed fixed plates have studs with internal threads located in each corner, visible plates have corresponding countersunk holes and are fixed back to back through the door.
Application
Designed for use with Lockwood Synergy 3570 and Selector 3770 Series Mortice Locks
Key Features
- External plate only.
- Concealed fixing with screws.
- Male symbol.
- Non-handed.
- Fire rated up to 2 hours.
- Supplied in trade pack.
- Plate Dimensions.
- Plate dimensions: 300mm x 100mm x 2mm.
- Cylinder pitch: 64mm.
- Materials.
- Aluminium / Brass / Stainless Steel.
- Door Thickness.
- 35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.
- When using flush pulls back to back the minimum door thickness is 40mm.
- Warranty: 25-year mechanical warranty.
