Whitco Lawson™ Sliding Patio Door Lock — Double Cylinder, Offset Outer Pull, Black (W505417)
The Whitco Lawson™ W505417 is a double cylinder sliding patio door lock featuring an offset polymer outer pull in Black. Supplied with 10 disc double cylinders keyed alike (10KA), universal strike and 43 mm screws. Suitable for residential aluminium or timber sliding doors.
Estimated Warehouse Dispatch: 6 Days
Non-Returnable Item: This product cannot be returned once purchased
Key Features
- Polymer slimline pull mounted to a metal lock base, with polymer external pull.
- Double cylinder configuration with 10 disc cylinders keyed alike (10KA).
- Offset outer pull in Black finish.
- Supplied with universal strike and 43 mm screws.
- Non-handed design — suits left or right-hand sliding doors.
- Standard 82 mm fixing holes with central turnbar hole for external cylinders.
- Integral anti-lift pins prevent lifting the door out of its track.
- Adjustable stainless steel locking beak with 6 mm closing adjustment.
- Self-retracting beak prevents accidental lockout and damage.
Specifications
- Item Code: W505417
- Family: Lawson™ Sliding Patio Door Lock
- Function: Double Cylinder
- Outer Pull: Offset polymer, Black

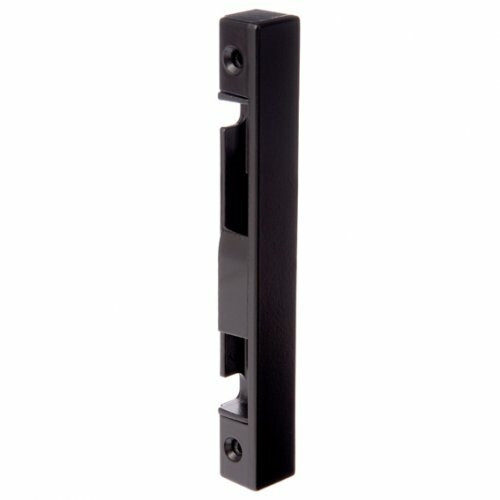

- Strike: Universal strike included
- Cylinder Type: 10 Disc, keyed alike (10KA)
- Screw Length: 43 mm
- Door Compatibility: Aluminium and timber sliding doors
- Handing: Non-handed
- Standards: Tested to Australian Standard
Dimensions
Frequently Asked Questions
What cylinder type is supplied with the W505417?
The W505417 is supplied with Whitco 10 disc cylinders configured as a keyed-alike pair (10KA). Disc cylinders are commonly used in sliding patio locks for smooth operation and durability.
Does this model include a strike plate?
Yes. The W505417 variant is supplied with a Whitco universal strike, allowing installation on a wide range of sliding door frame profiles.
Can the lock be installed on either sliding direction?
Yes. The Lawson sliding patio door lock is non-handed and can be installed on both left-hand and right-hand closing sliding doors.
Is this lock suitable for timber and aluminium doors?
Yes. Whitco Lawson locks are designed for residential aluminium or timber sliding patio doors.
Additional Information
- The Lawson™ sliding patio door lock uses Whitco’s adjustable stainless steel locking beak which allows up to 6 mm of closing adjustment to accommodate door movement and wear.
- Integral anti-lift pins help prevent attempts to lift the sliding door panel out of the track.
- The self-retracting beak design helps prevent accidental lockout or damage if the door is closed while the lock is engaged.
- The supplied universal strike allows flexible installation across different door frame configurations.
- Correct roller adjustment and door alignment are important to ensure smooth locking operation and reliable beak engagement.
