Interlock 230 V Low Friction Stay – Black Powdercoated (P509B)
The Interlock 230 V is a low-friction 4-bar friction stay designed for projected top hung (PTH) window sashes in residential applications.
Manufactured from extruded aluminium and finished in black powdercoat, the A-Series friction hinge range provides controlled sash support without the use of sliding channels. This model is supplied as a pair and forms part of the broader Interlock A-Series mechanical hinge family.
This product is a friction stay only. Window control mechanisms, restrictors and frame hardware are not included.
18 Days
Key Features
- Low friction function type (V model).
- 4-bar friction stay construction.
- Manufactured from extruded aluminium.
- No sliding channels.
- Unique “pull-in” feature.
- Black powdercoated finish.
- Supplied in trade pack as a pair.
Suitable Uses
- Projected Top Hung (PTH) window sashes.
- Residential window applications.
- Timber and metal frame installations.
Full Specifications
Item Code Family – A Series Friction Hinges
Frequently Asked Questions
Is this hinge adjustable?
No. Friction levels are factory set.
Is this fire rated?
No fire rating is stated by the manufacturer.
Does this suit side-hung windows?
No. Designed for projected top hung windows only.
Additional Information
- Confirm sash weight before selecting hinge model.
- For heavier sashes, refer to 330A, 420HD A or 500A models.
- No corrosion class or compliance certification stated in technical flyer.
Covered under official ASSA ABLOY warranty terms.
View full warranty details.

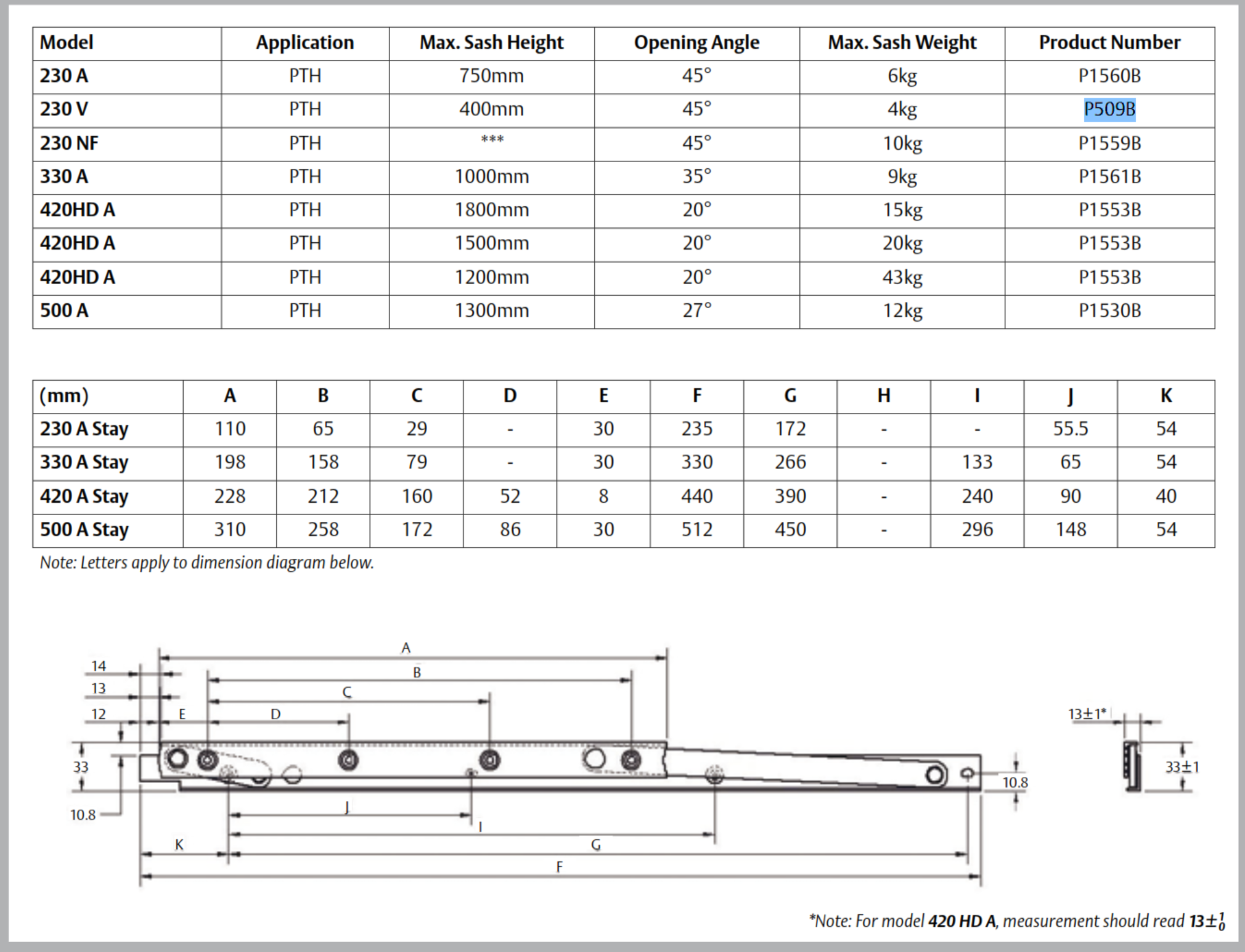

Dimensions
All dimensions shown are in millimetres. Refer to the manufacturer diagram for full A–K measurement references.
